TUNE YOUR RIDE
C
B
A
mmo2006-003-022_a

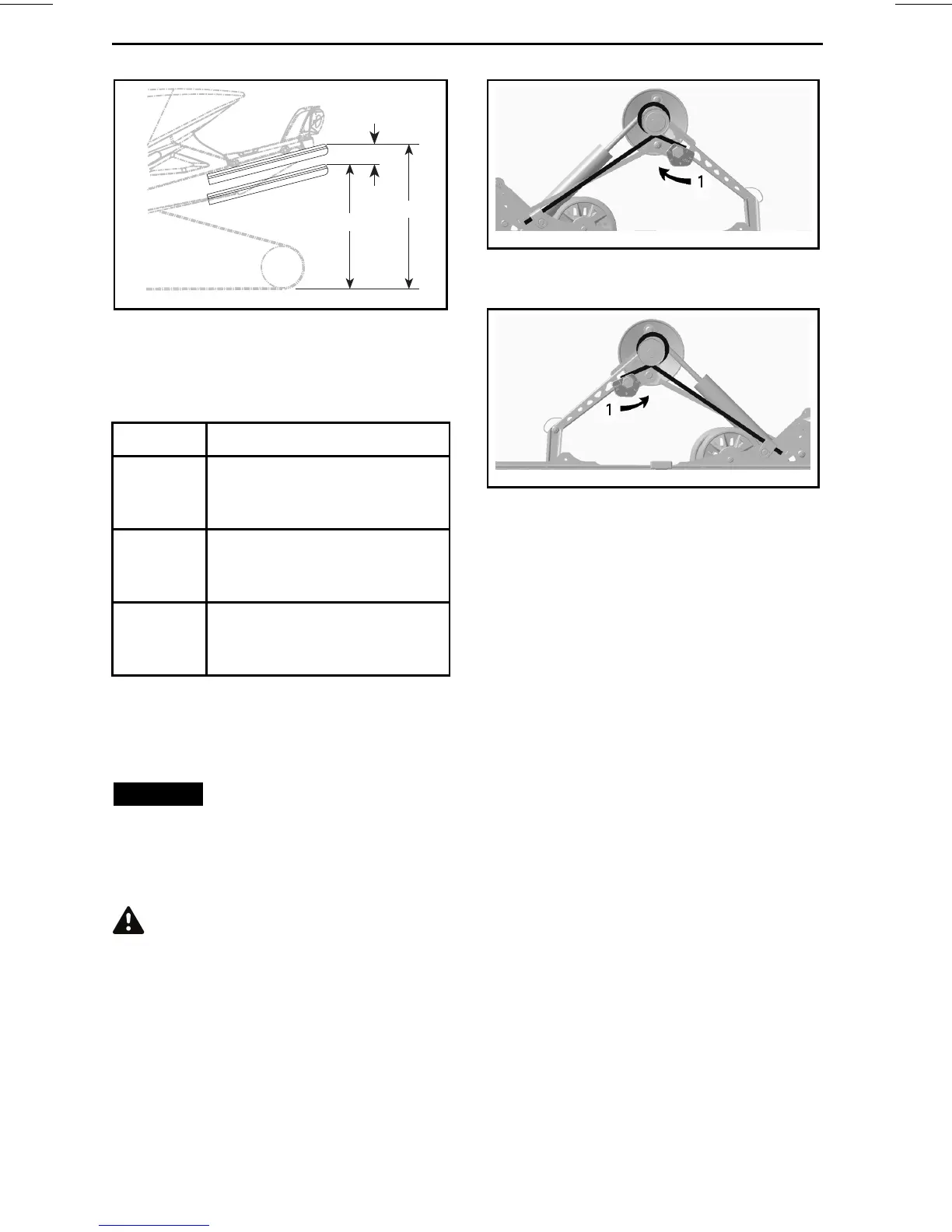

TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. S uspension has co llapsed with driver,
passenger(s) and load added
C. D istance between dimension “A” and “B”,
see table below
”C” WHAT TO DO
50 to
75 mm
(2 to 3 in)
No adj ustme nt requi red
More than
75 mm
(3 in)
Adjusted too soft,
increase preload
Less than
50 mm
(2 in)
Adjusted too firm,
decrease preload
NOTE: If the specification is unattain-
able with the original springs, see an
authorized S ki-Doo dealer f or o t he r
available springs.
NOTICE
To increase spring
preload, always turn the left side
adjustment cam i n a clockwise d i-
rection, and the right side cam in a
count erclockwis e directio n.
CAUTION Never set preload
cams directly from position 5 to 1 or
directly from po s ition 1 to 5.
The adjustment cams have 5 different
settings, 1 being the softest.
mmo2007-009-006_a
TYPICAL — LH SIDE
1. Adjust spring preload
mmo2007-009-007_a
TYPICAL — RH SIDE
1. Adjust spring preload
Rear Shock Absorber
SC-5U with ACS
The operator can adjust the comfort
and ride height by adjusting the air
pressure inside the air shock absorber.
To adjust, proc eed as follows:
1. S t art engin e.
2. Press the M ODE (M) button to se-
lect suspension mode.
When the air suspension mode is se-
lected, AIR_SUSP is displayed. The
display also shows the actual suspen-
sion setting ( a number from 1 to 5, 1
being the softest setting).
3. Depress the heated throttle lever
switch as shown to increase or de-
crease air pressure.
80
