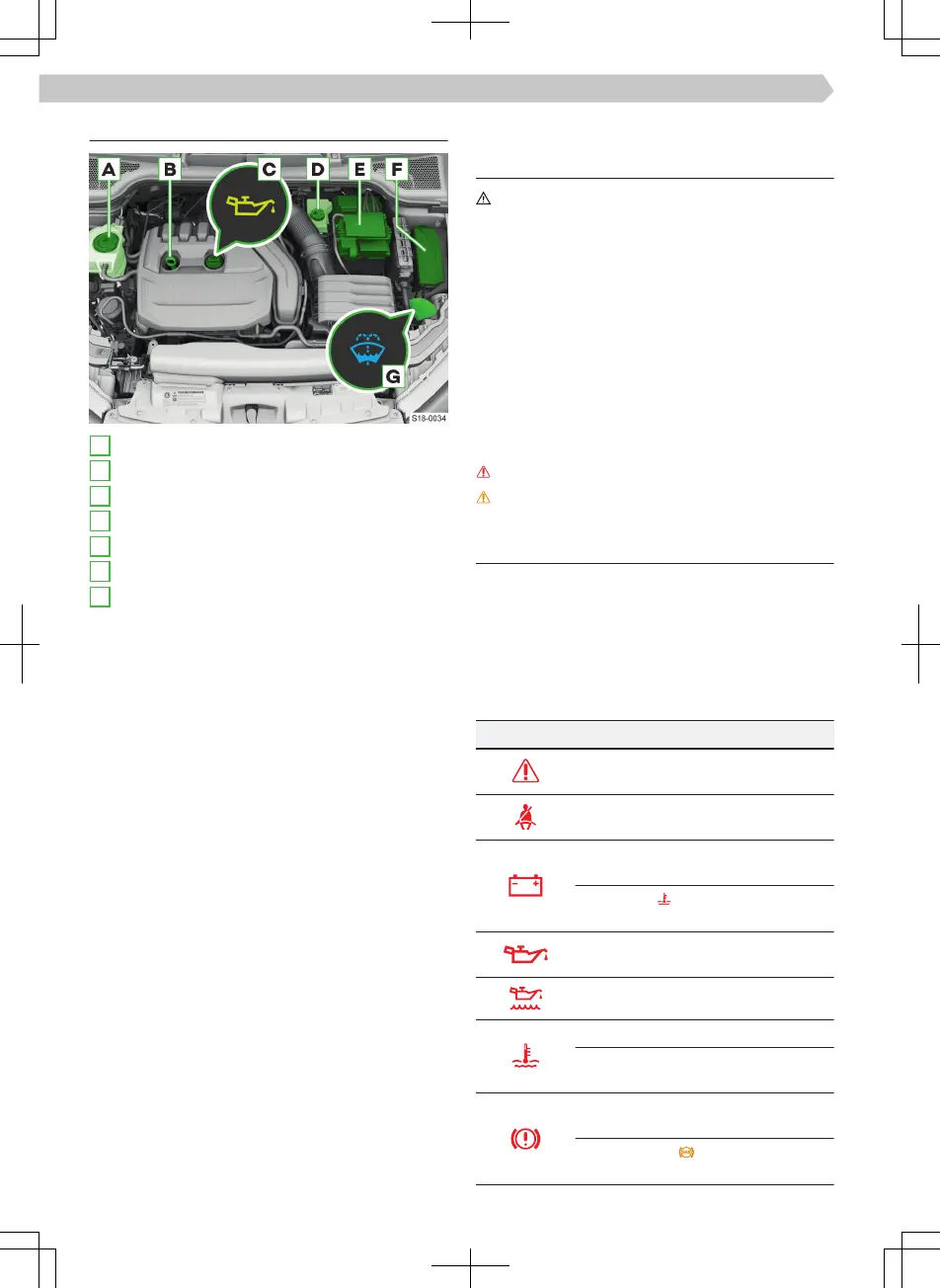

Engine compartment
A
Coolant expansion reservoir » page 150
B
Engine oil dipstick » page 149
C
Engine oil ller opening » page 149
D
Brake uid reservoir » page 133
E
12 volt vehicle battery » page 158
F
Fuse box » page 162
G
Windscreen washer uid reservoir » page 50
Warning lights
Functionality
WARNING
Disregarding the lighting up of the warning lights and
the associated messages on the display of the instru-
ment cluster can lead to accidents, serious injuries or
damage to the vehicle.
The warning lights in the instrument cluster indicate
certain functions or faults.
The illumination of some of the indicator lights may
be accompanied by acoustic signals and messages in
the instrument cluster display.
Additional indicator lights
The additional indicator light will also light up in the
display along with some of the indicator lights:
- Hazard
- Warning
Warning lights overview
After switching on the ignition, some indicator lights
light up briey as a function test of the vehicle sys-
tems. If the tested systems are in order, the respec-
tive indicator lights go out a few seconds after the
ignition is switched on or after the engine has been
started.
For further details » page 12, Functionality.
Symbol Meaning
Indicates a warning together with
another warning light » page 12.
Unfastened seat belts at the front
and rear » page 36.
12-volt vehicle battery is not charg-
ing » page 158.
Along with - Engine
fault » page 150, » page 159.
Engine oil pressure too
low » page 149.
Engine oil level too low » page 149.
Coolant level is too low » page 150.
Coolant temperature too
high » page 150.
Brake uid level is too
low » page 133.
Together with - Brake system and
ABS faulty » page 135.
12
Vehicle overviews › Engine compartment
