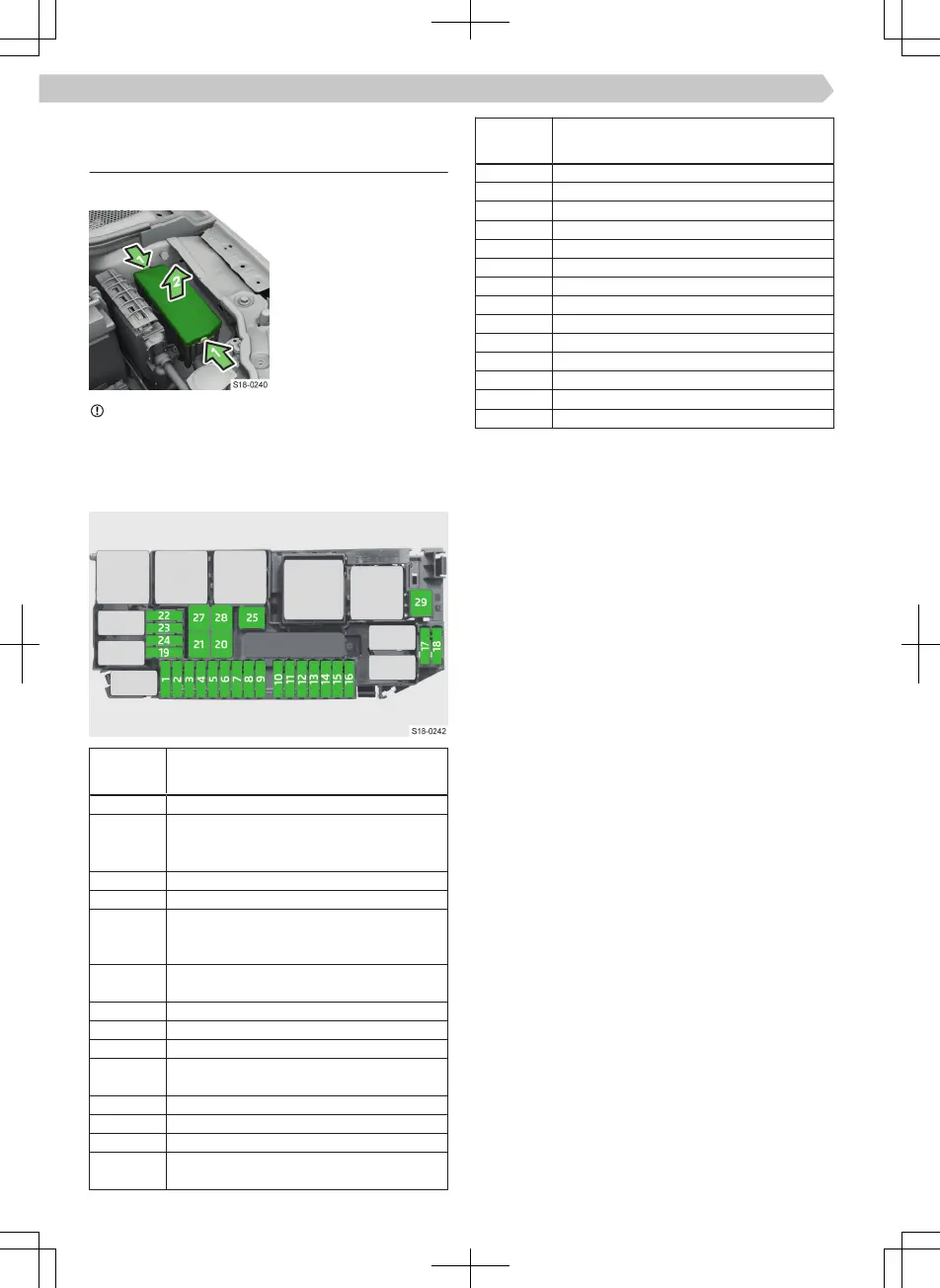

Fuses in the engine compartment
Overview
Access to the fuses
›
Simultaneously press
the locking buttons on
the fuse box cover and
remove the cover.
›
Change the fuse.
›
Fit the cover and click
into place.
NOTICE
Danger of water entering the fuse box.
▶
Fit the cover correctly and click into place secure-
ly.
Fuses overview
Fuse
number
Consumer
1 Engine control unit
2 Exhaust ap, coolant pump, radiator
blinds, SCR (AdBlue
®
), engine compo-
nents
3 Lambda sensors, NOx control unit
4 Fuel pump
5 Radiator fan, boost pressure regulator,
oil level and oil temperature sensor, en-
gine components
6 Crankcase breather, glow plug system,
engine components
7 Brake system (vacuum pump)
8 Fuel pump, engine components
9 Brake light switch
10 Databus, BCM controller, battery data
module
11 Not used
12 Air conditioning
13 Not used
14 ESC, engine control system, engine
components
Fuse
number
Consumer
15 Automatic gearbox
16 Not used
17 Engine control system
18 Starter
19 Not used
20 ESC
21 ESC
22 Not used
23 Not used
24 Not used
25 Electric auxiliary heater, radiator fan
27 Electric auxiliary heater, radiator fan
28 Electric auxiliary heater
29 Heated windscreen
162
12 volt vehicle battery and fuses › Fuses in the engine compartment
