Page 164 December 2007

Telescopic Boom Series

Models SJ61T & SJ66T

194312

Section 5 - ProceduresService and Maintenance

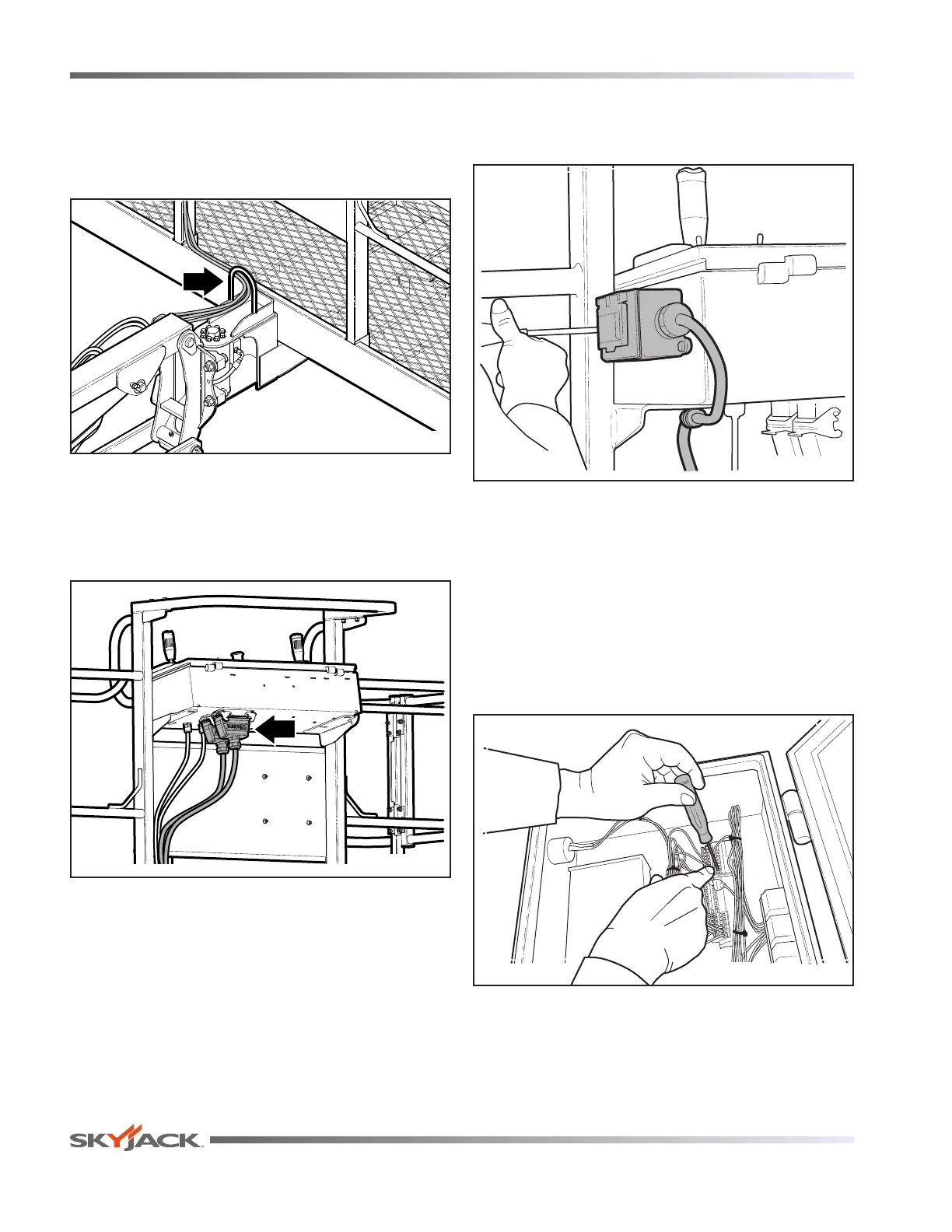

Platform and Jib Boom Removal

Before removing the platform and jib boom from the

machine, the electrical harnesses routed across the

platform swivel joint must be disconnected.

M62018AA

Electrical Harness at Platform Swivel Joint

Procedure:

1. Disconnect the two 24-pin control cables from the

bottom of the control box.

M62067AA

24-pin Control Cables

2. Remove the auxiliary AC receptacle box (as

equipped) if its harness is bundled with the other

harnesses. Remove the harness clamps.

M62191AA

Auxiliary AC Receptacle Box

3. Open the control console lid to disconnect the jib

and platform rotate harness.

4. Remove tie wraps and make note of wire labels

for reinstallation. To release each wire, insert a

small at screwdriver into the slot beside it in the

terminal strip.

5. To release each wire, insert a small at screwdriver

into the slot beside it in the terminal strip.

60/04

20D/41

34A/34

34A/35

36A/36

36A/37

82-/118

M62321AA

Control Console
