Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 165
Section 5 - Procedures Service and Maintenance

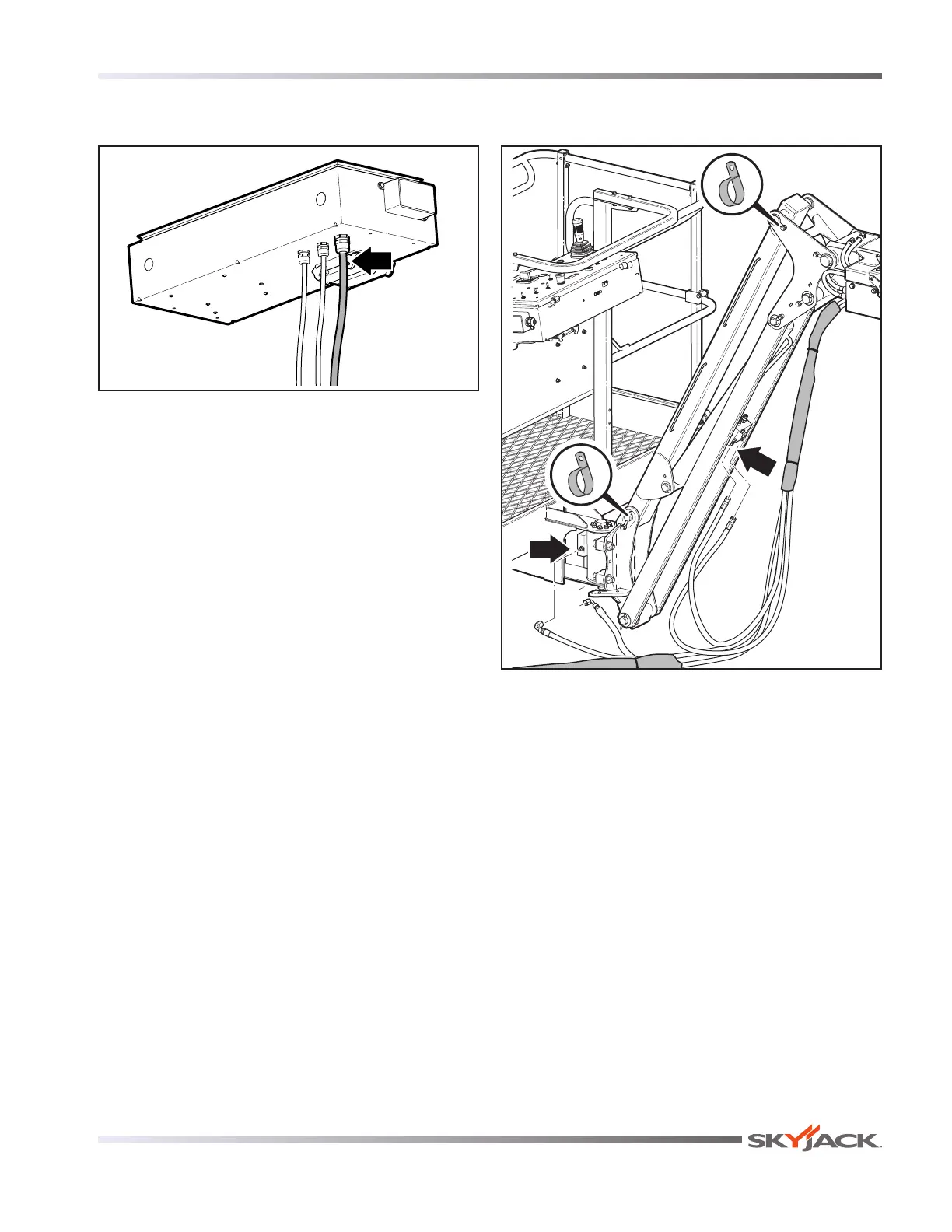

6. Pull the disconnected harness out of the strain
relief connector in the box.
M62021AA
Jib and Platform Rotate Harness
7. Pull all harnesses through the cable guard on the
swivel joint.
8. Mark and disconnect the hydraulic hoses for
the jib cylinder and the platform rotary actuator.
Provide a suitable container or rags to catch any
oil spillage. Cap hoses and ports to keep them
clean.
9. Remove the hoses and wire cable bundle from the
P-clamps on the side of the jib boom.
Jib Cylinder and Platform Rotate Hoses
10. Using suitable lift equipment and safe rigging
practices, connect lifting slings to the jib boom
and platform. Tension the slings enough to lightly
take the weight off the mounting bracket pins.
To Next Page
