Page 166 December 2007
Telescopic Boom Series
Models SJ61T & SJ66T
194312
Section 5 - ProceduresService and Maintenance

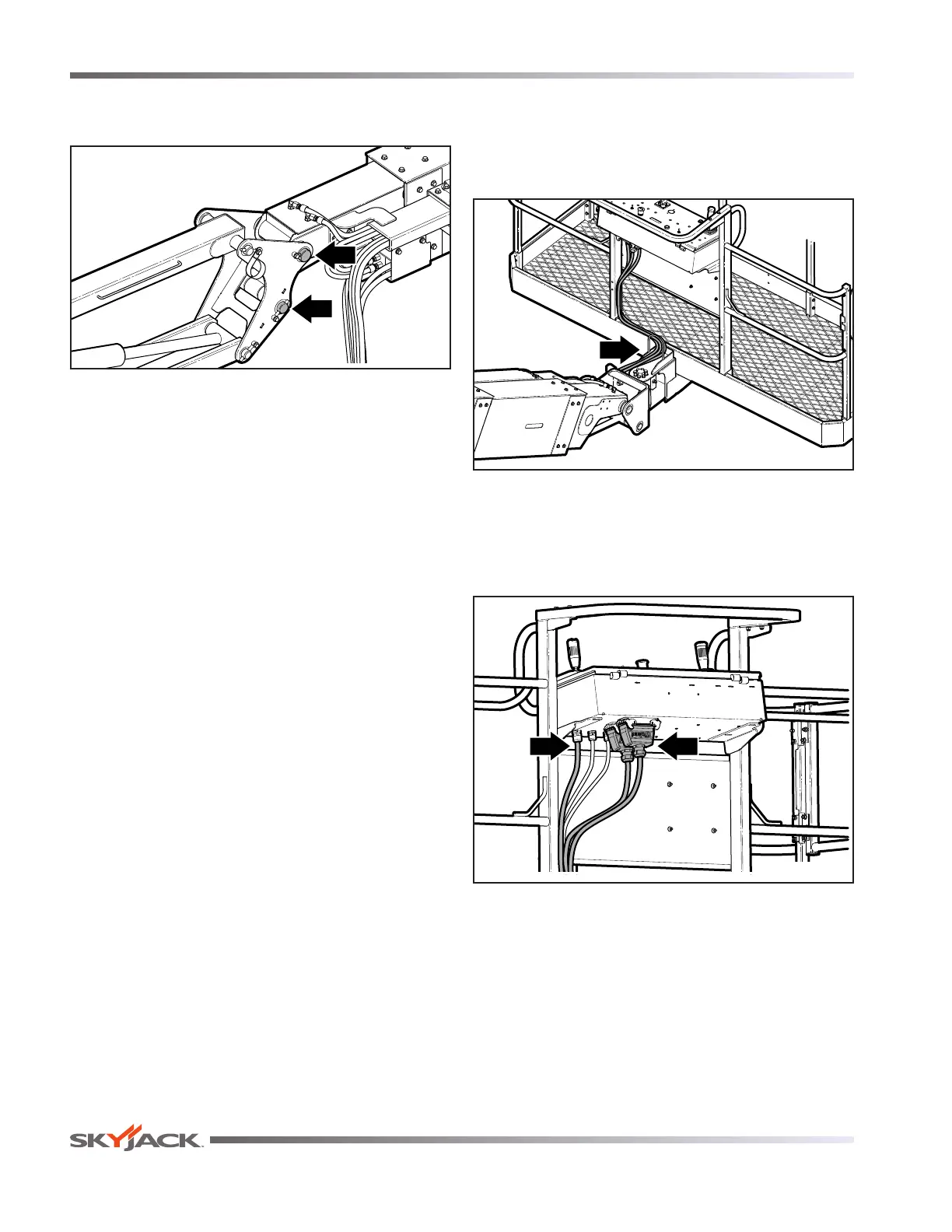

11. Remove the pins mounting the jib boom to the y
boom and the slave cylinder.
M62020AA
Jib Boom / Slave Cylinder Pins
12. Carefully move the jib/platform assembly away
from the end of the machine. Set it down on
suitable blocking nearby. Place it close enough
to the end of the main boom so the control
cables can be reconnected in the event boom
repositioning is required.
Platform Removal (no Jib Boom)
Before removing the platform from the machine,
disconnect the electrical harnesses routed across the
platform swivel joint.
M62023AA
Electrical Harness at Platform Swivel Joint
Procedure:
1. Disconnect the two 24-pin control cables from the
control box.
M62022AA
Harnesses to Disconnect
To Next Page
