Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 167
Section 5 - Procedures Service and Maintenance

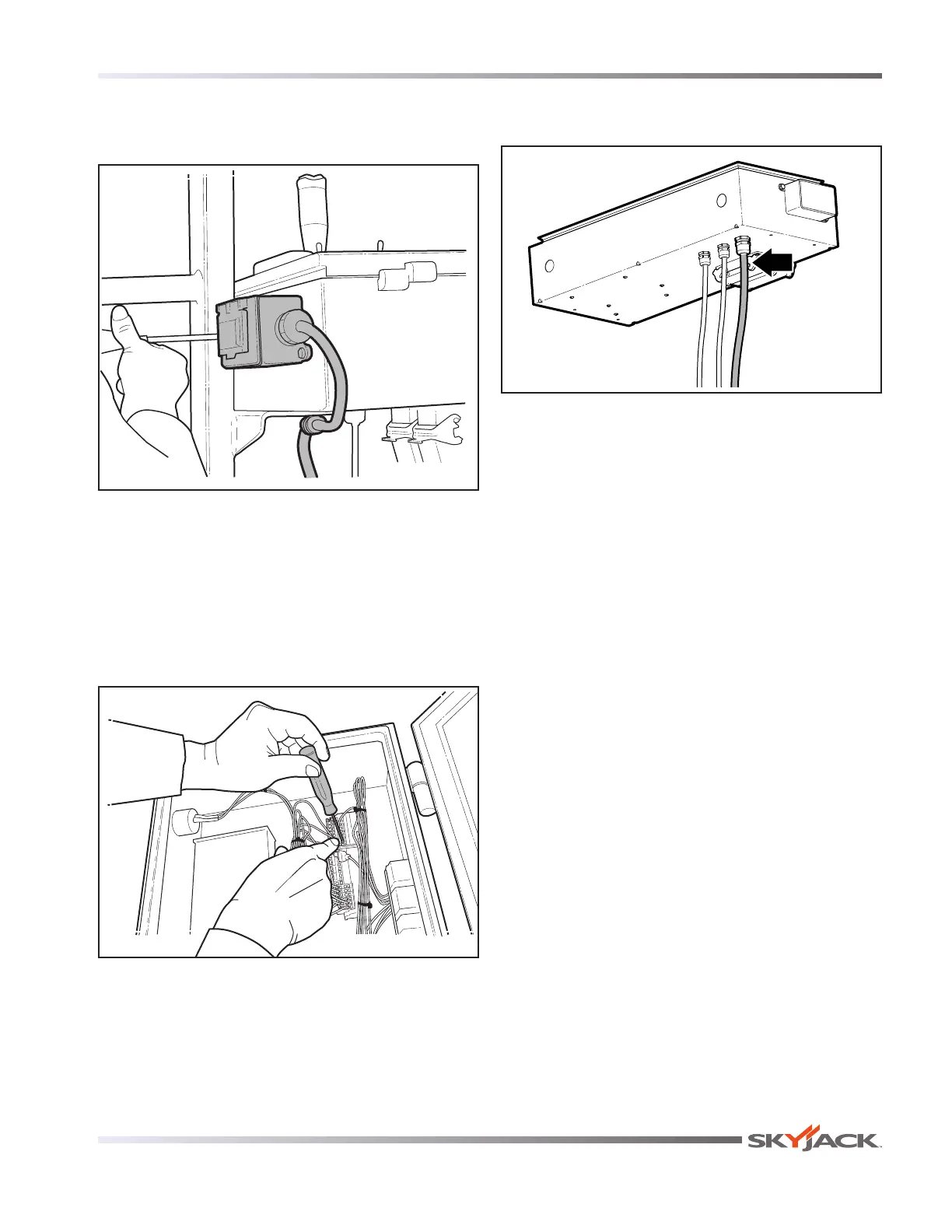

2. Remove the auxiliary AC receptacle box (as
equipped) if its harness is bundled with the other
harnesses. Remove the harness clamps.
M62191AA
Auxiliary AC Receptacle Box
3. Open the control console lid to disconnect the jib
and platform rotate harness.
4. Remove tie wraps and make note of wire labels for
reinstallation.
5. To release each wire, insert a small at screwdriver
into the slot beside it in the terminal strip.
02
02
02
60/04
20D/41
34A/34
34A/35
36A/36
36A/37
82-/118
M62321AA
Control Console
6. Pull the disconnected harness out of the strain
relief connector in the box.
M62021AA
Platform Rotate Harness
7. Pull all harnesses through the cable guard on the
swivel joint.
8. Remove the hoses and wire cables from the
P-clamp on the side of the y boom.
To Next Page
