Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 175
Section 5 - Procedures Service and Maintenance
CAUTION
Risk of personal injury or equipment damage.
Test equipment operation before putting machine
into service. See Function Tests in the Operating
Manual.
Platform Control Console Connection
Refer to the Jib and Platform Rotate Harness on
page 72 to properly identify control console wiring
connections.
Procedure:
Once the platform is installed, make sure all harnesses
to be connected to the platform control box are routed
through the guard hoop on the platform base.
1. Connect the two platform control cable harnesses.
2. Pull the jib (as equipped) and platform rotate
harness through the strain relief connector in the
bottom of the platform control box. Make sure the
wires can reach the terminal block on the left-hand
side of the box.
3. Tighten the strain relief connector locknut to
secure it.

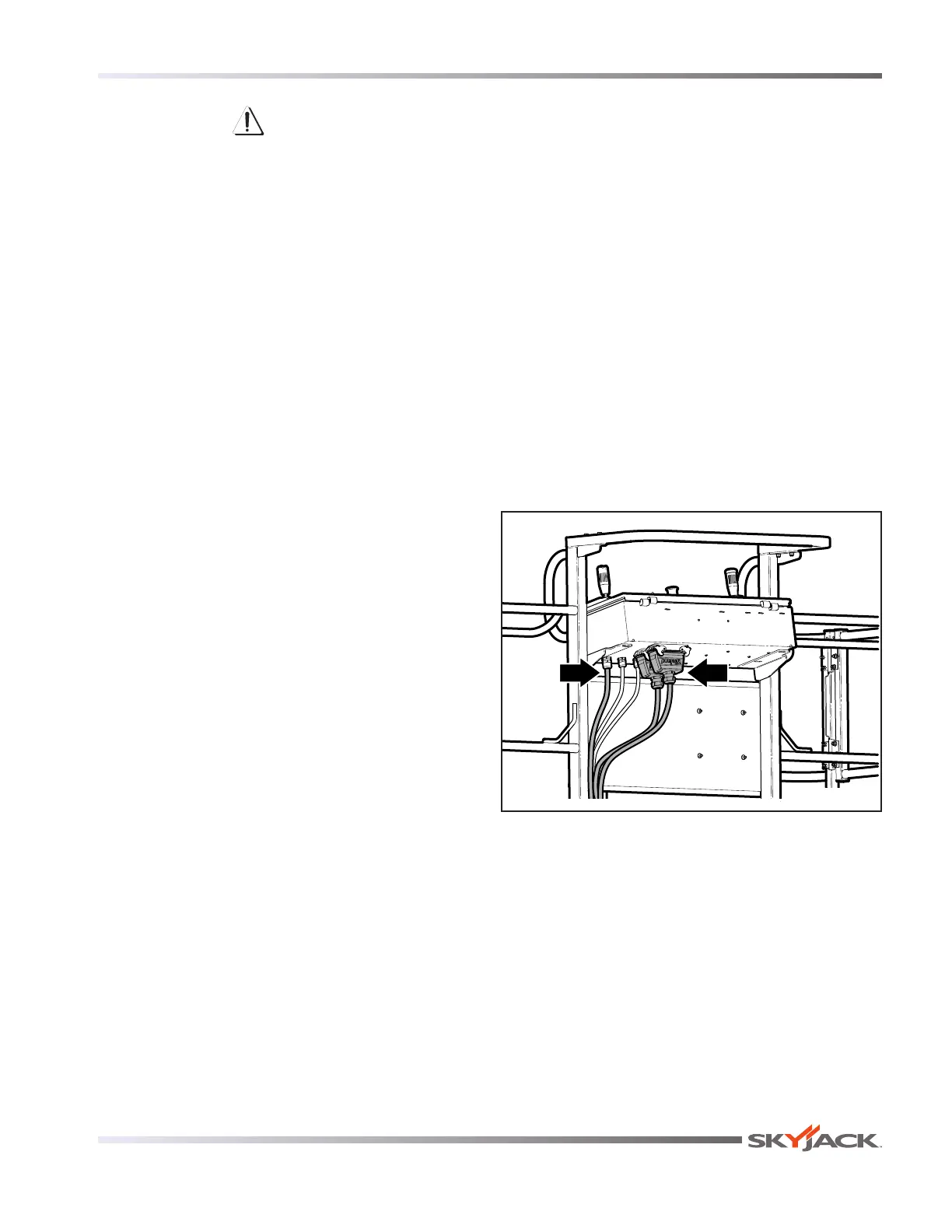

M62022AA
Harnesses to Connect
4. Note the color and markings for each wire.
Connect the wires as shown on the wiring
diagram.
5. Tie-wrap the harnesses inside the control box as
before.
To Next Page
