Boom Section 5 – Procedures
5.4-6 Platform and Jib Boom Removal

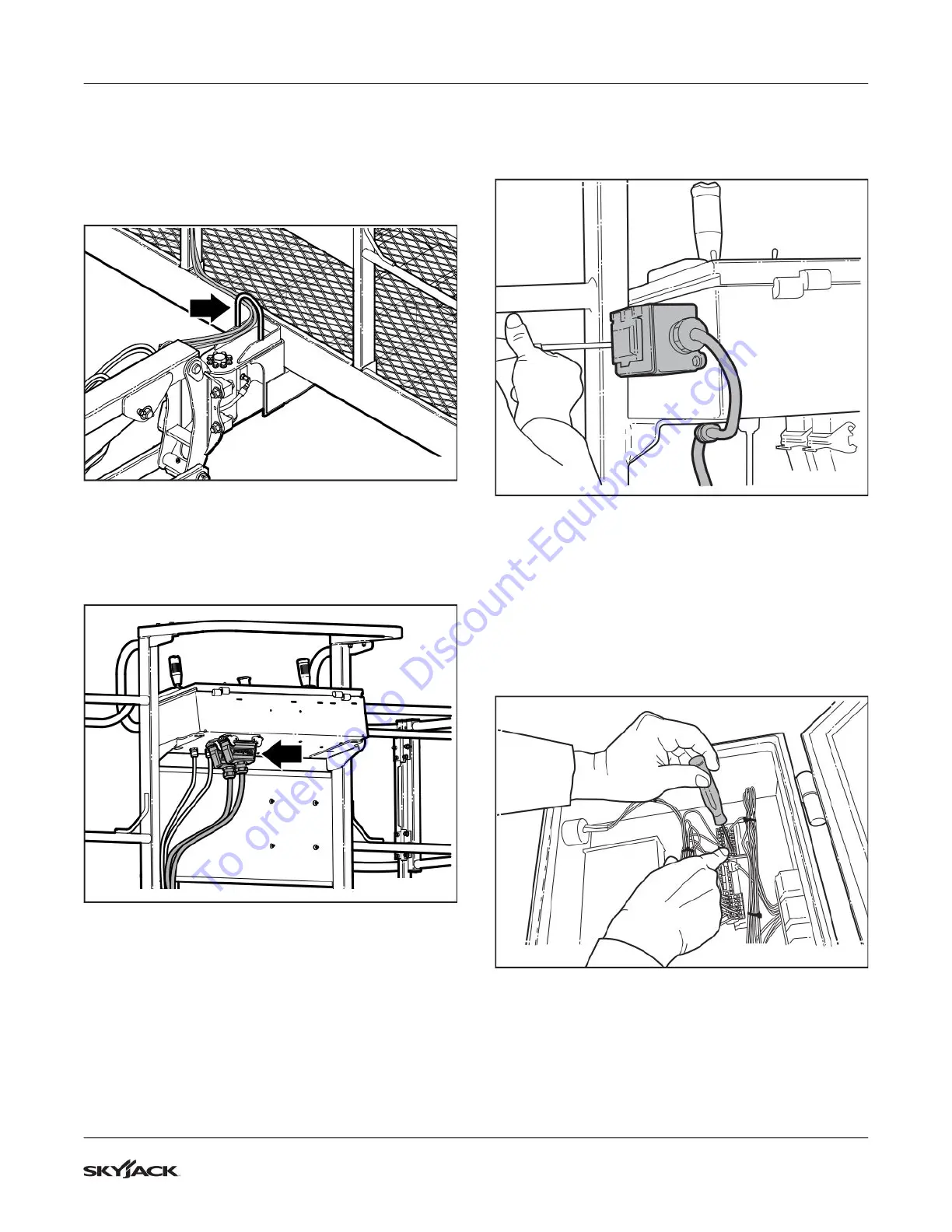

Before removing the platform and jib boom from the
machine, the electrical harnesses routed across the
platform swivel joint must be disconnected.
M62018AA
1. Disconnect the two 24-pin control cables from
the bottom of the control box.
M62067AA
2. Remove the auxiliary AC receptacle box if its
harness is bundled with the other harnesses.
Remove the harness clamps.
M62191AA
3. Open the control console lid and disconnect the
jib and platform rotate harness.
4. Remove tie wraps and make note of wire labels
for reinstallation.
5. To release each wire, insert a small flat
screwdriver into the slot beside it in the terminal
strip.
02
02
02
60/04
20D/41
34A/34
34A/35
36A/36
36A
/37
82-/118
M62321AA
