Skyjack SJ82 T Service Manual

192
SJ82 T, SJ86 T
229040ABA
Section 5 – Procedures Boom

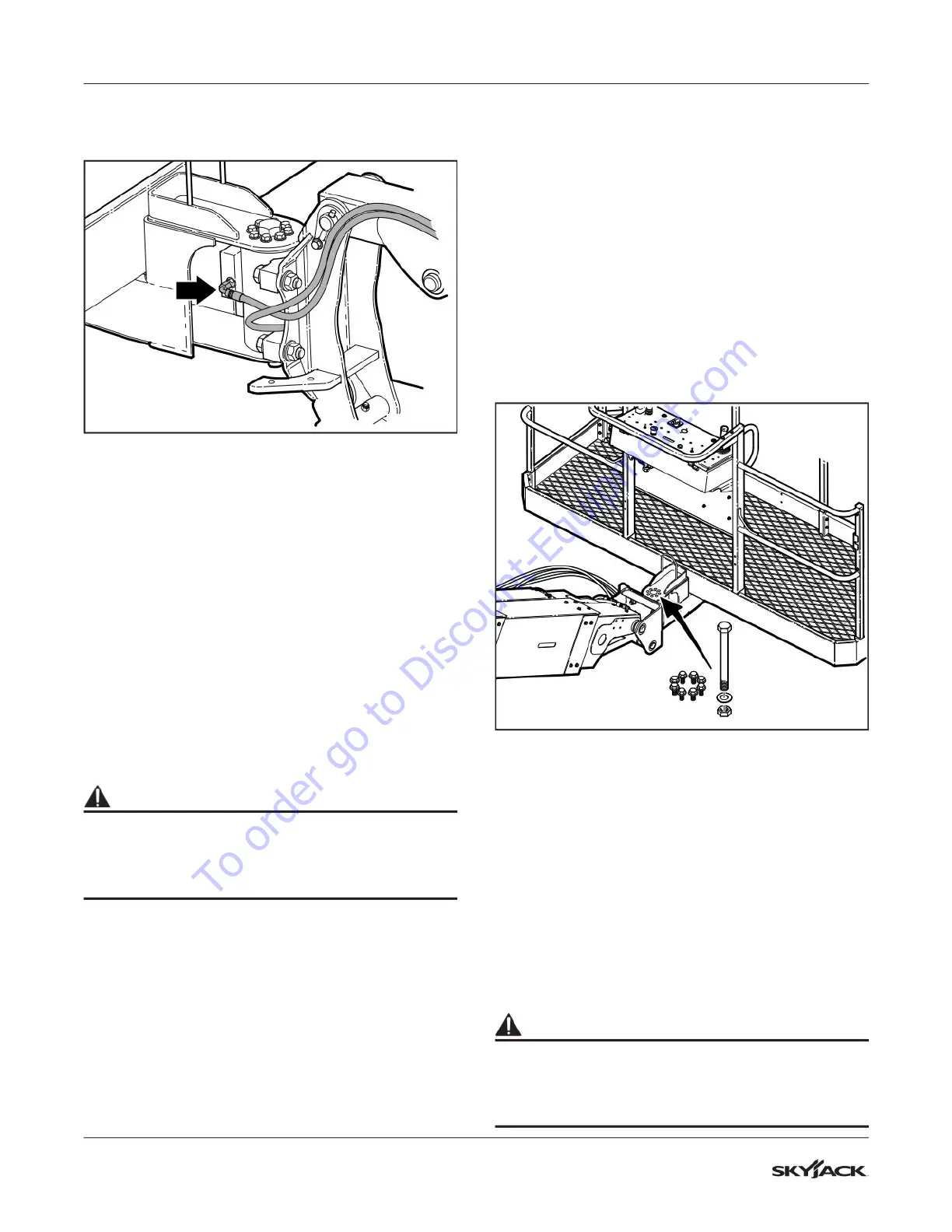

4. Connect the hoses for the platform rotary
actuator.
M62252AA
5. Install the hoses and P-clamps to the side of the
jib boom.
IMPORTANT
Make sure all wiring cables are routed and secured
to avoid pinching or chafing as the platform
moves.
6. Connect the platform control console. Refer to
the Platform Controls Wiring diagrams in Section
3.
CAUTION
Risk of personal injury or equipment damage.
Test equipment operation before putting machine
into service. See Function Tests in the Operating
Manual.
5.4-14 Platform Installation (no Jib Boom)
For torque specifications, refer to 2.2 MEWP Torque
Specifications.
1. Connect lifting slings to the platform assembly.
2. Using suitable lifting equipment, move the
platform into place.
3. Install the main pivot bolt pin, flat washer and
hex nut. Tighten to the correct torque.
4. Install the bolts that secure the rotary actuator
to the platform base mount. Apply Loctite 242 to
the bolt threads. Tighten to the correct torque.
M62066AA
5. Connect the hydraulic hoses to the platform
rotator.
6. Install the P-clamp for the hoses and wire cables
to the side of the fly boom nose.
IMPORTANT
Make sure all wiring cables are routed and secured
to avoid pinching or chafing as the platform
moves.
Connect the platform control console. Refer to the
Platform Controls Wiring diagrams in Section 3.
CAUTION
Risk of personal injury or equipment damage.
Test equipment operation before putting machine
into service. See Function Tests in the Operating
Manual.
