Boom Section 5 – Procedures
5.4-15 Platform Control Console
Connection
Refer to the Platform Controls Wiring diagrams in
Section 3 to properly identify control console wiring
connections.
Once the platform is installed, make sure all
harnesses to be connected to the platform control box
are routed through the guard hoop on the platform
base.

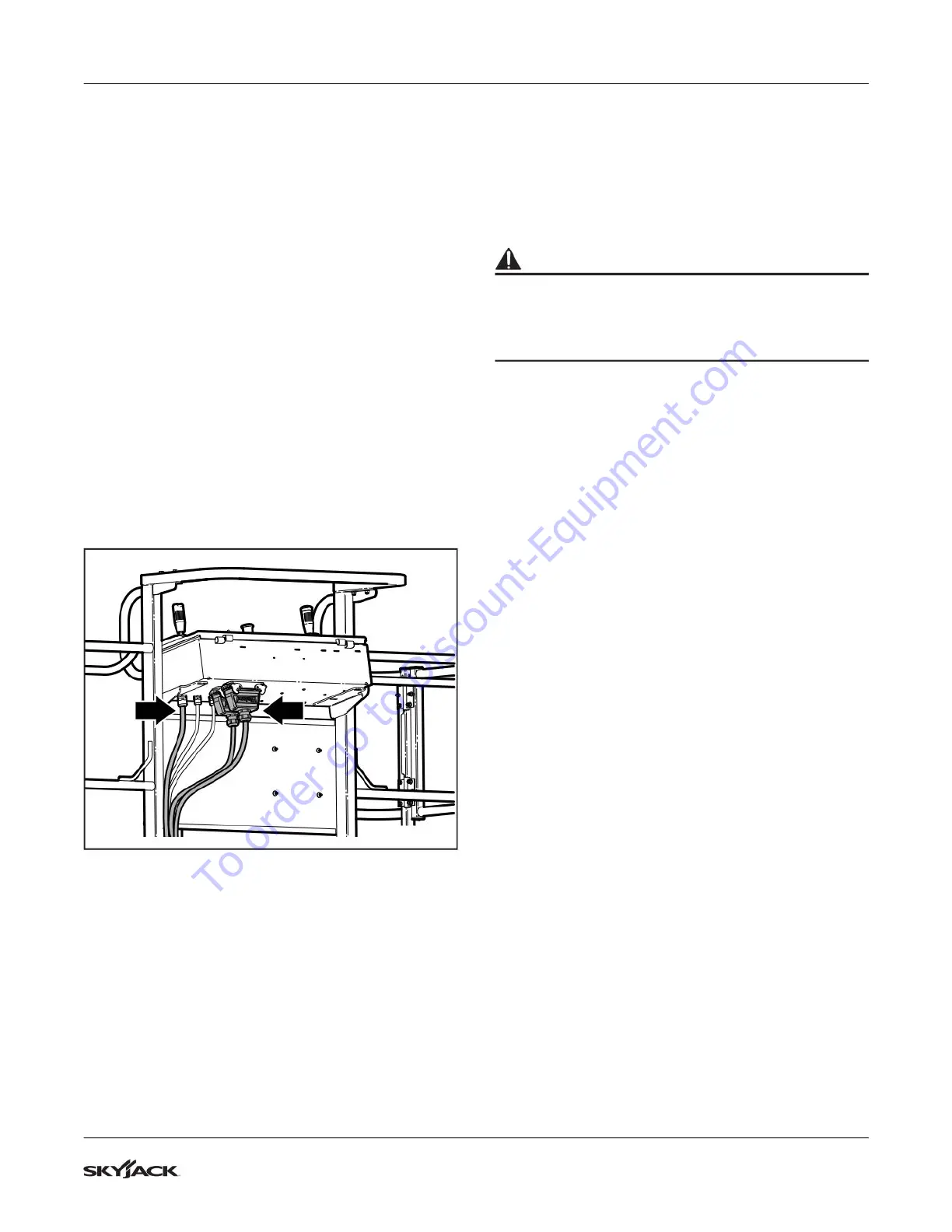

1. Connect the two platform control cable
harnesses.
2. Pull the jib (if equipped) and platform rotate
harness through the strain relief connector in the
bottom of the platform control box. Make sure
the wires can reach the terminal block on the
left-hand side of the box.
3. Tighten the strain relief connector locknut to
secure it.
M62022AA
4. Note the color and markings for each wire.
Connect the wires as shown on the wiring
diagram.
5. Tie-wrap the harnesses inside the control box as
before.
IMPORTANT
Make sure all wiring cables are routed and secured
to avoid pinching or chafing as the platform
moves.
CAUTION
Risk of personal injury or equipment damage.
Perform a function and range of controls check
before putting machine into service. See Function
Tests in the Operating Manual.
