Skyjack SJ82 T Service Manual

57
SJ82 T, SJ86 T
229040ABA
Electrical Parts List Section 3 – System Component Identification and Schematics
Index
No.
Skyjack
Part No.
Description
01ACR 127131 RELAY, 12 Volt 40 Amp (E-pump)
01CR 127131 RELAY, 12 Volt 40 Amp (E-pump)
07CR 127131 RELAY, 12 Volt 40 Amp (E-pump enable)
08CR 127131 RELAY, 12 Volt 40 Amp (Engine start interlock)
08CR1 127131 RELAY, 12 Volt 40 Amp (Dump valve interlock)
09CR 127131 RELAY, 12 Volt 40 Amp (ECU power or Telematics)
11CR 127131 RELAY, 12 Volt 40 Amp (Cold start)
17ACR1 127131 RELAY, 12 Volt 40 Amp (Steer reverse)
17ACR2 127131 RELAY, 12 Volt 40 Amp (Steer reverse)
19CR 127131 RELAY, 12 Volt 40 Amp (Boom down throttle)
21CR 127131 RELAY, 12 Volt 40 Amp (Dump valve)
27CR 127131 RELAY, 12 Volt 40 Amp (Tilt alarm)
45CR1 127131 RELAY, 12 Volt 40 Amp (Torque mode)
45CR2 127131 RELAY, 12 Volt 40 Amp (Torque mode)
49CR 127131 RELAY, 12 Volt 40 Amp (Horn)
54ACR 127131 RELAY, 12 Volt 40 Amp (Cold start)
56ACR 127131 RELAY, 12 Volt 40 Amp (Fuel pump)
57ACR 127131 RELAY, 12 Volt 40 Amp (Anti-restart)
57ACR1 127131 RELAY, 12 Volt 40 Amp (Generator interlock)
60CR 127131 RELAY, 12 Volt 40 Amp (Main power enable)
76ACR 127131 RELAY, 12 Volt 40 Amp (MIL light)
77CR 127131 RELAY, 12 Volt 40 Amp (E-pump enable)
77CR1 127131 RELAY, 12 Volt 40 Amp (Hourmeter/counter)
78CR 127131 RELAY, 12 Volt 40 Amp (High idle)
79CR 127131 RELAY, 12 Volt 40 Amp (Low idle)
82CR 127131 RELAY, 12 Volt 40 Amp (Overload light)
86CR 127131 RELAY, 12 Volt 40 Amp (Oil cooler)
120CR 127131 RELAY, 12 Volt 40 Amp (Low capacity enable) - ANSI/CSA
120CR 127131 RELAY, 12 Volt 40 Amp (High capacity light) - CE & AS
3.6 Electrical Parts List

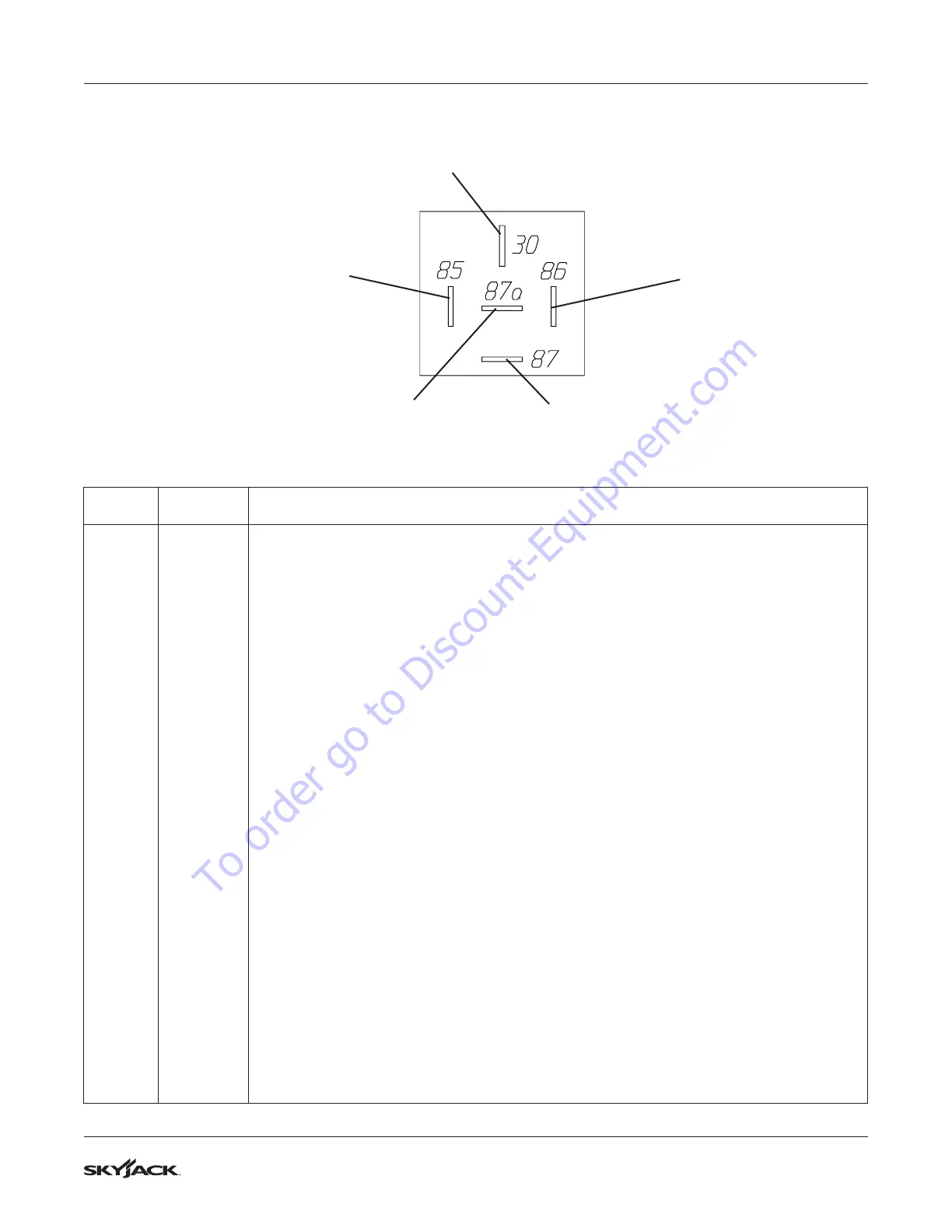

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
