Rotary Manifold Port Identification Section 3 – System Component Identification and Schematics

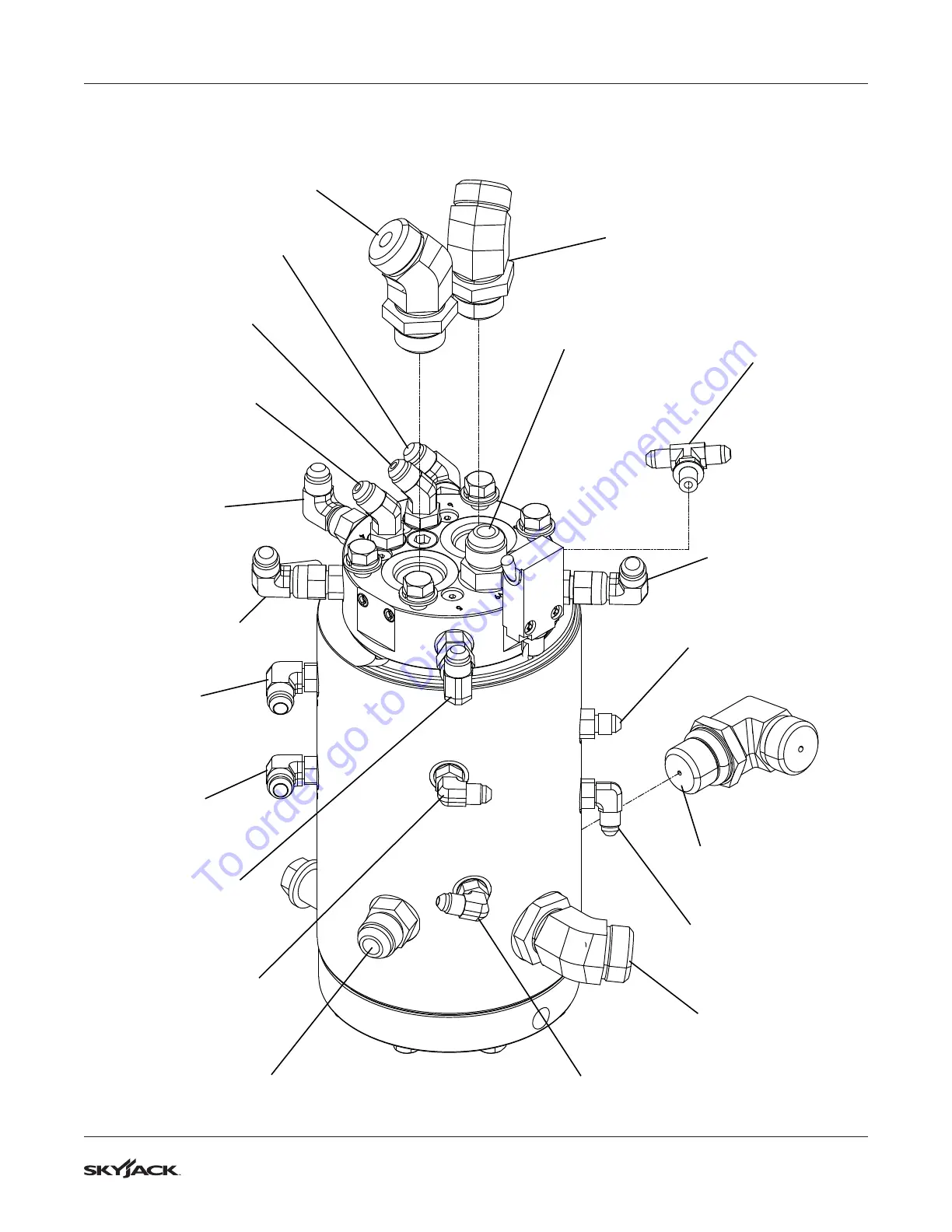

3.8 Rotary Manifold Port Identification
Port 1
To Main Manifold
Steer Right (SA)
Port 6
To Front Drive Motor
Port 7
To Rear Drive Motor
Port 8
To Drive Pump
Port 4
To Front &
Rear Brake
Cylinders
Port 7
To Drive Pump
Port 5
To Steer
Cylinder (L)
Port 2
To Axle Lock Cylinder
Port V9
To Rear Drive Motor
Port 10
To Rear Axle Differential Lock
Port 8
To Rear Drive Motor
Port 1
To Steer
Cylinder (R)
Port 10
To Brake Manifold
Differential Lock (D)
Port 3
To Drive Pump
Port 3
To Axle Lock Cylinder
Port 4
To Brake Manifold
Brake (BR)
Port 2
To Brake Manifold
Axle Lock (AL)
Port 6
To Brake Manifold
(2SPD)
Port V9
To Hydraulic Tank
Port 5
To Main Manifold
Steer Left (SB)
