Skyjack SJ82 T Service Manual

40
SJ82 T, SJ86 T
229040ABA

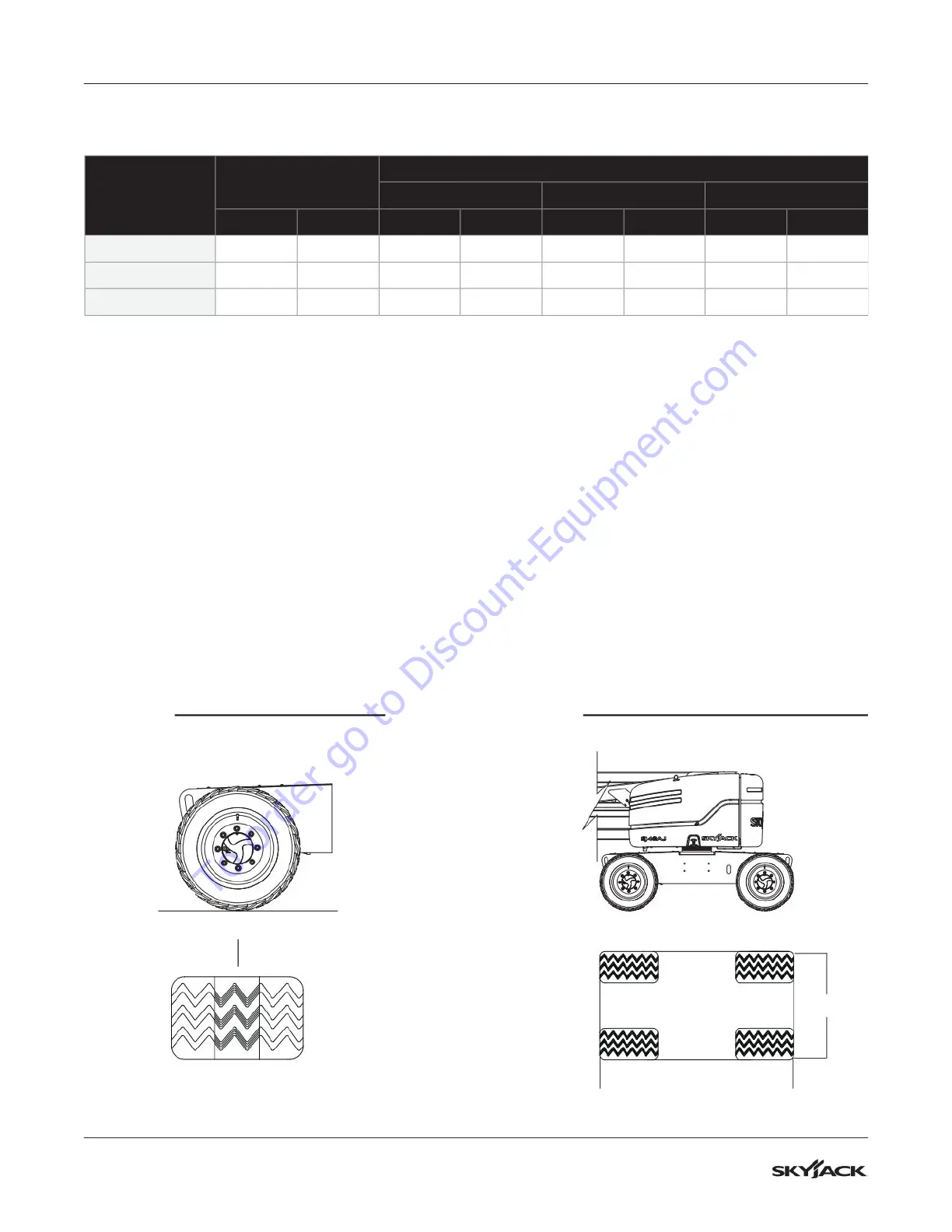

Section 2 – Maintenance Tables and Diagrams Floor Loading Pressure
2.9 Floor Loading PressureTable
Locally Concentrated Pressure (LCP)
Foot Print Area identified by test
Overall Uniform Pressure (OUP)
Base Area = Length x Width
Base Width
Base Length
Foot Print Area
LCP = OUP =
Wheel Load Weight of MEWP + Capacity
Foot Print Area Base Area
Model
Weight
Total Aerial Platform Load
Wheel LCP OUP
lb kg lb kg psi kPa psf kPa
SJ82T ANSI/CSA 37,600 17 055 17,850 8097 175 1207 325 15.6
SJ86T ANSI/CSA 37,800 17 145 17,850 8097 175 1207 330 15.8
SJ86T CE & AS 38,691 17 550 17,857 8100 175 1210 334 16
2054AA
▪
Gross Aerial Platform Weight = Weight + platform capacity
▪
LCP – Locally Concentrated Pressure – is a measure of how hard the aerial platform tire tread presses on
the area in direct contact with the floor. The floor covering (tile, carpet, etc.) must be able to withstand more
than the indicated values above.
▪
OUP – Overall Uniform Pressure – is a measure of the average load the aerial platform imparts on the
whole surface projected directly underneath it. The structure of the operating surface (beams, etc.) must
be able to withstand more than the indicated values above.
▪
The welder option will add approximately 350 lb (158.8 kg) to total aerial platform weight and 175 lb (79.4
kg) to max. wheel load.
NOTE:
The LCP or OUP that an individual surface can withstand varies from structure to structure and is generally
determined by the engineer or architect for that particular structure.
