SJ82 T, SJ86 T
229040ABA

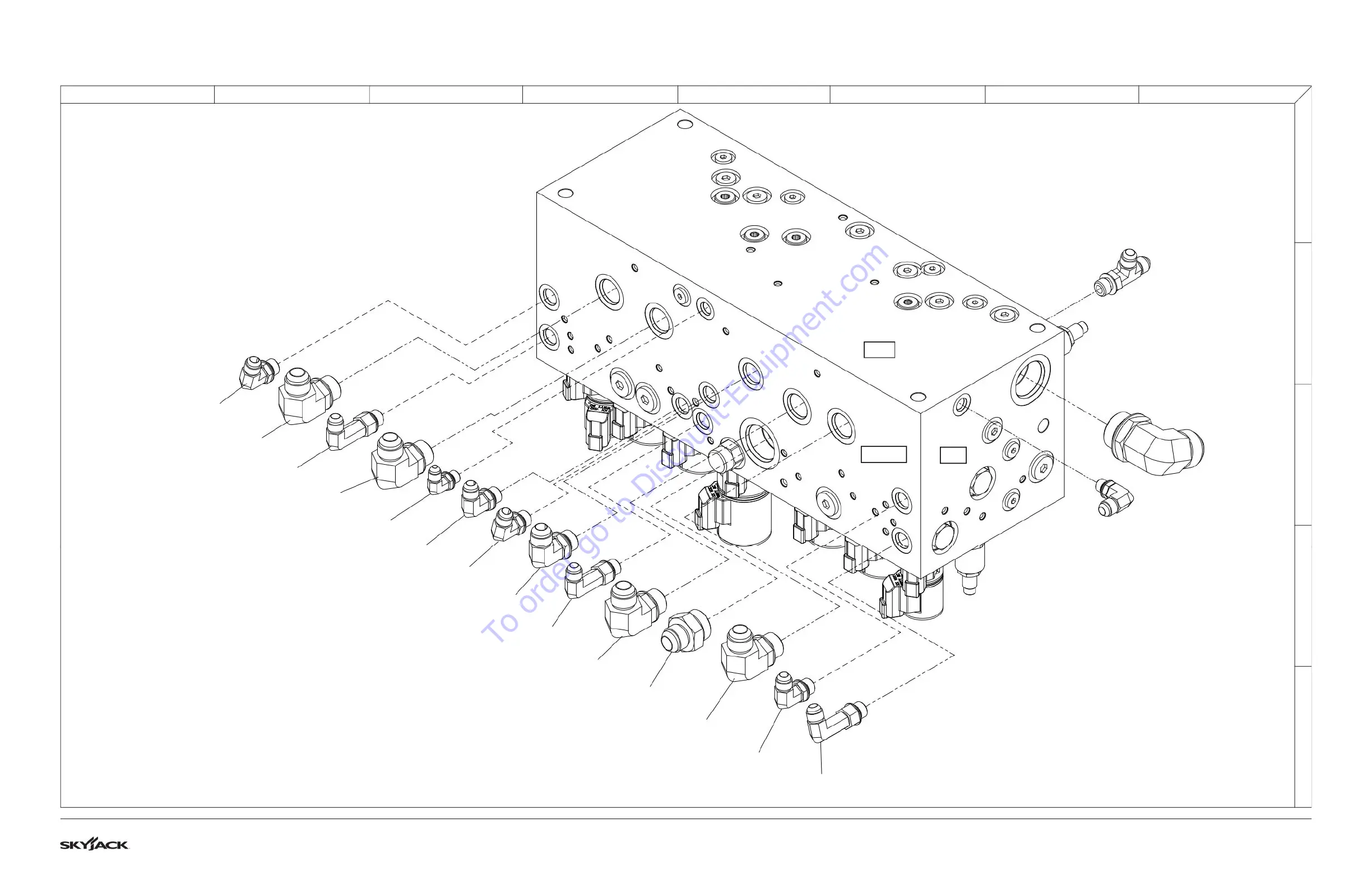

3.14 Main Manifold Port Identification
M165487AG-PI
T2
To Tank Return Filter
T1
To Brake Manifold
SB
To Rotary Manifold
SA
To Rotary Manifold
LA
To Lift Cylinder
LB
To Lift Cylinder
BLS
To Brake Manifold
PP
To Rotary Manifold
RB
To Swing Drive
RA
To Swing Drive
P2
To Emergency Pump
EA
To Extend Cylinder
P1
To High Pressure Filter
EB
To Extend Cylinder
PLB
To RBulkhead (Main Boom)
PLA
To Bulkhead (Main Boom)
LS1
To System Pump
PLA
PLB
EB
P1
EA
RA
P2
RB
PP
BLS
LB
SA
LA
SB
T2
LS1
Bottom
Back
Left
