Boom Section 5 – Procedures

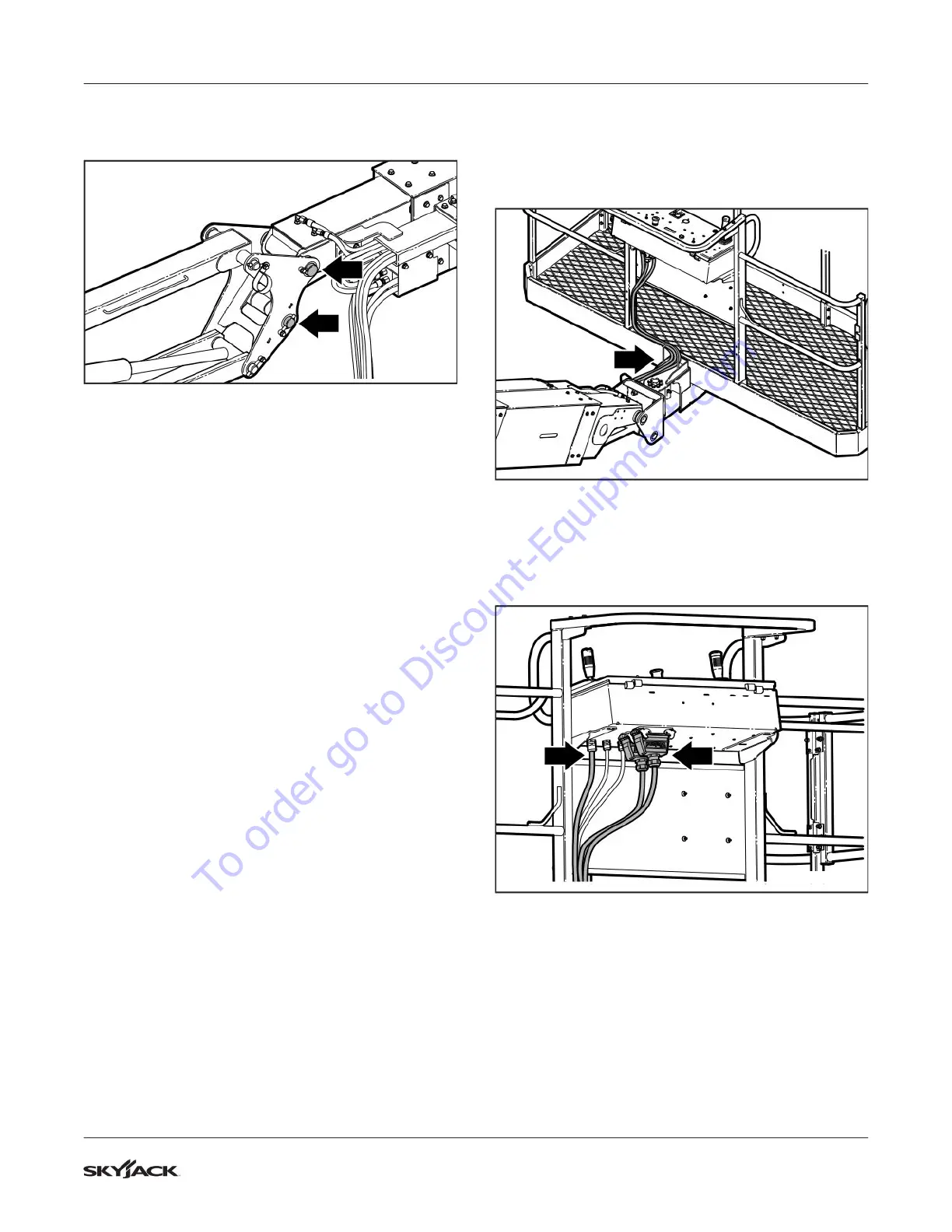

11. Remove the pins mounting the jib boom to the
fly boom and the slave cylinder.
M62020AA
12. Carefully move the jib/platform assembly away
from the end of the machine. Set it down on
suitable blocking nearby. Place it close enough
to the end of the main boom so the control
cables can be reconnected in the event boom
repositioning is required.
5.4-7 Platform Removal (no Jib Boom)
Before removing the platform from the machine,
disconnect the electrical harnesses routed across the
platform swivel joint.
M62023AA
1. Disconnect the two 24-pin control cables from
the control box.
