Skyjack SJ82 T Service Manual

A B C D E F G H
V
Z
Y
X
W
77
SJ82 T, SJ86 T
229040ABA

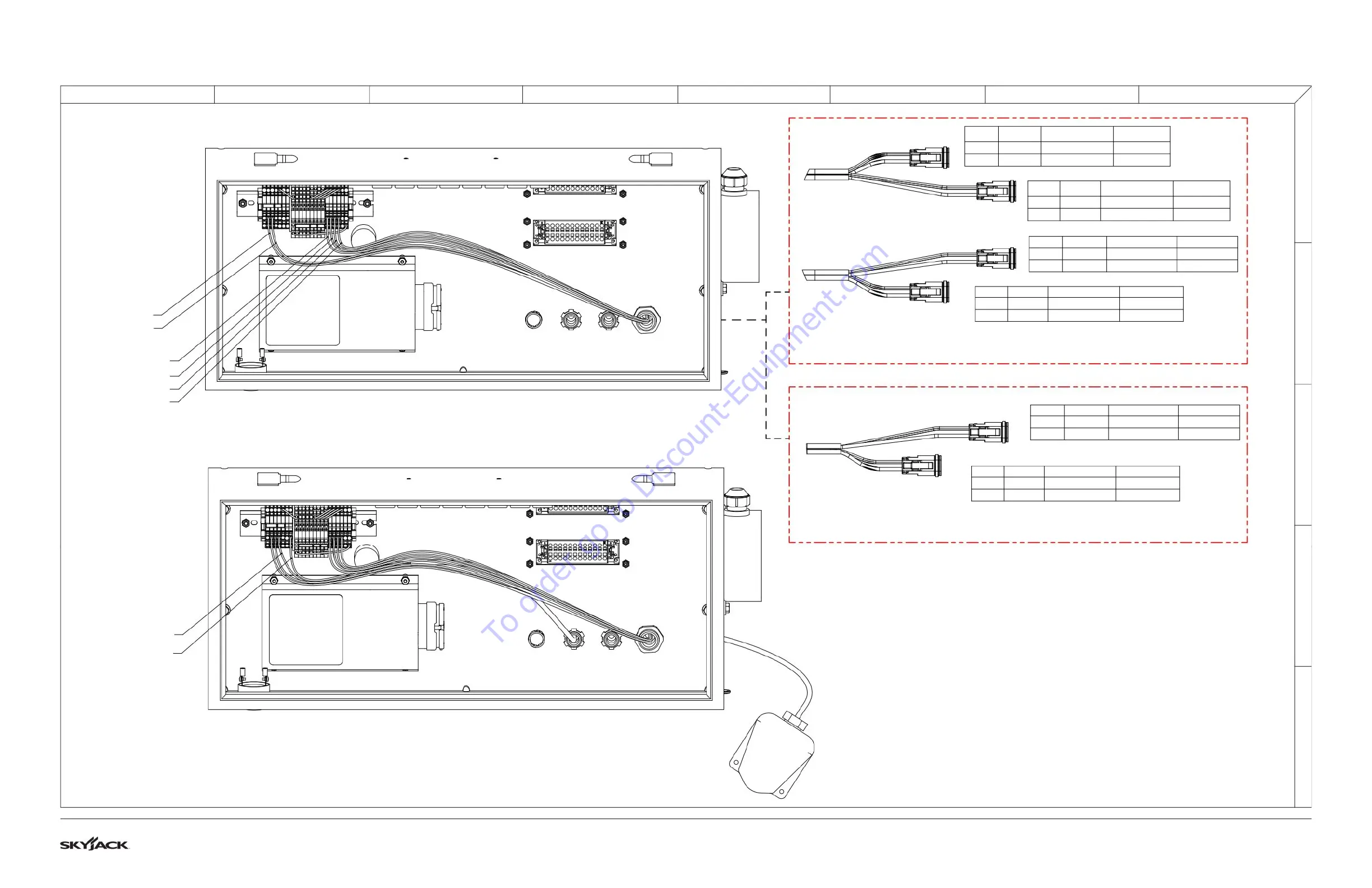

3.20 Platform Rotate & Jib Harnesses
M168644AB_M167740AB_M168650AA
JIB & PLATFORM ROTATE CONNECTIONS
WHITE (02)
WHITE (02)
ORANGE BLACK (34)
ORANGE WHITE(35)
RED PURPLE (36)
WHITE RED BLACK (37)
FOOT PEDAL CONNECTIONS
BLACK (04A)
WHITE (08A)
CAVITY WIRE NO. COLOUR DESCRIPTION
1
34
ORANGE/BLK JIB DOWN
2 02 WHITE (SPLICE 2) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 35 ORANGE/WHITE JIB UP
2 02 WHITE (SPLICE 2) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 37 WHITE/RED/BLK ROTATE CCW
2 02 WHITE (SPLICE 1) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 36 RED/PURPLE ROTATE CW
2 02 WHITE (SPLICE 1) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 37 WHITE/RED/BLK ROTATE CCW
2 02 WHITE (SPLICE) GROUND
CAVITY WIRE NO. COLOUR DESCRIPTION
1 36 RED/PURPLE ROTATE CW
2 02 WHITE (SPLICE) GROUND
JIB & PLATFORM ROTATE HARNESS - SJ86T
PLATFORM ROTATE HARNESS - SJ81T
