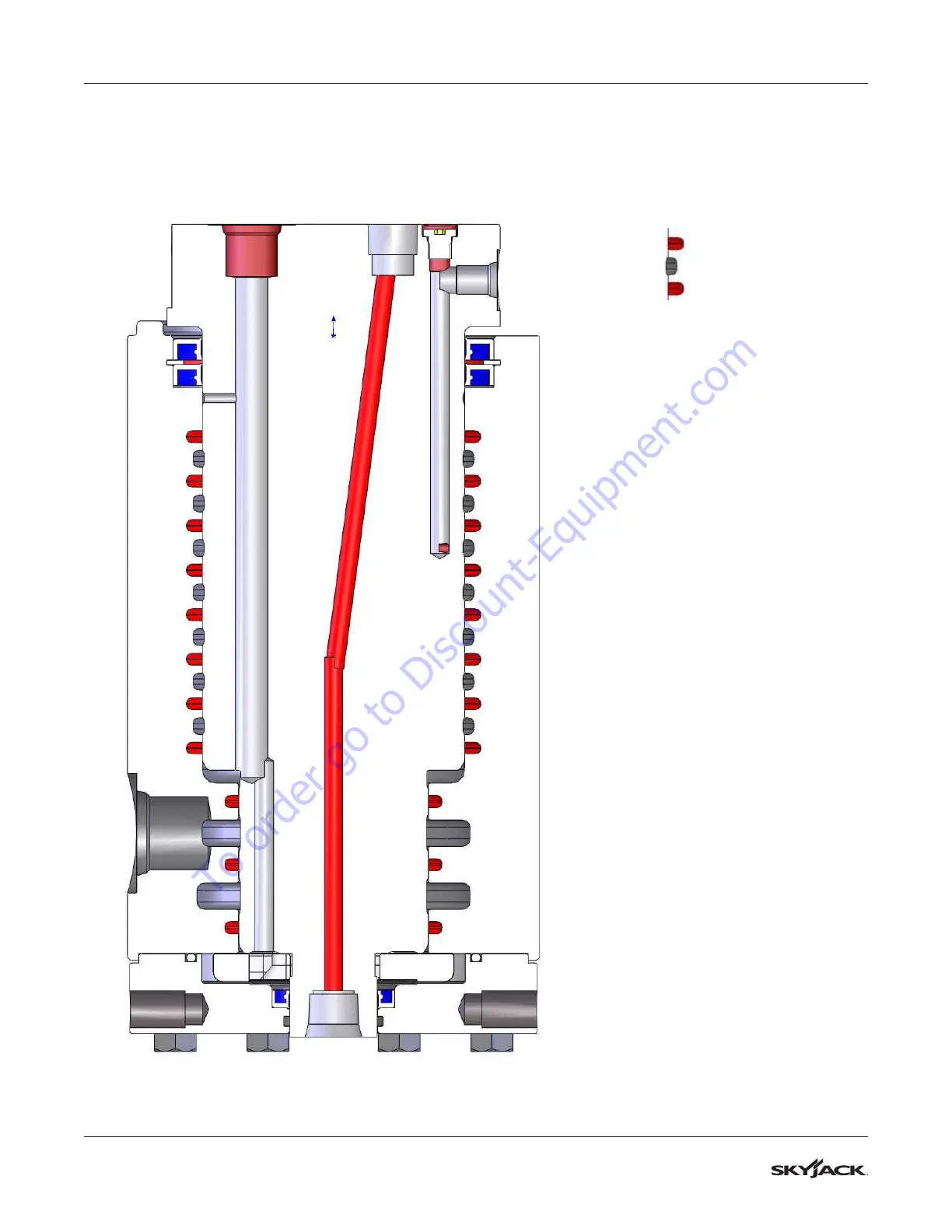

Section 3 – System Component Identification and Schematics Rotary Manifold Port Identification
3.8 Rotary Manifold Port Identification
Port 1: Steer Right
Port 2: Axle Oscillation Unlock Signal
Port 3: Axle Oscillation Cylinder Pressure
Port 4: SAHR Brake Release
Port 5: Steer Left
Port 6: Hydraulic Motor 2 Speed,
Port 10: Differential Lock (if equipped)
Port 9: Hydraulic Motor Drain
Port 7: Hydraulic Motor; Drive FWD
Port 8: Hydraulic Motor; Drive REV
Seals Fluid Port
