198
Section 5 – Procedures Boom
7. Route the platform end wire ropes between the
main and mid booms, through to the anchor
points at the platform end. Install one hex nut on
each cable end.

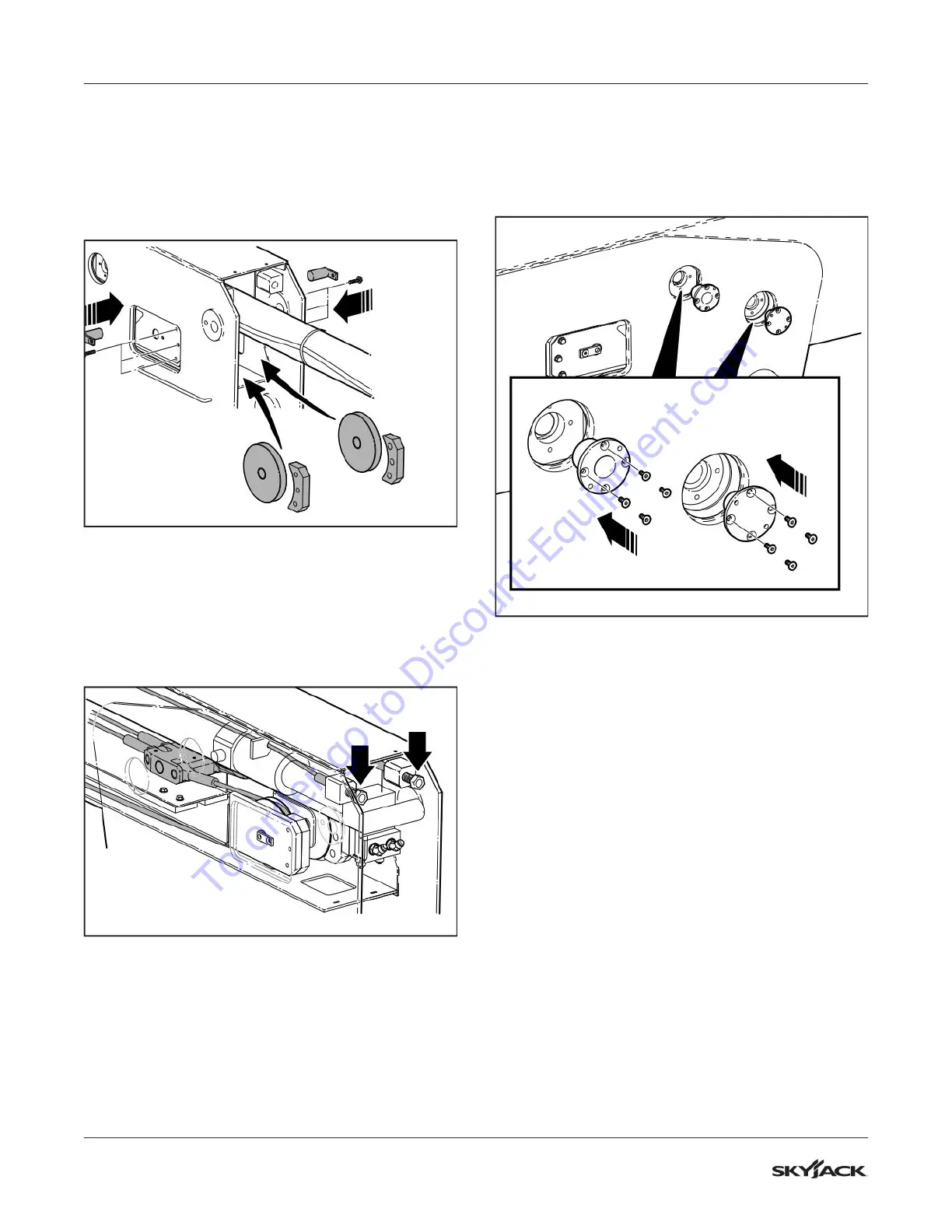

8. Install the mid boom pulleys. Pull the slack cable
and fit it onto the pulleys. Install the cable stops.
M62277AA
9. Continue sliding the cylinder inward, making
sure the wire ropes do not get tangled.
10. Install the counterweight end of the wire ropes
into the anchor points. Install one hex nut on
each anchor to secure it.
M62279AA
Counterweight-end Wire Ropes
11. Install the flange pins for the cable support and
the wire rope terminal plate into the side of the
boom. If the flanges need to be rotated, thread
two bolts into the puller holes and turn with a pry
bar.
M62278AA
12. Install the extension cylinder base-end pin.
Install the keeper pin to secure it.
13. Install the extension cylinder hydraulic hoses.
