Skyjack SJ82 T Service Manual

A B C D E F G H
V
Z
Y
X
W
86
SJ82 T, SJ86 T
229040ABA

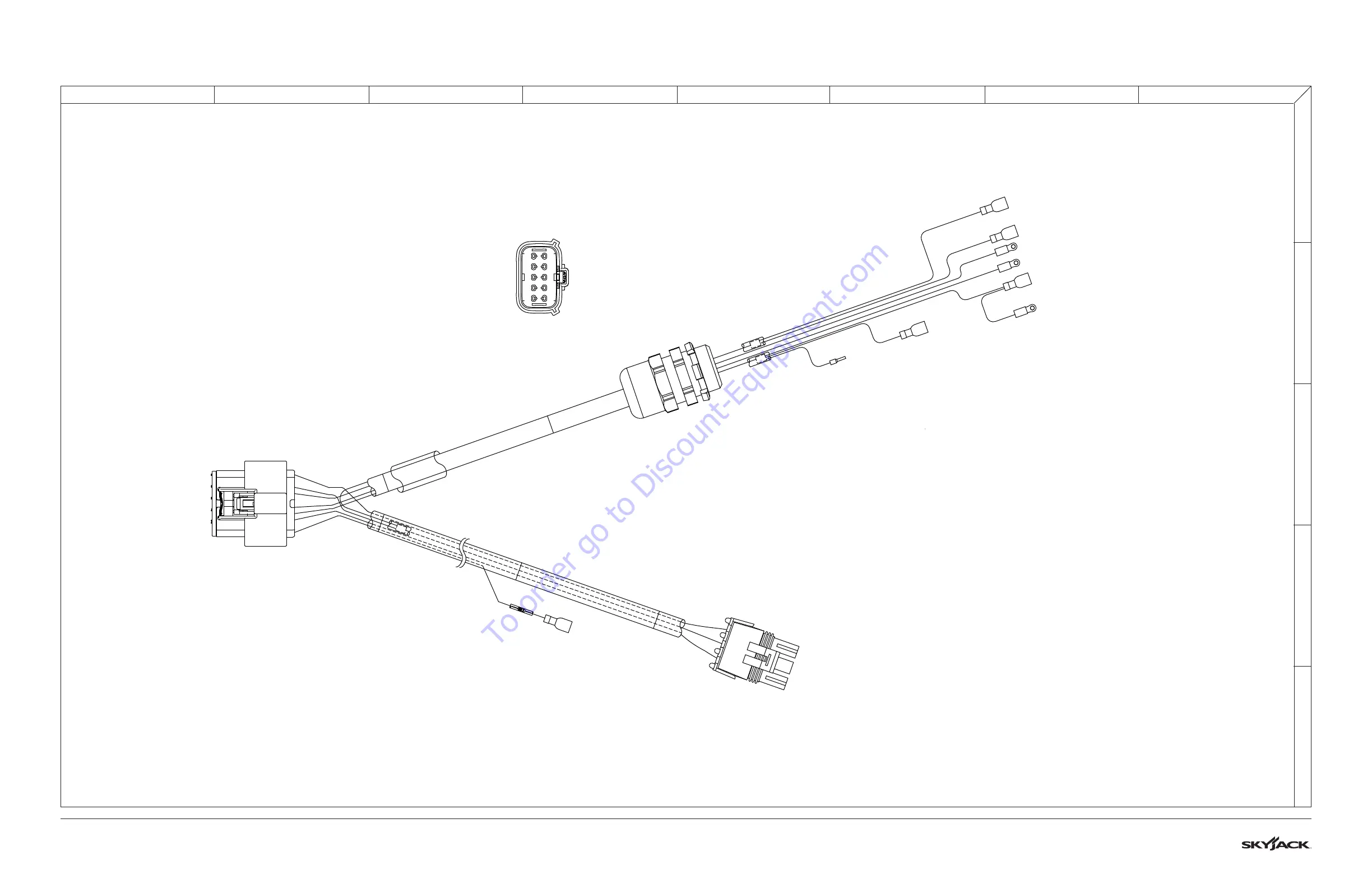

3.29 Positive Air Shut-Off Option Harness
M171529AA-2
403A
4
3
2
1
7
8
9
6
5
10
BACK VIEW
CONNECTOR
403A
02
TO ELECTRICAL PANEL
403A RED
402 GREEN
403 BLUE
02 WHITE (GROUND)
TO POSI AIR CONTROLLER
POSITIVE AIR SHUT OFF MODULE 10 PIN CONNECTOR PLUG
PIN 1 -BLACK (401) PIN 6 -BLUE (403)
PIN 2 -EMPTY PIN 7 -WHITE (02)
PIN 3 -RED (403A) PIN 8 -WHITE (408)
PIN 4 -GREEN (402) PIN 9 -EMPTY
PIN 5 -EMPTY PIN 10 -YELLOW (410)
TO SOLENOID
PIN A-WHITE (408)
PIN B-RED (403A)
PIN C-BLACK (401)
402
403A
403
403A
TO ALTERNATOR
TRIGGER
410
02
02
02
02
