152
SJ85 AJ229044ADA

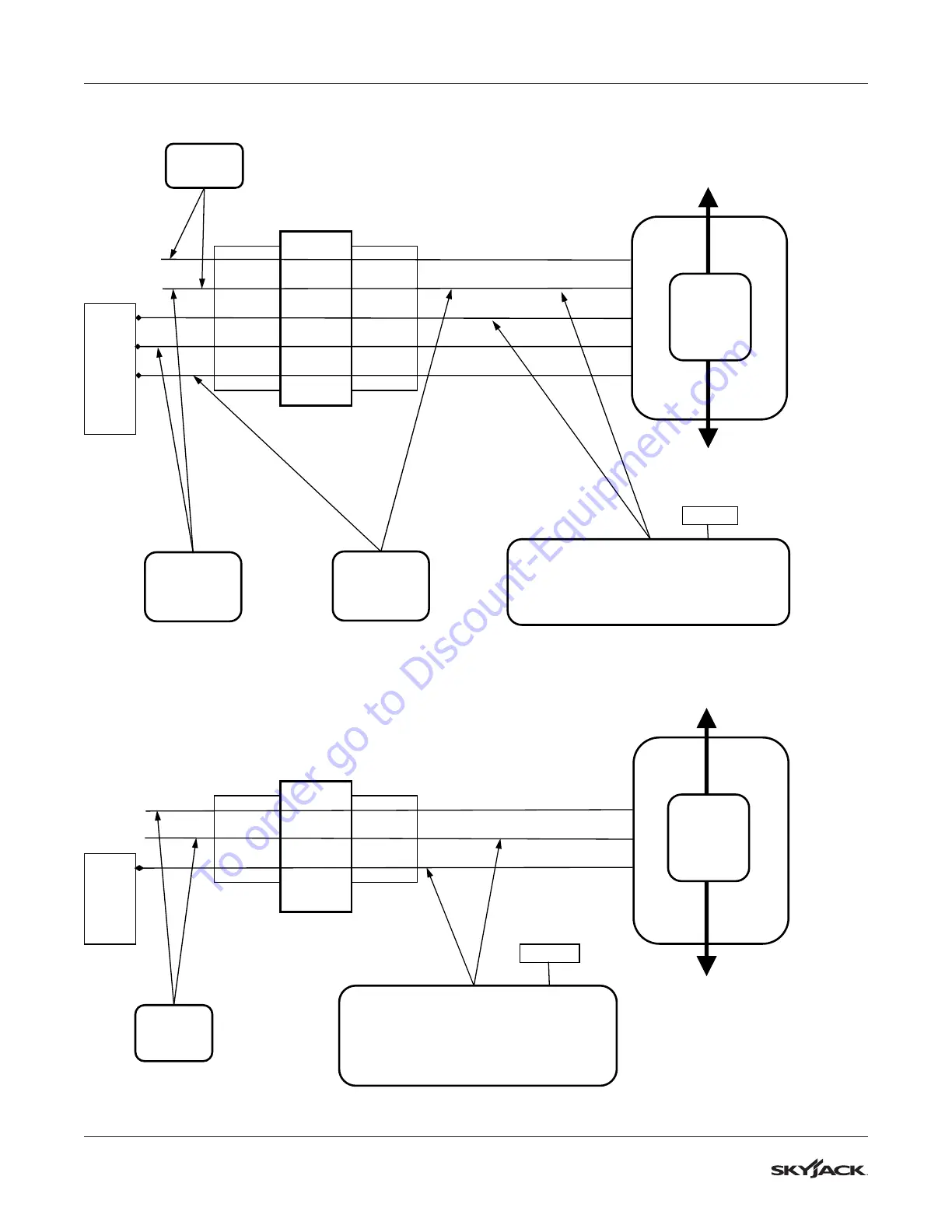

Section 5 – Procedures Platform
Drive(A2)Controller
DriveForward
04YEL POWER RED
02WHT GROUND BLK
Pin27
BLK DSIGNAL YEL
Pin17
24BLU/BLK LEFT WHT/RED
Pin18
23BLK/WHT RIGHT WHT/YEL
OCM
DriveReverse
Reference
AnalogInput
AI1
NeutralPosition=4.2‐4.8Volts
Forward=4.9‐8.5Volts@fullstroke
Reverse=4.1‐0.5Volts@fullstroke
Riser(A3)Controller
RiserUp
04RED/YEL POWER RED
02WHT GROUND BLK
Pin30
RRED/GRN RSIGNAL YEL
OCM Reference
AnalogInput
AI4
RiserDown
NeutralPosition=4.2‐4.8Volts
Forward=4.9‐8.5Volts@fullstroke
Reverse=4.1‐0.5Volts@fullstroke
Neutral
Position
4.2‐4.8
Volts
Neutral
Position
4.2‐4.8
Volts
12Volts
LeftSteer
Selected
12Volts
RightSteer
Selected
12Volts
12Volts
