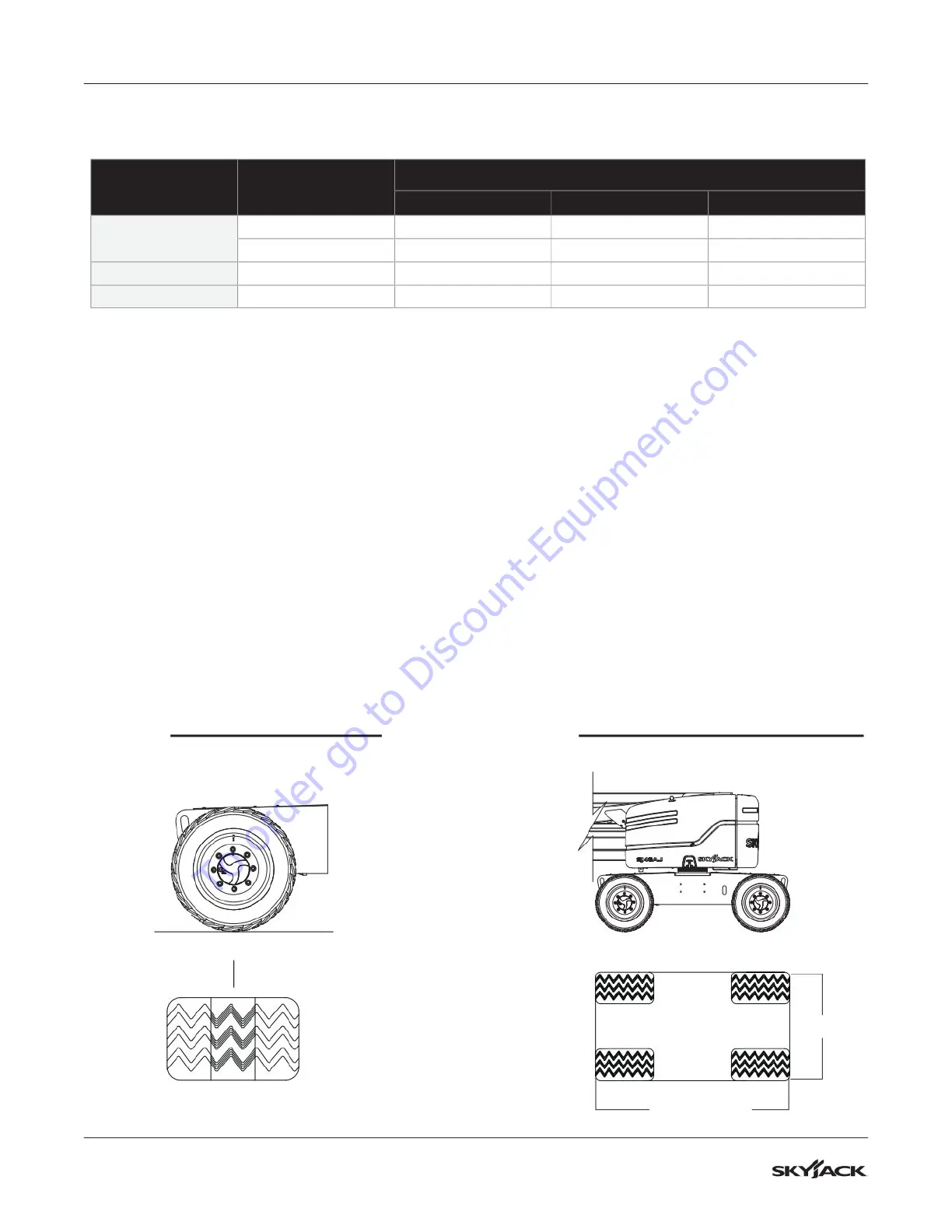

2.9 Floor Loading PressureTable
Model
Gross Aerial
Platform Weight
Total Aerial Platform Load
Wheel LCP OUP
SJ85 AJ ANSI/CSA
36,300 lb 16,535 lb 171 psi 355 psf
16 465 kg 7500 kg 1179 kPa 17 kPa
SJ85 AJ CE 16 965 kg 7500 kg 1179 kPa 17.5 kPa
SJ85 AJ AS 16 465 kg 7500 kg 1179 kPa 17 kPa
1766AA
Base Width
Base Length
Locally Concentrated Pressure (LCP)
Foot Print Area identified by test
Foot Print Area
LCP = OUP =
Wheel Load Weight of MEWP + Capacity
Foot Print Area Base Area
Overall Uniform Pressure (OUP)
Base Area = Length x Width
▪
Gross Aerial Platform Weight = Weight + platform capacity
▪
LCP – Locally Concentrated Pressure – is a measure of how hard the aerial platform tire tread presses on
the area in direct contact with the floor. The floor covering (tile, carpet, etc.) must be able to withstand more
than the indicated values above.
▪
OUP – Overall Uniform Pressure – is a measure of the average load the aerial platform imparts on the
whole surface projected directly underneath it. The structure of the operating surface (beams, etc.) must
be able to withstand more than the indicated values above.
▪
The welder option will add approximately 350 lb (158.8 kg) to total aerial platform weight and 175 lb (79.4
kg) to max. wheel load.
NOTE:
The LCP or OUP that an individual surface can withstand varies from structure to structure and is generally
determined by the engineer or architect for that particular structure.
