Skyjack SJ85 AJ Service Manual

A B C D E F G H
V
Z
Y
X
W
74
SJ85 AJ
229044ADA
M198394AE
PIN 1 - 02 - WHITE
PIN 2 - 106 - GREEN/PINK
PIN 3 - 96 - WHITE/GREY
PIN 4 - 76 - BROWN/BLUE
PIN 5 - 74 - GREEN/GREY
PIN 6 - PLUGGED
PIN 7 - PLUGGED
PIN 8 - PLUGGED
PIN 9 - PLUGGED
PIN 10 - 105 - GREEN/BROWN
PIN 11 - 104 - GREEN/ORANGE
PIN 12 - CAN H
PIN 13 - CAN L
PIN 14 - 68 - GREY
PIN 15 - 84 - WHITE/BLACK/PURPLE
PIN 16 - 00A-WHITE
PIN 17 - 103 - BLACK/PURPLE
PIN 18 - 99 - BLACK/GREY
PIN 19 - PLUGGED
PIN 20 - PLUGGED
PIN 21 - 90 - RED/GREY
PIN 22 - PLUGGED
PIN 23 - JUMPER TO PIN 24
PIN 24 - JUMPER TO PIN 23
PIN 25 - PLUGGED
PIN 1 - 77 - BROWN/GREY
PIN 4 - 57B - BROWN/GREEN
PIN 6 - 02 - WHITE
PIN 10 - 11 - WHITE/ORANGE
PIN 11 - 00B - WHITE
PIN 12 - 54A - PURPLE/RED
TWIST WITH CAN L
TWIST WITH CAN H
R1
R1
PLUG UNUSED
HOLES
JUMPER
02
74
68
77
76
11
57B
90
99
103
02
54A
105
104
106
84
96
00A
00B
CAN H
CAN L

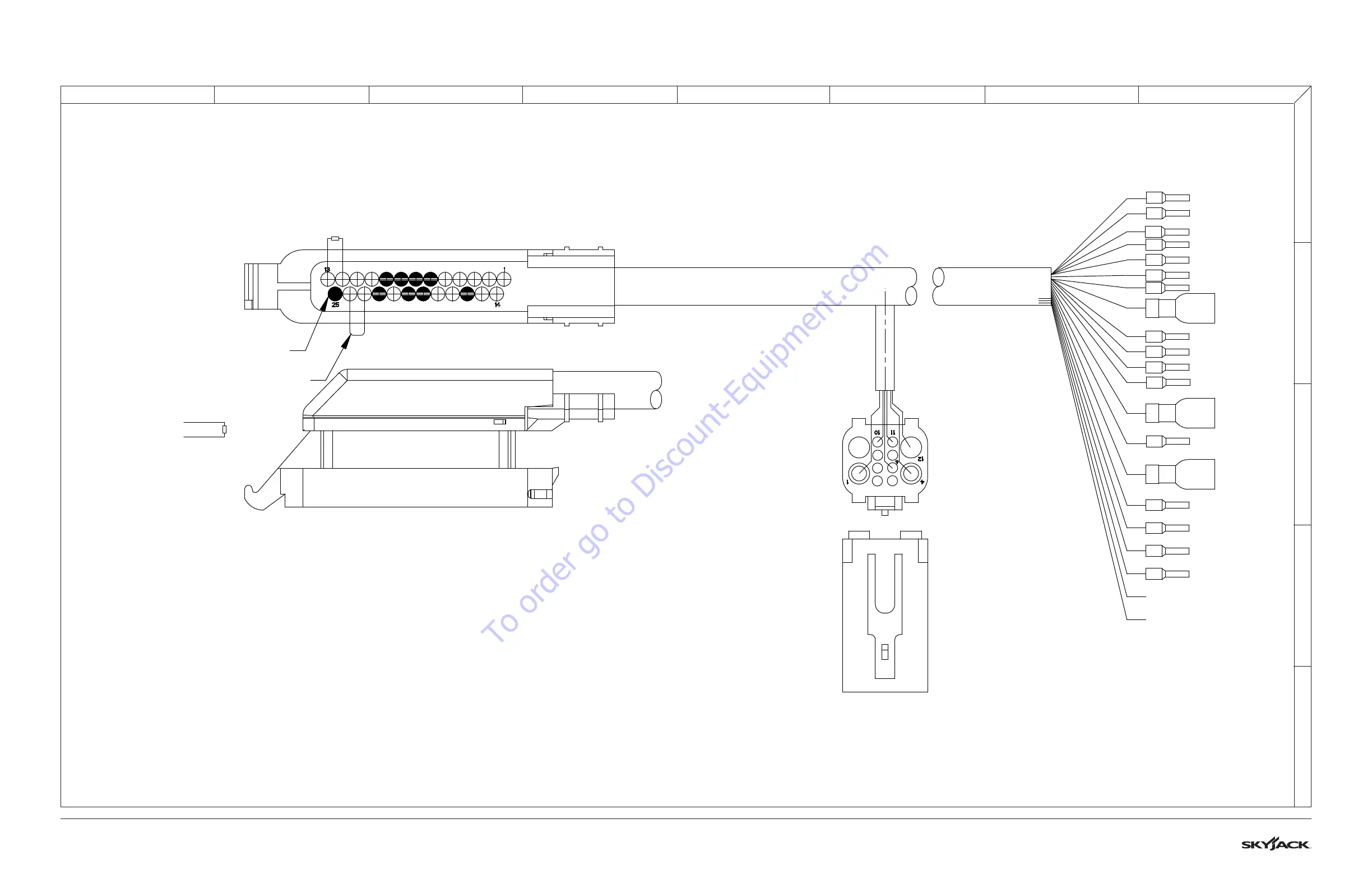

3.20 Deutz EDC-F Harness
