Skyjack SJ85 AJ Service Manual

A B C D E F G H
V
Z
Y
X
W
64
SJ85 AJ
229044ADA

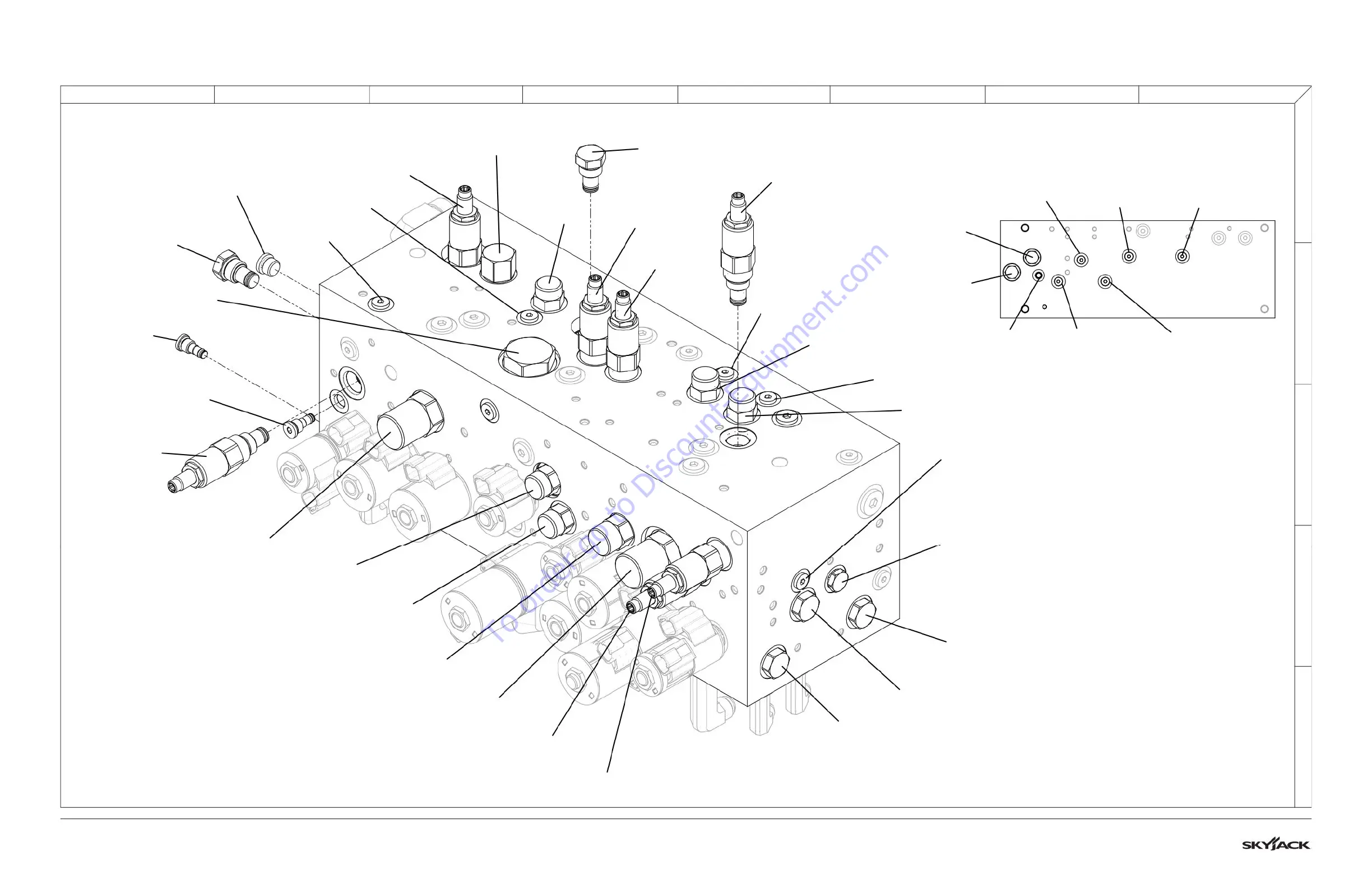

3.10 Main Manifold - Hydraulic Components
M198103AF-HC
Back
CV16
CV17
SV4
CV12
CV13
CV11
CV14
CV18
RV6
V2
V5
CV2
OR2
RV1
RV2
OR4
OR3
RV4
V4
V6
CV1
CV3
CV4
OR1
CV7
SV3
DSV4
DSV3
DSV1
FR1
RV5
DSV2
RV3
CV9
GP1
PR2
OR6
Orifice 0.020”
CV6
Main LS Check Valve
CV8
Level Override
Check Valve
OR2
Orifice
RV6
Boom Extend Relief Valve
CV9
Level Override Check Valve
RV3
Platform Level
Relief Valve
DSV2
Boom Extend Compensator Valve
DSV1
Swing Compensator Valve
FR1
Flow Regulator Valve
DSV3
Boom Lift Compensator Valve
DSV4
Riser Compensator Valve
RV5
Boom Lift Relief Valve
PR2
80 psi Pressure Reducing Valve
CV7
Jib/Platofm Return Check Valve
SV3
Riser Shuttle Valve
CV4
Main LS Check Valve
CV3
Main LS Check Valve
OR1
Orifice 0.090”
OR4
Orifice 0.020”
OR3
Orifice 0.020”
RV4
Riser Relief Valve
V6
Pilot Operated Valve
RV2
Swing Drive
Relief Valve
RV1
Main Manifold
Relief Valve
CV1
Auxiliary Pump Check Valve
V5
Pilot Operated
Valve
V2
Pilot Operated Valve
V4
Pilot Operated
CV2
Main Inlet Check Valve
CV18
Platform/Jib Load
Sense Check Valve
CV14
Extend Load Sense
Check Valve
CV12
Riser Shuttle LS
Check Valve
CV11
Swing Drive Load
Sense Check Valve
SV4
Boom Lift
Shuttle Valve
CV13
Lift Load Sense
Check Valve
CV17
Riser Down Suction
Check Valve
CV16
Boom Lift Suction
Check Valve
OR5
Orifice 0.020”
OR5
