209
SJ85 AJ
229044ADA

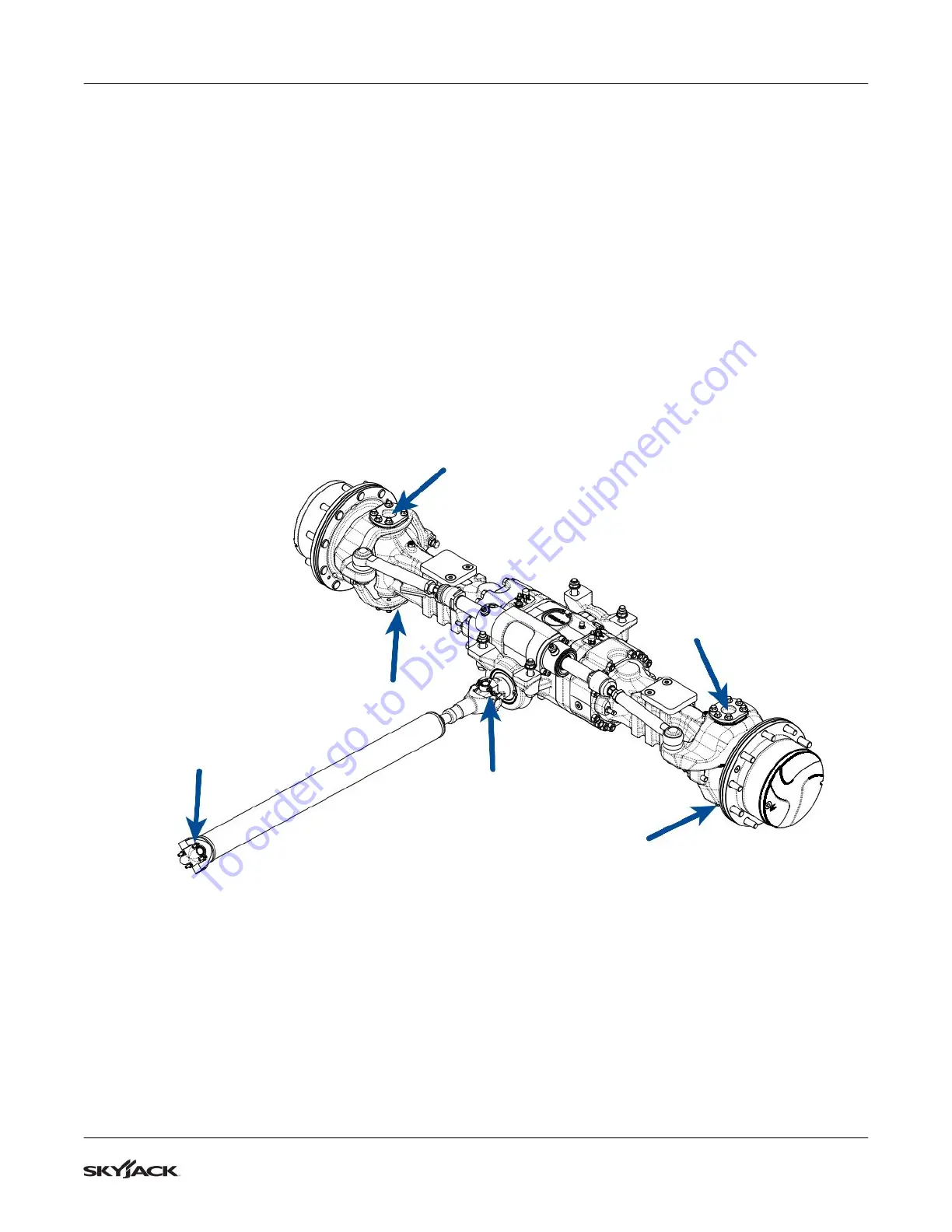

Grease Points
Section 5 – Procedures
5.10-
3
Greas
e the A
xles
1.
Open the axle cover plates and locate the grease fittings.
2.
Pump grease into the grease fittings.
5.10-
4
Greas
e the D
rive S
haft
1.
Locate the grease fittings on the drive shaft u-joints, and pump grease into the fittings.
To
order
go
to
Discount-Equipment.com
