Skyjack SJ85 AJ Service Manual

A B C D E F G H
V
Z
Y
X
W
70
SJ85 AJ
229044ADA

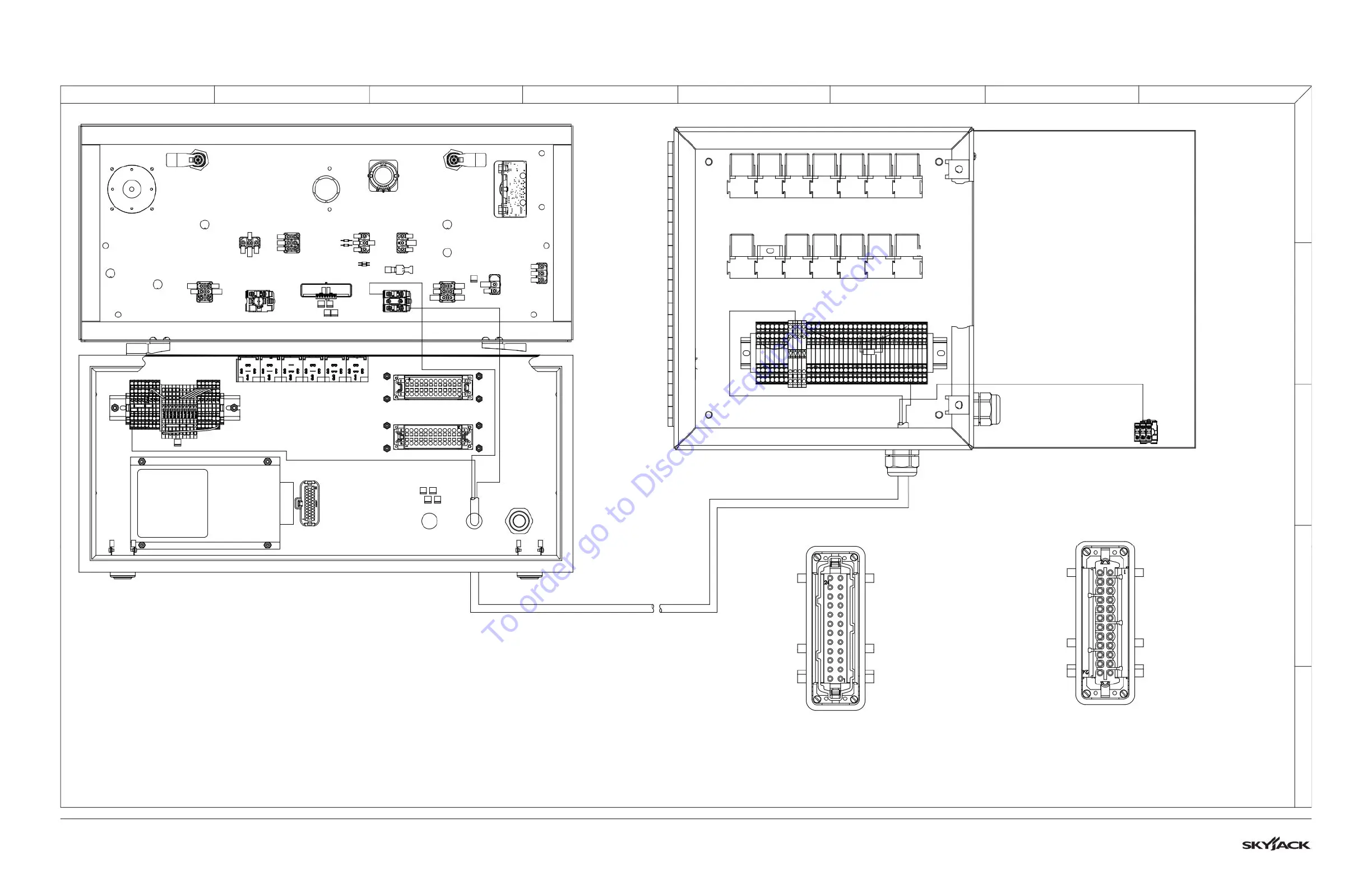

3.16 Platform to Base Control Cables
M168784AA_M165096AC_M165098AC
POSITION 1 - WHITE
POSITION 2 - WHITE
POSITION 3 - WHITE/ORANGE
POSITION 4 - BLUE
POSITION 5 - WHITE/BLACK
POSITION 6 - BLUE/GREEN
POSITION 7 - GREEN
POSITION 8 - ORANGE/RED
POSITION 9 - BLACK/RED
POSITION 10 - BLUE/RED
POSITION 11 - BLUE/PURPLE
POSITION 12 - GREEN/RED
POSITION 13 - YELLOW/PURPLE
POSITION 14 - BROWN/GREEN
POSITION 15 - YELLOW/BLUE
POSITION 16 - WHITE/BLUE
POSITION 17 - GREEN/GREY
POSITION 18 - BROWN/BLUE
POSITION 19 - RED/BLUE
POSITION 20 - BROWN/PURPLE
POSITION 21 - GREY/BLUE
POSITION 22 - BLACK/YELLOW
POSITION 23 - BLUE/WHITE/YELLOW
POSITION 24 - BLUE/WHITE/BLACK
FEMALE
02 - WHITE
07A - BLACK
10 - GREEN
MALE
POSITION 1 - PURPLE/BLACK
POSITION 2 - RED
POSITION 3 - RED
POSITION 4 - BLUE/WHITE
POSITION 5 - RED/YELLOW/BLACK
POSITION 6 - ORANGE
POSITION 7 - BLACK
POSITION 8 - ORANGE/BLUE
POSITION 9 - BLACK/WHITE
POSITION 10 - BLUE/BLACK
POSITION 11 - BLUE/YELLOW
POSITION 12 - RED/GREEN
POSITION 13 - RED/WHITE
POSITION 14 - GREEN/BLACK
POSITION 15 - GREEN/WHITE
POSITION 16 - ORANGE/BLACK
POSITION 17 - ORANGE/WHITE
POSITION 18 - RED/PURPLE
POSITION 19 - WHITE/RED/BLACK
POSITION 20 - YELLOW/ORANGE
POSITION 21 - YELLOW/PINK
POSITION 22 - PINK/WHITE
POSITION 23 - PINK/PURPLE
POSITION 24 - PINK/BLACK
02
07A
02-WHITE
07A-BLACK
10GREEN
10
02
4
3
NOEM
2
1
NCLB
2
1
NC
S2-KSW
07A
07A
10
10
S4-ESTOP
Platform Control Box
Base Control Box
Cable through E-Chain
R5=51
24A 23A 02
02
02 02
11
09
17
02 02 02
77
103
76
55 54A 54A
41 40
39 38 33 32
29 20 21
1060
60 01
01
14 13
74
09
09B
121 121 165
59
BLACK
GREEN
Control Cable “C”
Control Cable “D”
Cable “C”
Cable “D”
Cable “C”
Cable “D”
