SJ85 AJ 229044ADA

Platform Section 5 – Procedures

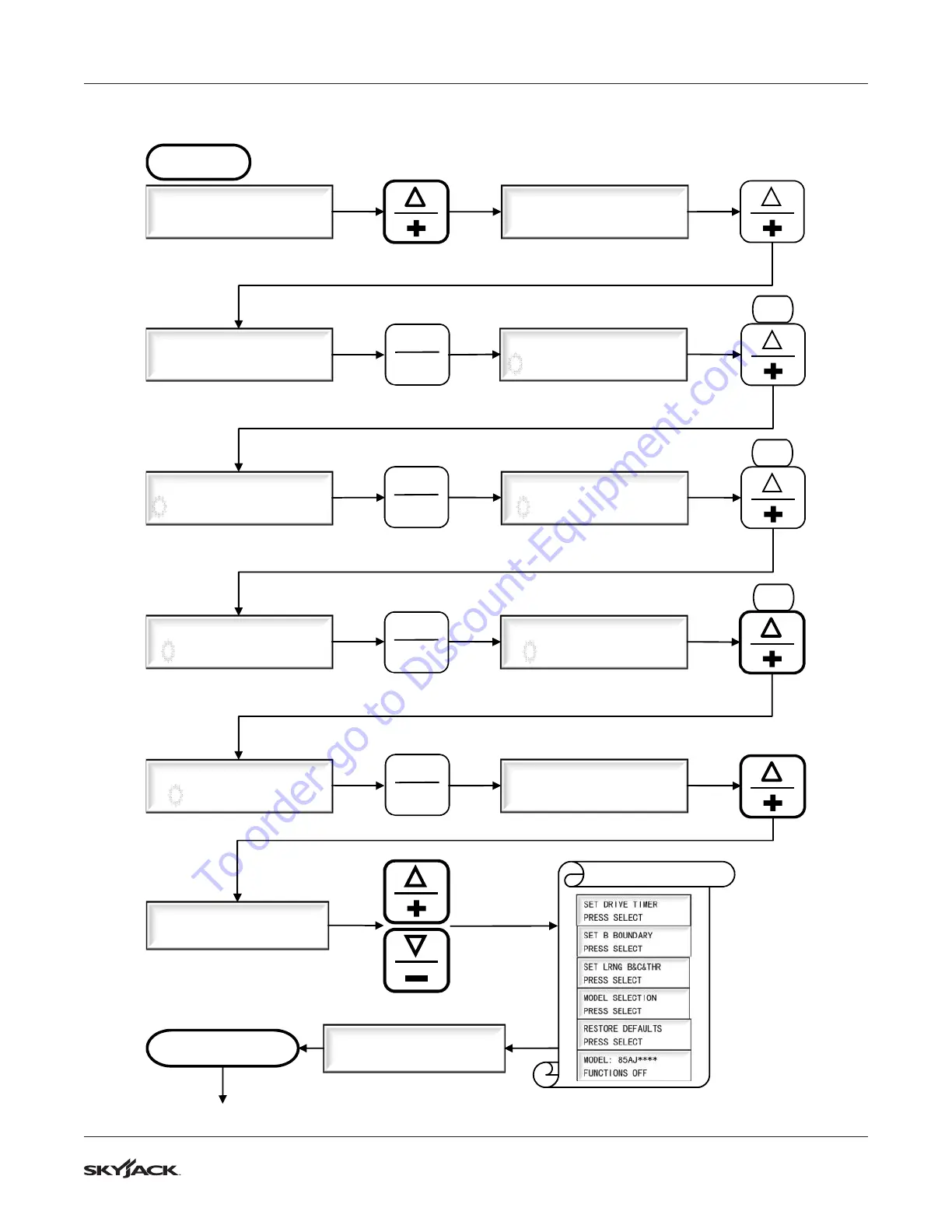

5.1-5 How to Unlock and Modify SCM Settings

SELECT

MODEL: 85AJ****

FUNCTIONS OFF

SMB1-101**(SOFWARE REV)

SN: *****(SERIAL NUMBER)

STARTSCREEN

UNLOCK SETUP?

PRESS SELECT

ENTER PASSWORD

0**

ENTER PASSWORD

5**

ENTER PASSWORD

51*

ENTER PASSWORD

50*

ENTER PASSWORD

510

ENTER PASSWORD

519

SETUP UNLOCKED

PRESS – OR +

SET DRIVE TIMER

PRESS SELECT

MODEL: 85AJ****

FUNCTIONS OFF

Continuedonnextpage

SELECT
