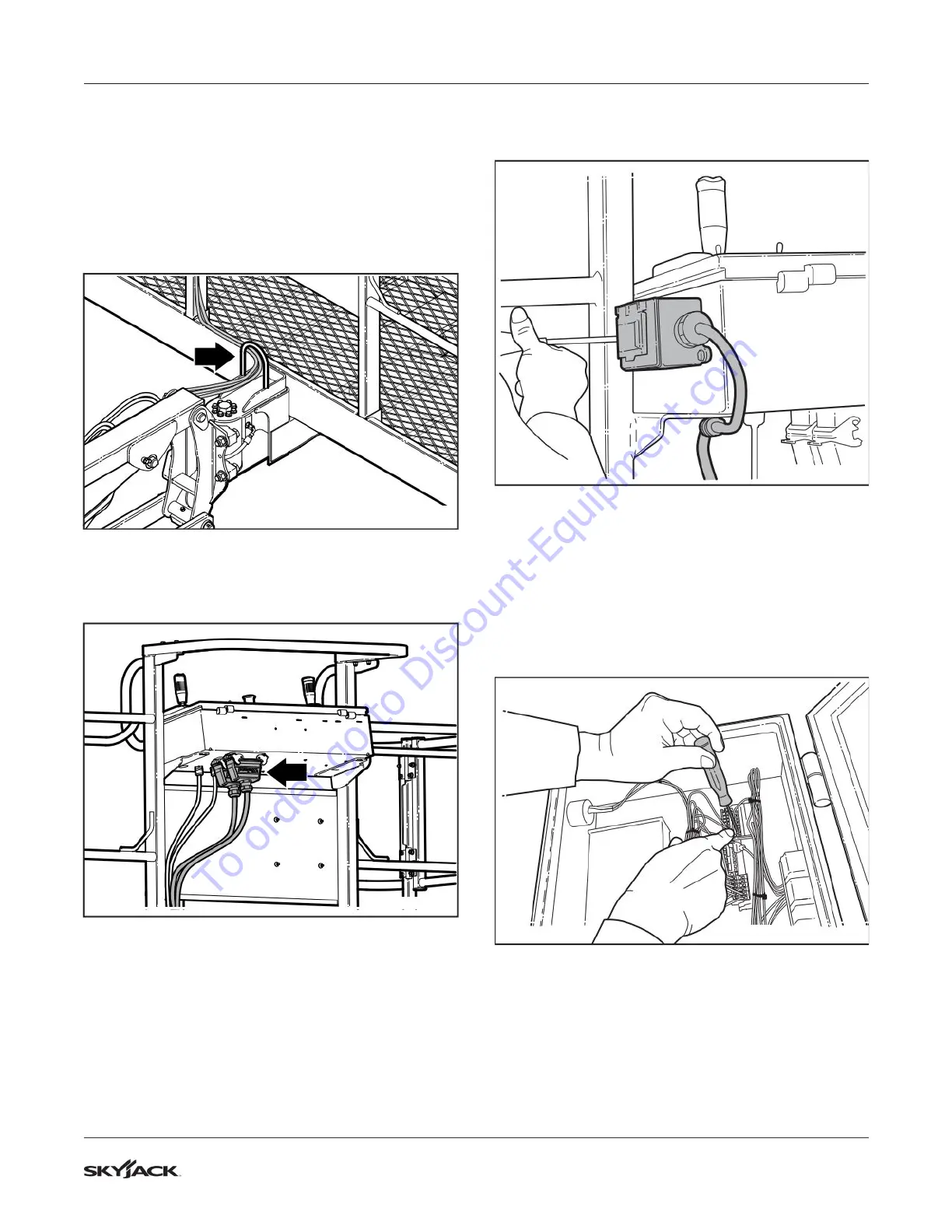

Platform Section 5 – Procedures
5.1-9 Remove and Replace the Platform
1. Lower the platform until it is resting on the
ground.
2. Before removing the platform from the machine,
the electrical harnesses routed across the
platform swivel joint must be disconnected.
M62018AA
3. Disconnect the two 24-pin control cables from
the bottom of the control box.
M62067AA
4. Remove the auxiliary AC receptacle box (if
equipped). Remove the cable clamps.
M62191AA
5. Open the control box lid to disconnect the jib
and platform rotate harness. Remove the tie
wraps and make note of the wire labels and
locations for reinstallation.
6. To release each wire, insert a small flat
screwdriver into the slot beside it in the terminal
strip.
02
02
02
60/04
20D/41
34A/34
34A/35
36A
/36
36A/37
82-/118
M62321AA
