SJ85 AJ
229044ADA

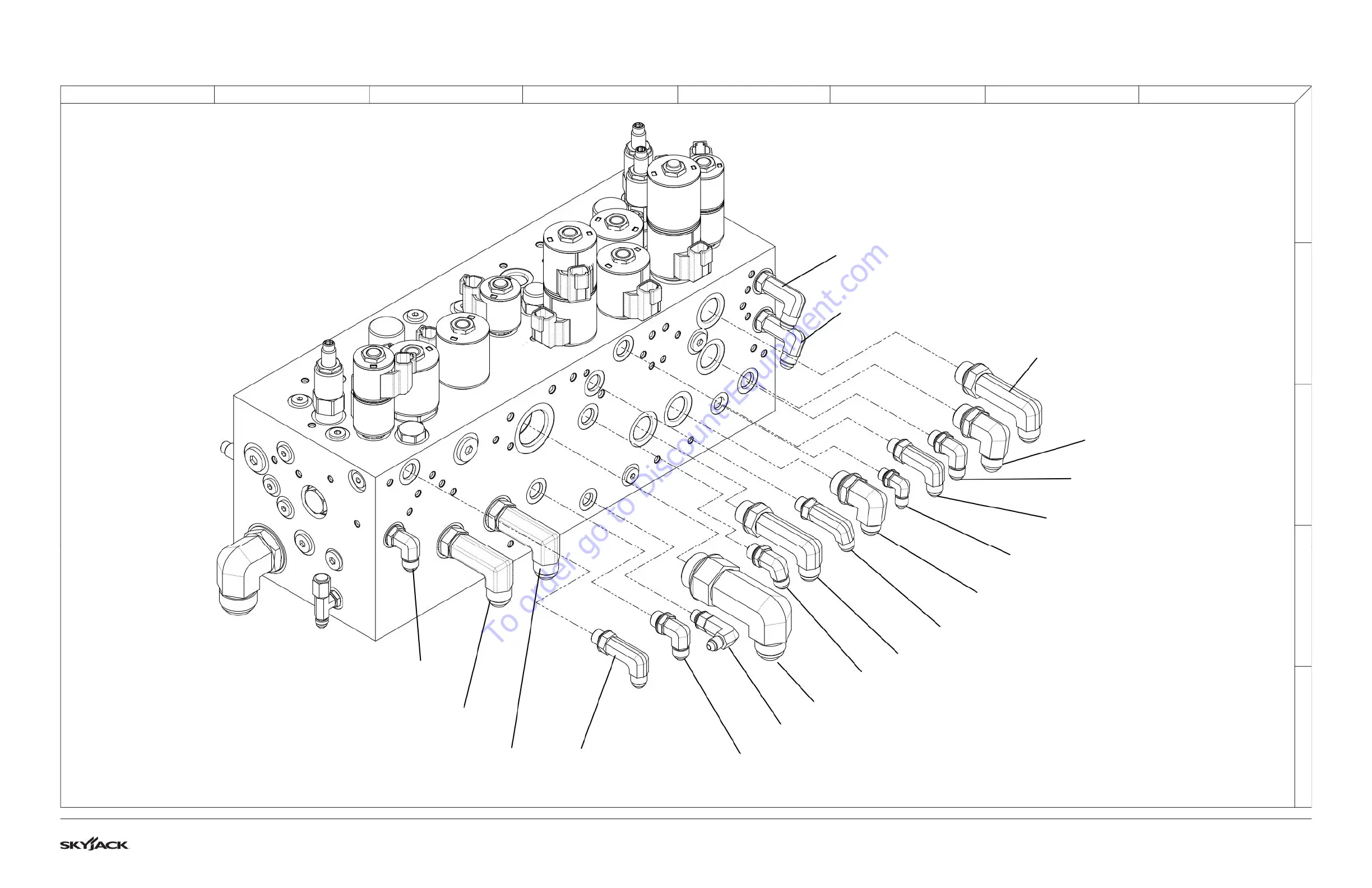

3.9 Main Manifold - Hose Port Identification
M198103AF-PI
PLA
PLB
P2
EB
EA
P1
BLS
RB
RA
P
LB
LA
LBP
PT
RSA
RSB
SA
SB
LS1
T
T
To Hydraulic Tank (T8)
LS1
To System Pump
PLB
To Slave Cylinder (Retract)
EB
To Extention Cylinder (Extend)
EA
To Extension Cylinder (Retract)
PLA
To Slave Cylinder (Extend)
SA
To Steer Cylinder (Left)
SB
To Steer Cylinder (Right)
RSA
To Riser Cylinder (Extend)
RSB
To Riser Cylinder (Retract)
PT
To Jib Manifold (4A)
LPB
To Lift Cylinder
P
To Jib Manifold (3B)
LA
To Lift Cylinder (Extend)
RA
To Swing Drive (Right)
LB
To Lift Cylinder (Retract)
RB
To Swing Drive (Left)
P1
High Pressure Filter
BLS
To Brake Manifold (LS)
P2
To Emergency Pump
