LD301 - Operation and Maintenance Instruction Manual
5.12
SPARE PARTS: LD300L
ØN GROUP NORM
GASKET
DRAIN
VALVE
TEFLON COPPER GRAFOIL
STAINLESS
STEEL 316L
1”
ALL
ANSI-B16.5
400-0425 400-0426 400-0427
400-0792
1.1/2”
ALL
400-0428 400-0429 400-0430
2”
ALL
400-0431 400-0432 400-0433
3”
ALL
400-0434 400-0435 400-0436
4”
ALL
400-0437 400-0438 400-0439
DN25
ALL
EN 1092-1/2501
400-0440 400-0441 400-0442
DN40
ALL
400-0443 400-0444 400-0445
DN50
ALL
400-0446 400-0447 400-0448
DN80
ALL
400-0449 400-0450 400-0451
DN100 PN10/16
400-0452 400-0453 400-0454
DN100 PN25/40
400-0455 400-0456 400-0457
Table 5.3 – LD301L – Codes to the Spare parts of the Gasket
Sealing
Gasket
Drain Valve
Sealing
Gasket
Housing
Sealing
Gasket
MOUNTING WITH
FF FLANGE
MOUNTING WITH
RF FLANGE
MOUNTING WITH
PANCAKE
Drain Valve
Housing
Drain Valv
e
Housing

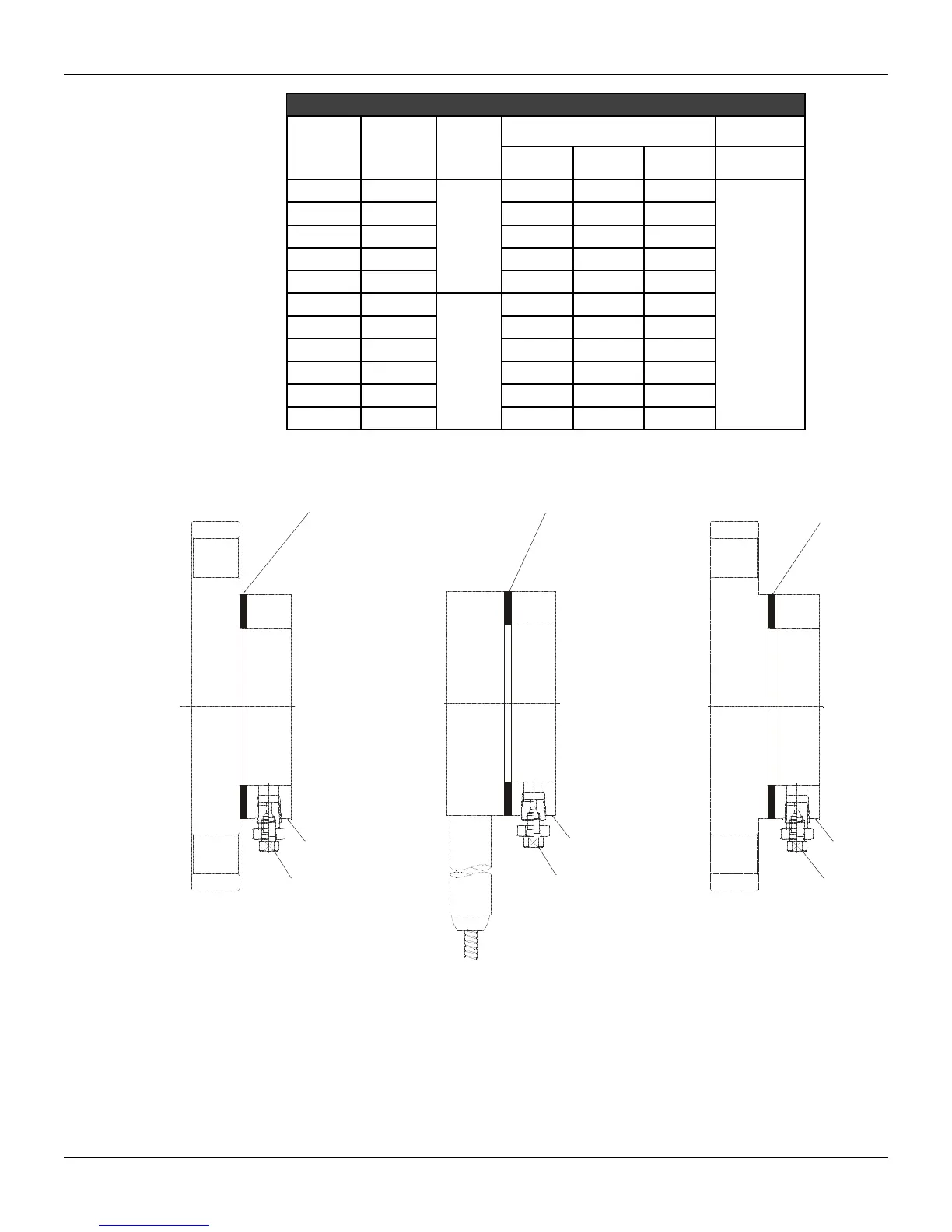

Figure 5.6 – Exploded View - Mounting with Gasket and Drain Valve
