RTJ SPARE PARTS: LD300L (without extension)
ØN GROUP NORM RING
METALLIC RING
DRAIN
VALVE
STAINLESS
STEEL 316L
STAINLESS
STEEL 316L
1”
150
ANSI B 16.20 RTJ
R15 400-0887
400-0792
300 R16 400-0888
600 R16 400-0888
1500 R16 400-0888
2500 R18 400-0889
1.1/2”
150 R19 400-0890
300 R20 400-0891
600 R20 400-0891
1500 R20 400-0891
2500 R23 400-0893
2”
150 R22 400-0892
300 R23 400-0893
600 R23 400-0893
1500 R24 400-0894
2500 R26 400-0895
3”
150 R29 400-0896
300 R31 400-0897
600 R31 400-0897
4”
150 R36 400-0900
300 R37 400-0901
600 R37 400-0901

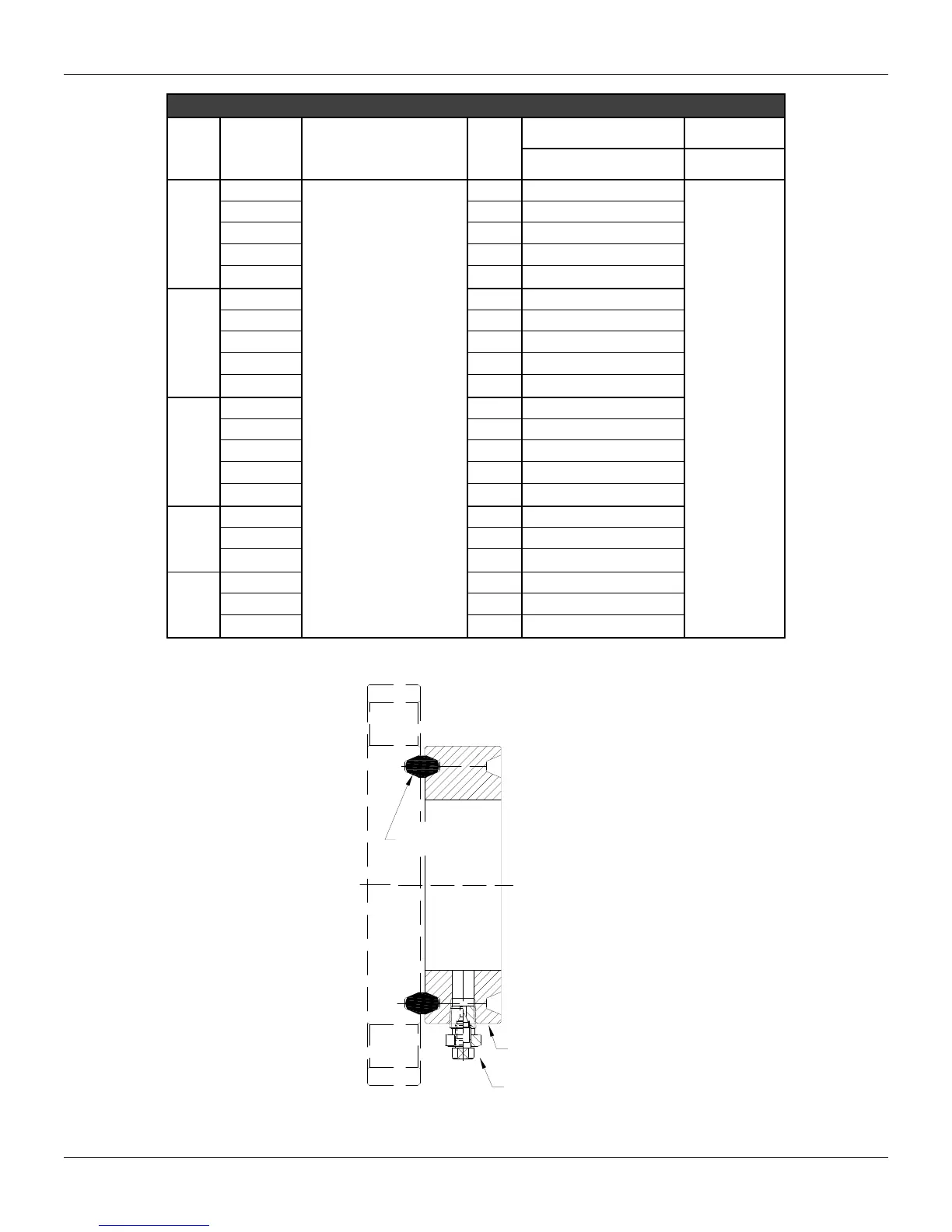

Table 5.4 – LD301L – Codes to the SST Metallic O’Ring
DRAIN VALVE
O-RING
HOUSING
Figure 5.7 – Exploded View of LD300L (without extension)
