LD301 – Operation and Maintenance Instruction Manual
6.2
Functional Specifications
Failure Alarm
(Diagnostics)
In case of sensor or circuit failure, the self-diagnostics drives the output to 3.6 or 21.0 mA, according to the
user's choice and NAMUR NE43 specification. Detailed diagnostic through HART
©
communication.

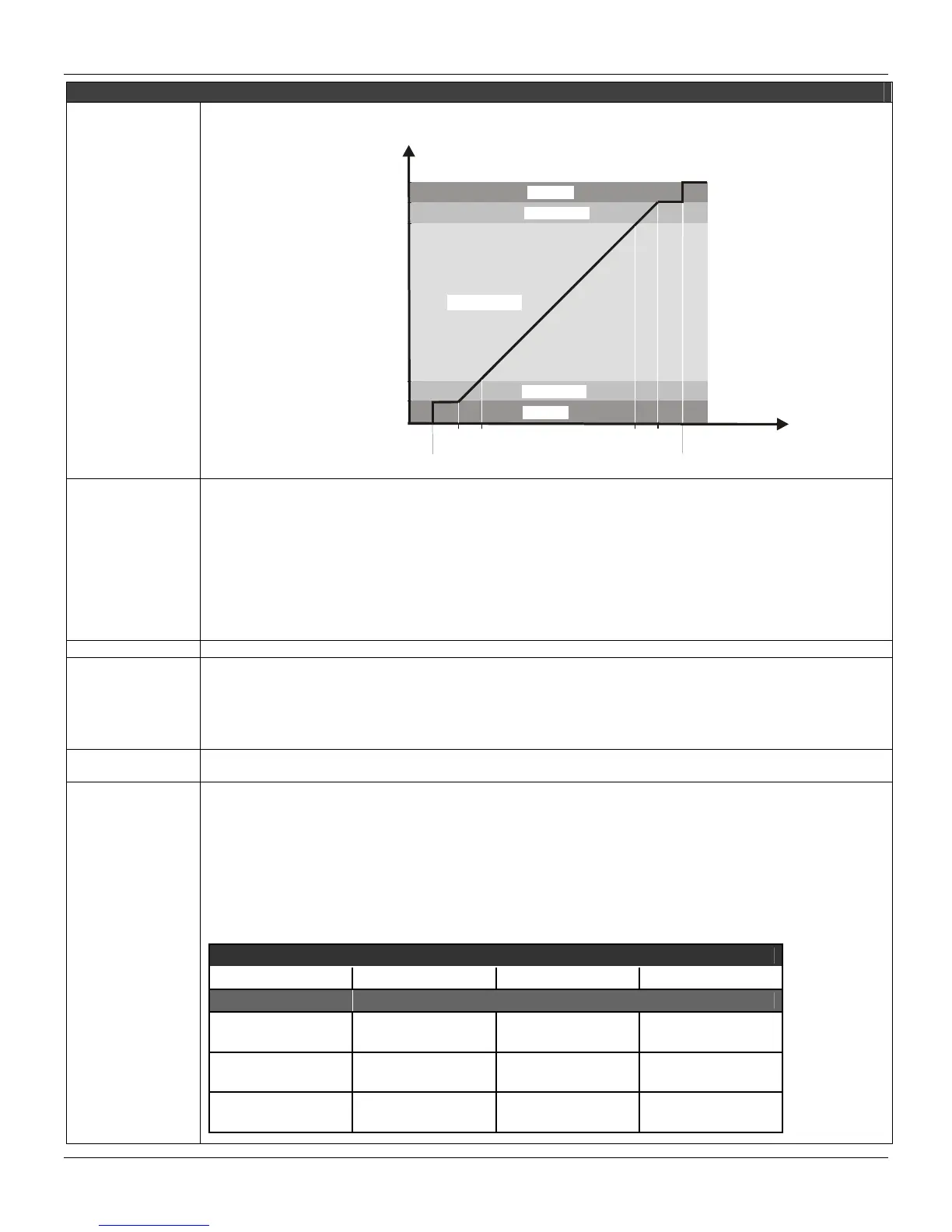

Output Current
Saturated
Saturated
Failure
Set Range
Pressure (%)
Failure
21.0
20.5
20.0
4.0
3.6
3.8
-1.25%
0%
-1.25% 100%
103.25%
Maximum Detected
Pressure
Minimum Detected
Pressure
Temperature
Limits
Ambient: -40 a 85 °C (-40 a 185 °F)
Process: -40 a 100 °C (-40 a 212 °F) (Silicone oi l)
-40 a 85 °C (-40 a 185 °F) (Halocarbon and Ine rt oil)
0 a 85 °C ( 32 a 185 °F) (Inert oil)
-20 a 85 °C ( -4 a 185 °F) (Inert Krytox Oil and Fomblim oil)
-25 a 100 °C (-13 a 212 °F) ( Viton O’ring)
-40 a 150 °C (-40 a 302 °F) (Level Model)
Storage: -40 a 100 °C (-40 a 212 °F)
Display: -20 a 80 °C ( -4 a 176 °F)
-40 a 85 °C (-40 a 185 °F) (Without damange)
Turn
-
on Time
Performs within specifications in less than 3 seconds after power is applied to the transmitter.
Configuration
By digital communication (HART
®
protocol) using the configuration software CONF401, DDCON100 (for
Windows), or HPC301 and HPC401 (for Palm). It can also be configured using DD and FDT/DTM tools, and
can be partially configured through local adjustment.
In order to keep the equipment configuration safe, the LD301 has two kinds of write protection in its memory.
One is via software and the other a hardware mechanism selected by a key with priority over the software.
Volumetric
Displacement
Less than 0.15 cm
3
(0.01 in
3
)
Overpressure
and
Static Pressure
Limits (MWP –
Maximum
Working
Pressure)
From 3.45 kPa abs. (0.5 psia)* to:
5 bar (70 psi) for range 0
80 bar (1200 psi) for range 1
160 bar (2300 psi) for ranges 2, 3 & 4
320 bar (4600 psi) for models H2 to H4
400 bar (5800 psi) for range 5
520 bar (7500 psi) for range 6
* except the LD301A model
Flange Test Pressure: 68.95 MPa (1000 psi)
ANSI B 16.5 Pressure Class
Class 150 300 600
Temperature Pressure Limit
-29 a 38 °C
1893 kPa
(274,6 psi)
4962 kPa
(719 psi)
9924 kPa
(1439.4 psi)
93 °C
1618 kPa
(234.7 psi)
4275 kPa
(620 psi)
8551 kPa
(1240.2 psi)
149 °C
1481 kPa
(214.8 psi)
3864 kPa
(560.4 psi)
7717 kPa
(1119.3 psi)
