SMART MX Series Instruction For Installation And Maintenance

CHAPTER1
WELCOME
5 smarttech.com/kb/171257
Model Diagonal Active touch area Active image area
SBID-MX275 74 1/2" (189.3 cm) 66 1/2" × 38" (168.8 cm ×
96.6cm)
65" × 36 1/2" (165 cm × 92.8cm)
SBID-MX286 85 5/8" (218.4 cm) 76 3/8" × 43 3/4" (194.1 cm ×
111.2cm)
74 5/8" × 42" (189.5 cm ×
106.6cm)
Pens
The display comes with two pens.
The display’s bottom frame includes magnetic holders for the pens. Remove a pen from its holder
and use the pen to draw digital ink.
CAUTION
When you return a pen to the magnetic holder, make sure it’s centered in its holder to keep it
from falling and being damaged.

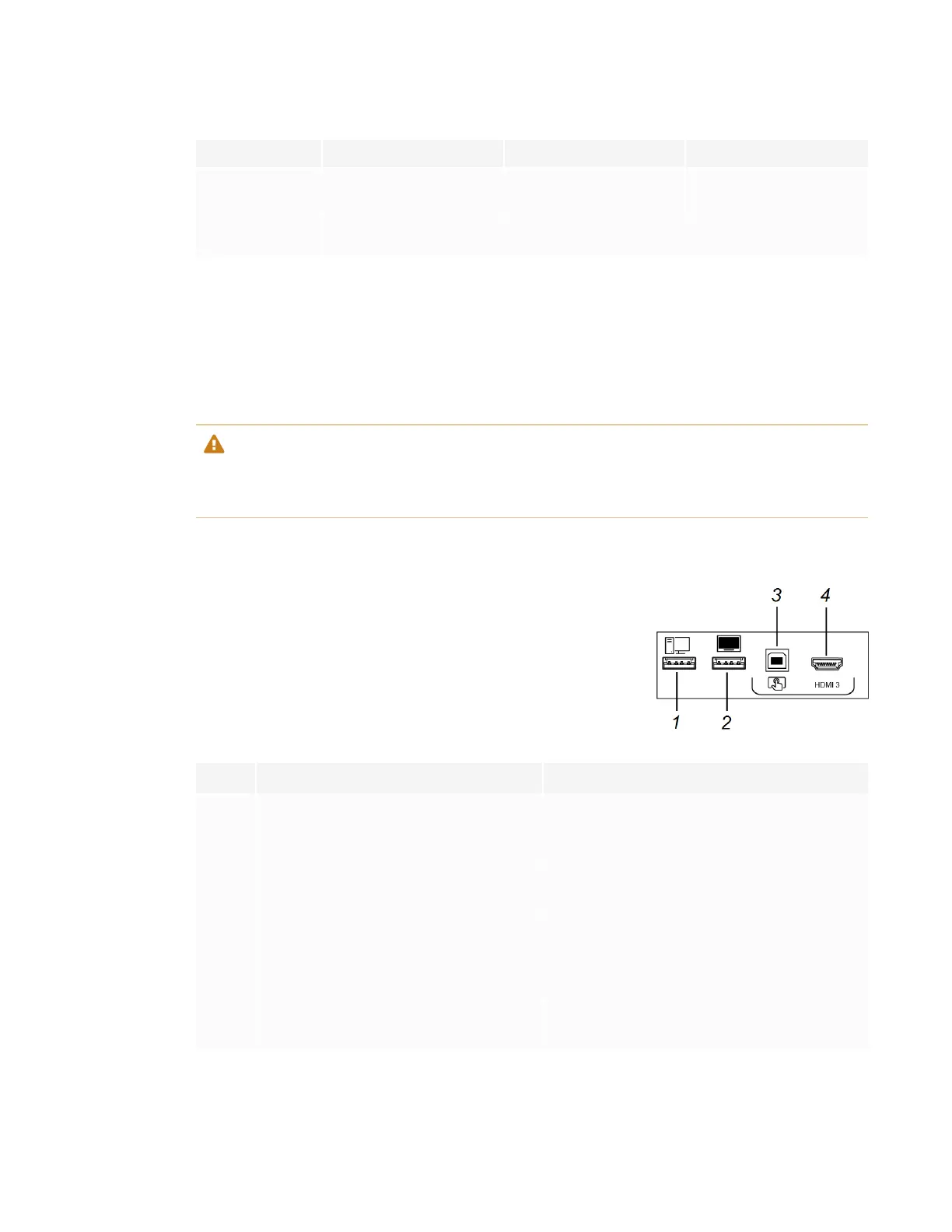

Front connector panel
The front connector panel includes connectors for USB
peripherals and a computer or other input source.
No. Name Procedure
1 USB Type-A connector Connect USB drives and other devices that
you want to use with the currently selected
input source.
2 USB Type-A connector Connect a USBdrive to update the display’s
firmware.
3 USB Type-B connector
Connect a USB cable to the display and
computer to provide touch control of the
computer connected to HDMI 3.
4 HDMI 3 input connector Connect a computer or other input source to
the display (see page21).

SMART MX Series Specifications

General

Aspect Ratio	16:9
RAM	4 GB
Internal Storage	32 GB
Refresh Rate	60 Hz
Response Time	8 ms
Brightness	350 cd/m²
Contrast Ratio	4000:1
Dimensions (W x H x D)	Varies by screen size
Weight	Varies by screen size
Screen Sizes	65", 75", 86"
Operating System	Android
Connectivity	HDMI, USB, Wi-Fi, Bluetooth
Audio	Built-in speakers
Touch Points	20
Viewing Angle	178°
VESA Mount	Yes
Display Type	LED-backlit LCD
