SMART MX Series Instruction For Installation And Maintenance

CHAPTER3
CONNECTING POWER, CABLES AND DEVICES
22 smarttech.com/kb/171257
Connecting to the side connector panel

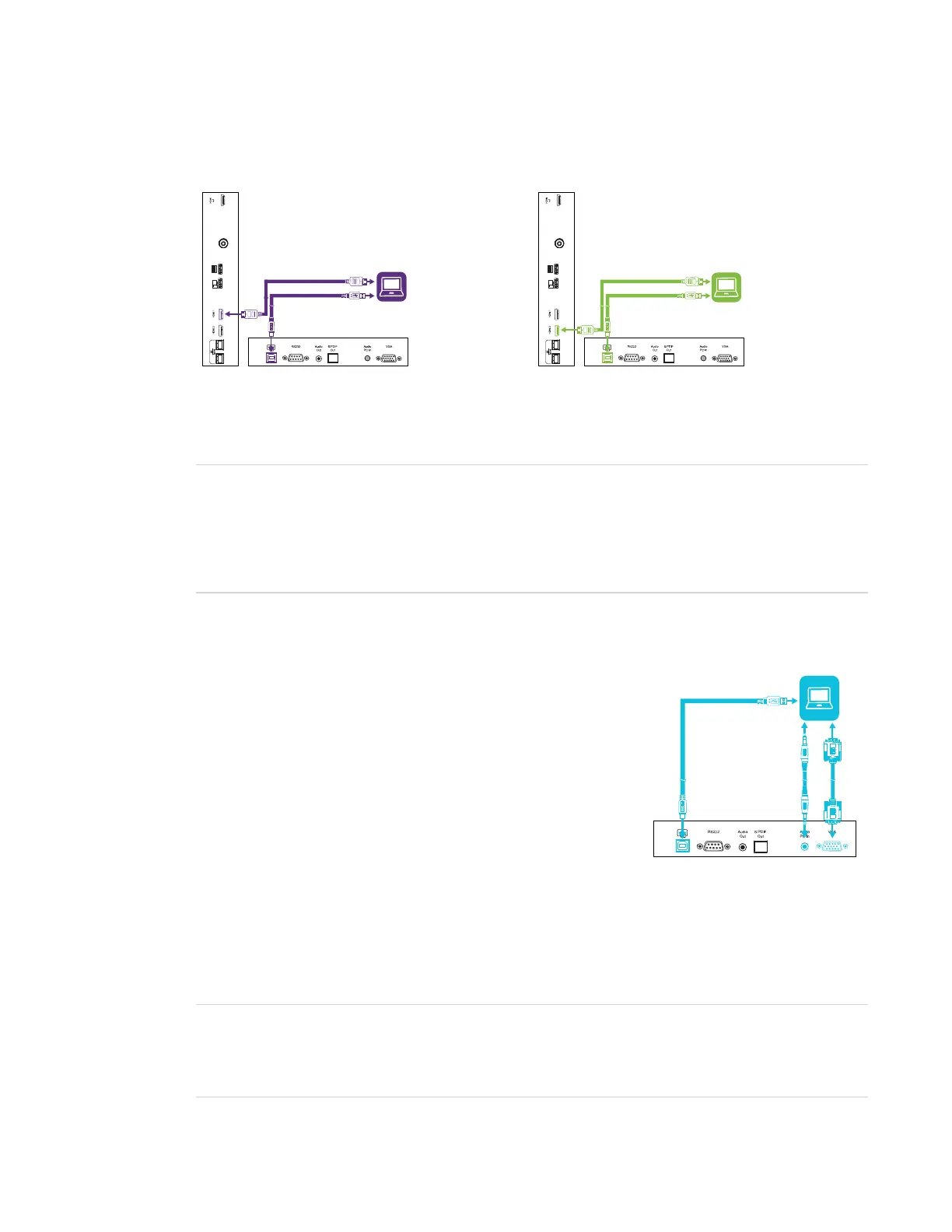

The side connector panel includes two HDMI video connectors: HDMI 1 and HDMI 2. Both
connectors can accommodate an HDMI cable for video and audio, and both support HDMI 2.0.
NOTES
l The USB Type-B connector for touch control is located on the bottom connector panel. See
Connecting to the bottom connector panel below.
l You can connect a wireless USB keyboard and mouse to the two USB Type-A connectors.
Connecting to the bottom connector panel
The bottom connector panel includes a video connector and USBconnector:
l VGA: This connector can accommodate a VGA cable for video.
l USBType-B: This connector can accommodate a USB cable for touch control for computers
connected to HDMI 1, HDMI 2 or VGA.
NOTE
When connecting a computer to the VGA connector, use the Stereo 3.5 mm in connector for
audio.

SMART MX Series Specifications

General

Aspect Ratio	16:9
RAM	4 GB
Internal Storage	32 GB
Refresh Rate	60 Hz
Response Time	8 ms
Brightness	350 cd/m²
Contrast Ratio	4000:1
Dimensions (W x H x D)	Varies by screen size
Weight	Varies by screen size
Screen Sizes	65", 75", 86"
Operating System	Android
Connectivity	HDMI, USB, Wi-Fi, Bluetooth
Audio	Built-in speakers
Touch Points	20
Viewing Angle	178°
VESA Mount	Yes
Display Type	LED-backlit LCD
