SMART MX Series Instruction For Installation And Maintenance

CHAPTER3
CONNECTING POWER, CABLES AND DEVICES
27 smarttech.com/kb/171257
Front connector panel

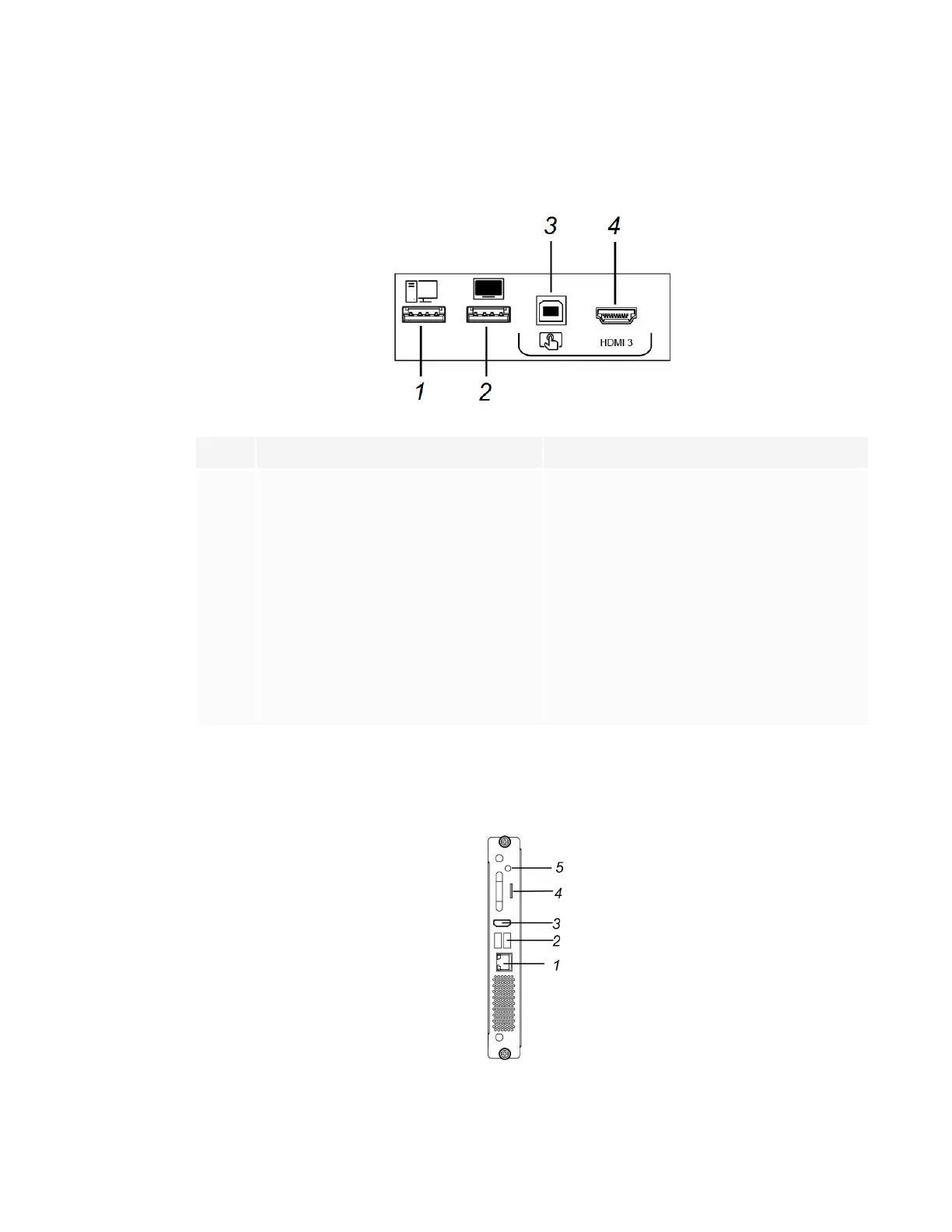

The following diagram and table present the connectors on the display’s convenience panel:
No. Name Procedure
1 USB Type-A connector Connect USB drives and other devices that
you want to use with the currently selected
input source.
2 USB Type-A connector Connect a USBdrive to update the display’s
firmware.
3 USB Type-B connector
Connect a USB cable to the display and
computer to provide touch control of the
computer connected to HDMI 3.
4 HDMI 3 input connector Connect a computer or other input source to
the display (see page21).
iQ appliance
The following diagram and table present the connectors on the iQ appliance:

SMART MX Series Specifications

General

Aspect Ratio	16:9
RAM	4 GB
Internal Storage	32 GB
Refresh Rate	60 Hz
Response Time	8 ms
Brightness	350 cd/m²
Contrast Ratio	4000:1
Dimensions (W x H x D)	Varies by screen size
Weight	Varies by screen size
Screen Sizes	65", 75", 86"
Operating System	Android
Connectivity	HDMI, USB, Wi-Fi, Bluetooth
Audio	Built-in speakers
Touch Points	20
Viewing Angle	178°
VESA Mount	Yes
Display Type	LED-backlit LCD
