SMART MX Series Instruction For Installation And Maintenance

CHAPTER3
CONNECTING POWER, CABLES AND DEVICES
26 smarttech.com/kb/171257
No. Connector Connects to Notes
2 USB Type-A
connector
USB drives and other
devices
Connect a USBdrive to update
the display’s firmware.
NOTE
If troubleshooting an issue
with the display, connect a
USB mouse to navigate the
display’s on-screen menu.
3 USB Type-A
connector
USB drives and other
devices
Connect USB drives and other
devices that you want to use
with the currently selected input
source.
4 HDMI 1 2.0 in HDMI 1 input
(videoandaudio)
See page21.
5 HDMI 2 2.0 in HDMI 2 input
(videoandaudio)
See page21.
6 RJ45 (×2) Network See page20.

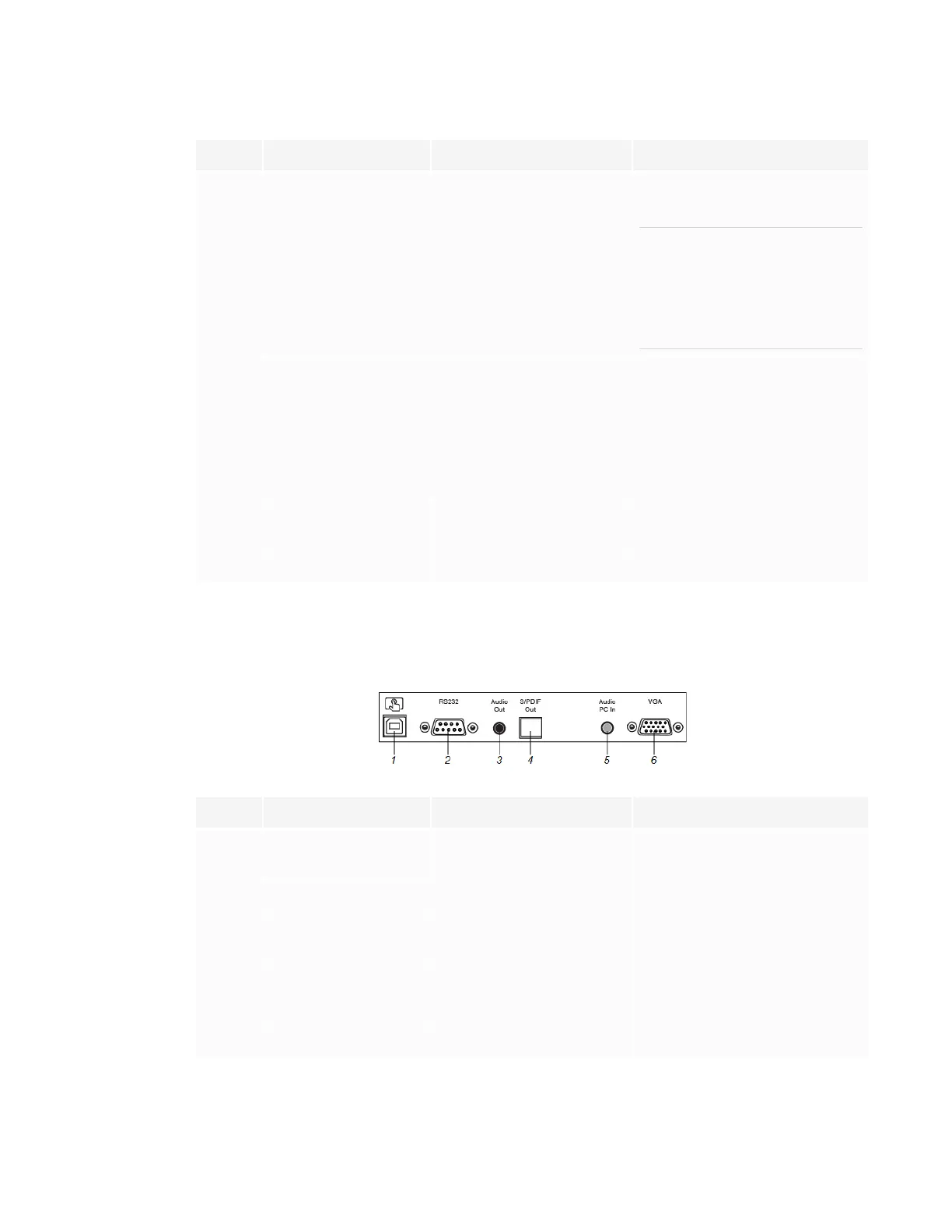

Bottom connectorpanel
The following diagram and table present the connectors on the display’s bottom connector panel:
No. Connector Connects to Notes
1 USB Type-B HDMI 1, HDMI 2 or VGA
input (touch)
See page21.
2 RS-232 Room control system See page65.
3 Stereo 3.5 mm out External speakers or audio
system
See page23.
4 S/PDIF out Optical digital audio output See page23.
5 Stereo 3.5 mm in VGA input (audio) See page21.
6 VGA in VGA input (video) See page21.

SMART MX Series Specifications

General

Aspect Ratio	16:9
RAM	4 GB
Internal Storage	32 GB
Refresh Rate	60 Hz
Response Time	8 ms
Brightness	350 cd/m²
Contrast Ratio	4000:1
Dimensions (W x H x D)	Varies by screen size
Weight	Varies by screen size
Screen Sizes	65", 75", 86"
Operating System	Android
Connectivity	HDMI, USB, Wi-Fi, Bluetooth
Audio	Built-in speakers
Touch Points	20
Viewing Angle	178°
VESA Mount	Yes
Display Type	LED-backlit LCD
