-127-
No.EX※※-OMX1011

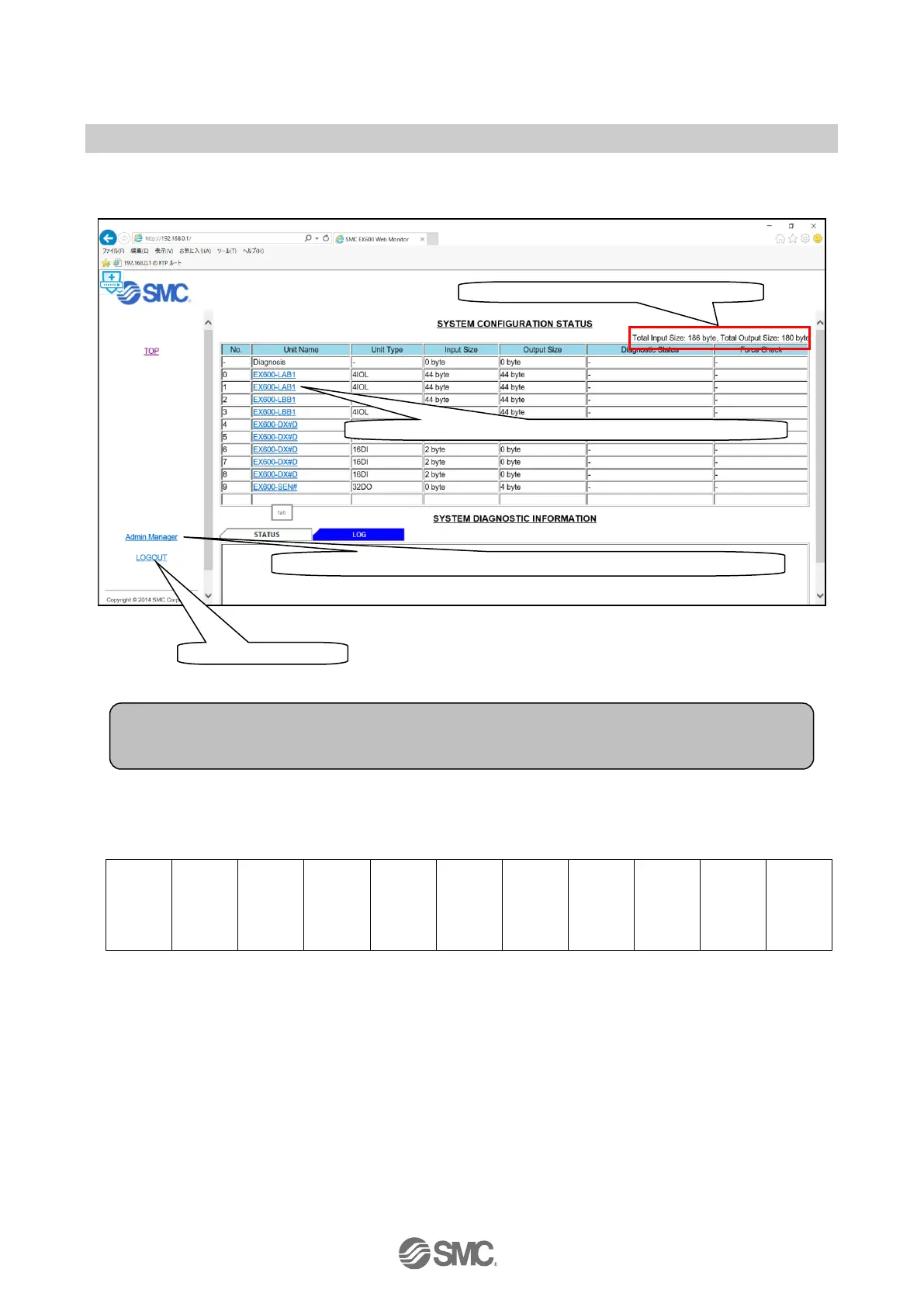

(5) After pressing the [Next] button, the [SYSTEM CONFIGURATION STATUS] screen is displayed.
This screen will be the TOP screen.
System construction status
No.0
No.1
No.2
No.3
No.4
No.5
No.6
No.7
No.8
No.9
End
plate
EX600
-LAB1
EX600
-LAB1
EX600
-LBB1
EX600
-LBB1
EX600
-DX#D
EX600
-DX#D
EX600
-DX#D
EX600
-DX#D
EX600
-DX#D
EX600
-SEN3
NOTE
The screen above shows the case when the unit is connected as shown below.
When the Password is changed and Error Log is cleared, click here.
When selecting the Unit Name, I/O monitor screen is displayed.
Click here to logout.
The total size of input/output is displayed.
