-40-
No.EX※※-OMX1011
IO-Link Master Unit
Model Indication and How to Order
EX600-L A B
1
IO-Link master
Number of ports and connector
Symbol
Number of ports
Connector
Port specifications
B
4 ports
M12 connector
Symbol
Content
A
Port Class A
B
Port Class B

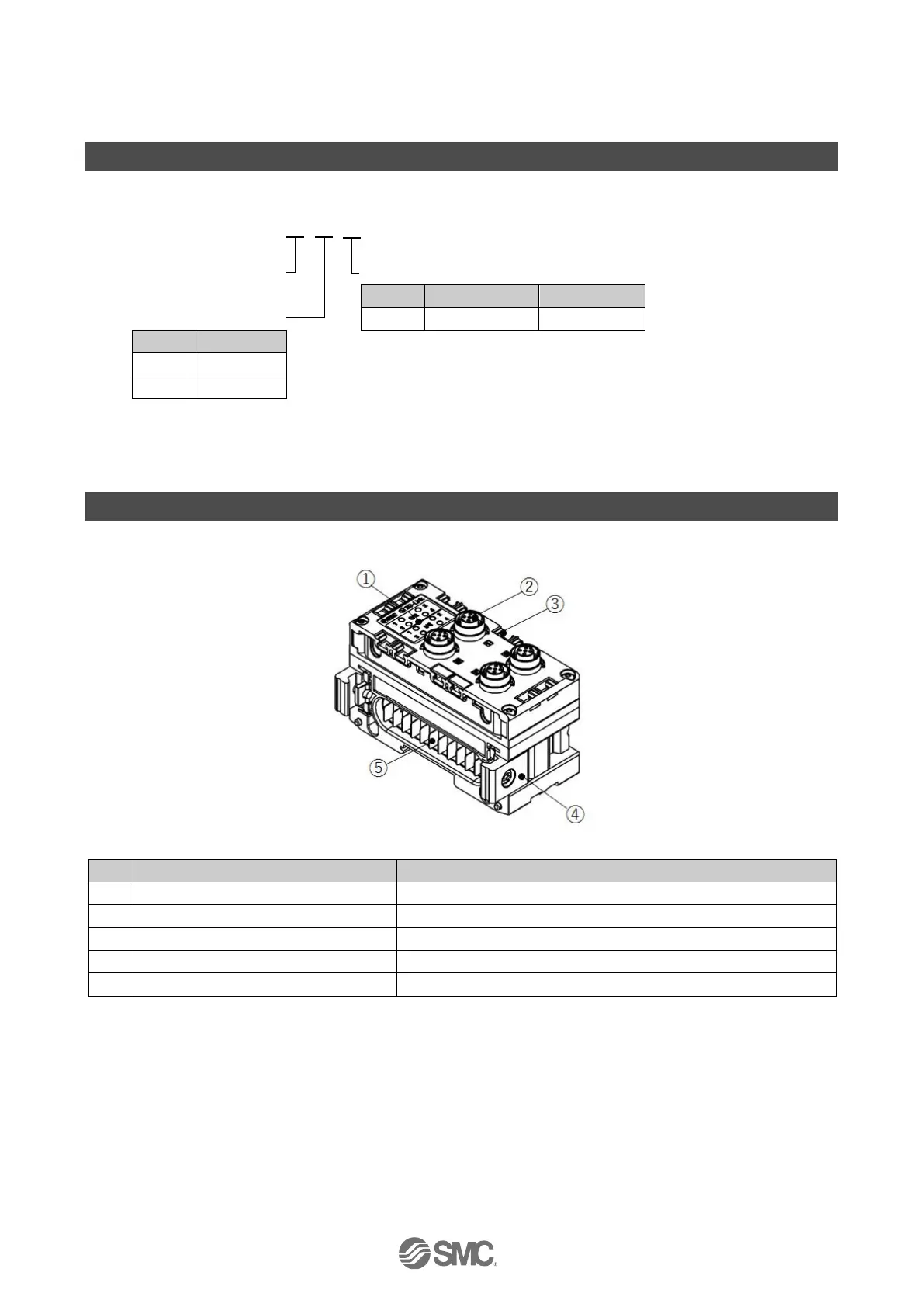

Summary of Product parts
•EX600-L#B1
No.
Description
Function
1
Status LED’s
LED display to indicate the unit status.
2
Connector
For connecting IO-Link devices.
3
Marker groove
Groove to mount a marker.
4
Joint bracket
For connecting to other units.
5
SI unit connector (plug)
Transfers signals and supplies power to the next unit.
