SMC Networks EX600 Series - Connector Pin Assignment

-17-
No.EX※※-OMX1011
Mounting and Installation
■Wiring

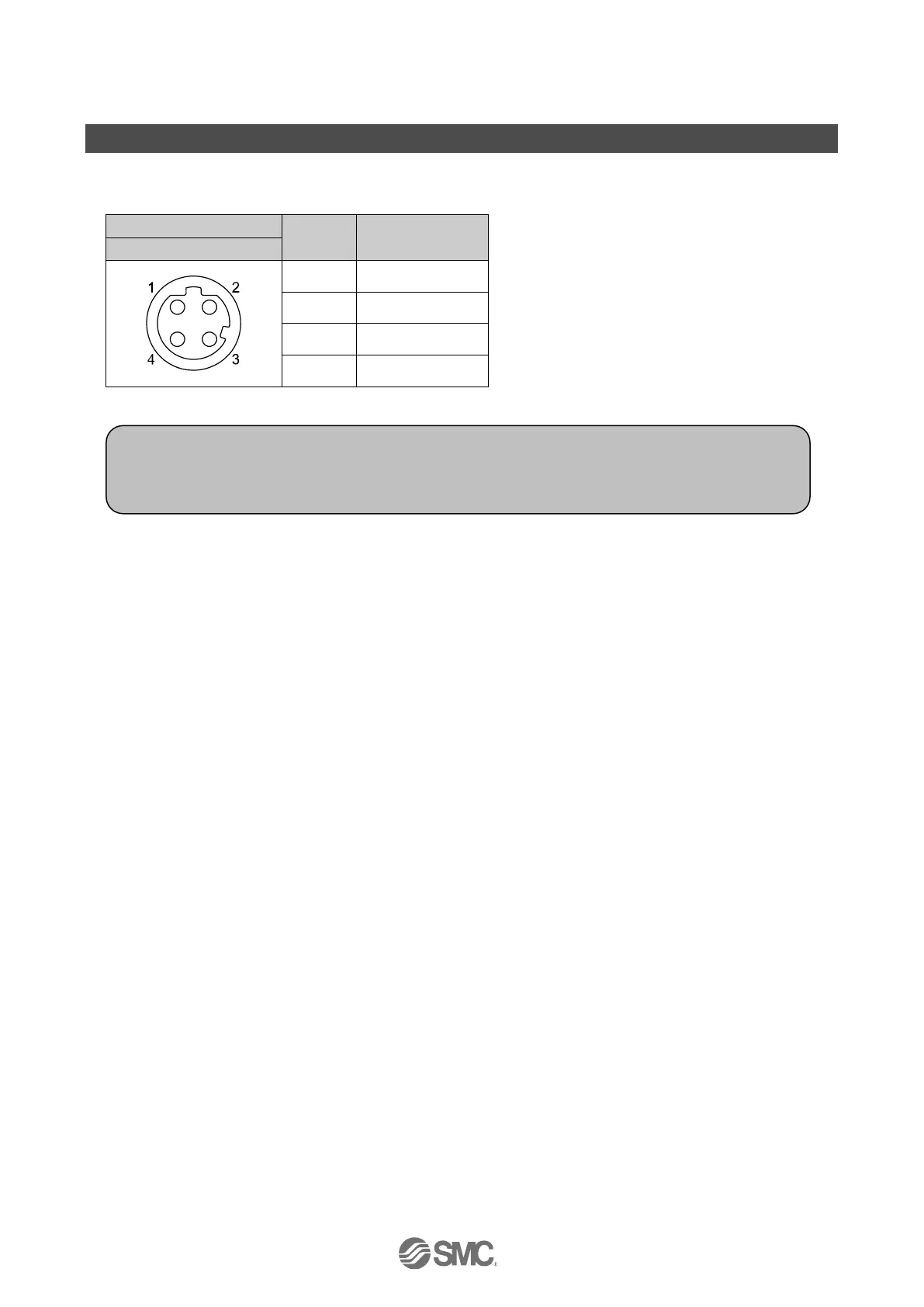

○Connector pin assignment
Configuration
Pin No.
Signal name
BUS IN/BUS OUT
1
TX+
2
RX+
3
TX-
4
RX-
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to achieve IP67 specification.
