SMC Networks EX600 Series - Pwr-Led; Pwr(V)-Led; Ms-Led

-23-
No.EX※※-OMX1011

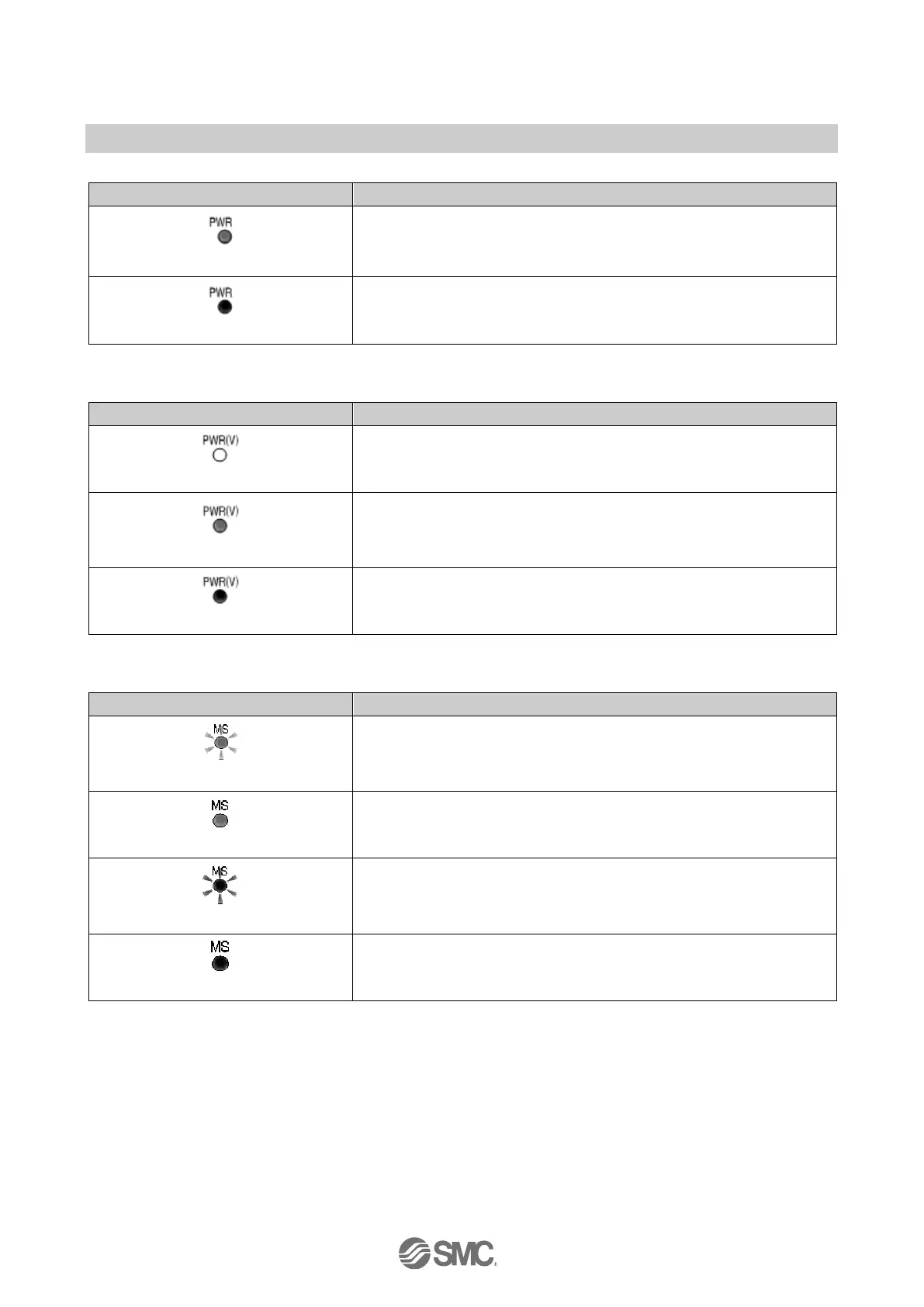

•PWR-LED
LED display
Content
Green ON
The power supply voltage for control and input is properly.
Red ON
The power supply voltage for control and input is out of range.
(When diagnostic parameter is enabled)
•PWR(V)-LED
LED display
Content
OFF
The power supply voltage for output is OFF or out of range.
(When diagnostic parameter is disabled)
Green ON
The power supply for output is properly.
Red ON
The power supply voltage for output is OFF or out of range.
(When diagnostic parameter is enabled)
•MS-LED
LED display
Content
Green flashing
Either of the following conditions are detected:
•The unit has not been configured correctly.
•The master is idle state.
Green ON
The unit is in normal operation.
Red flashing
Diagnostic error is detected.
Red ON
The element in SI unit is broken.
