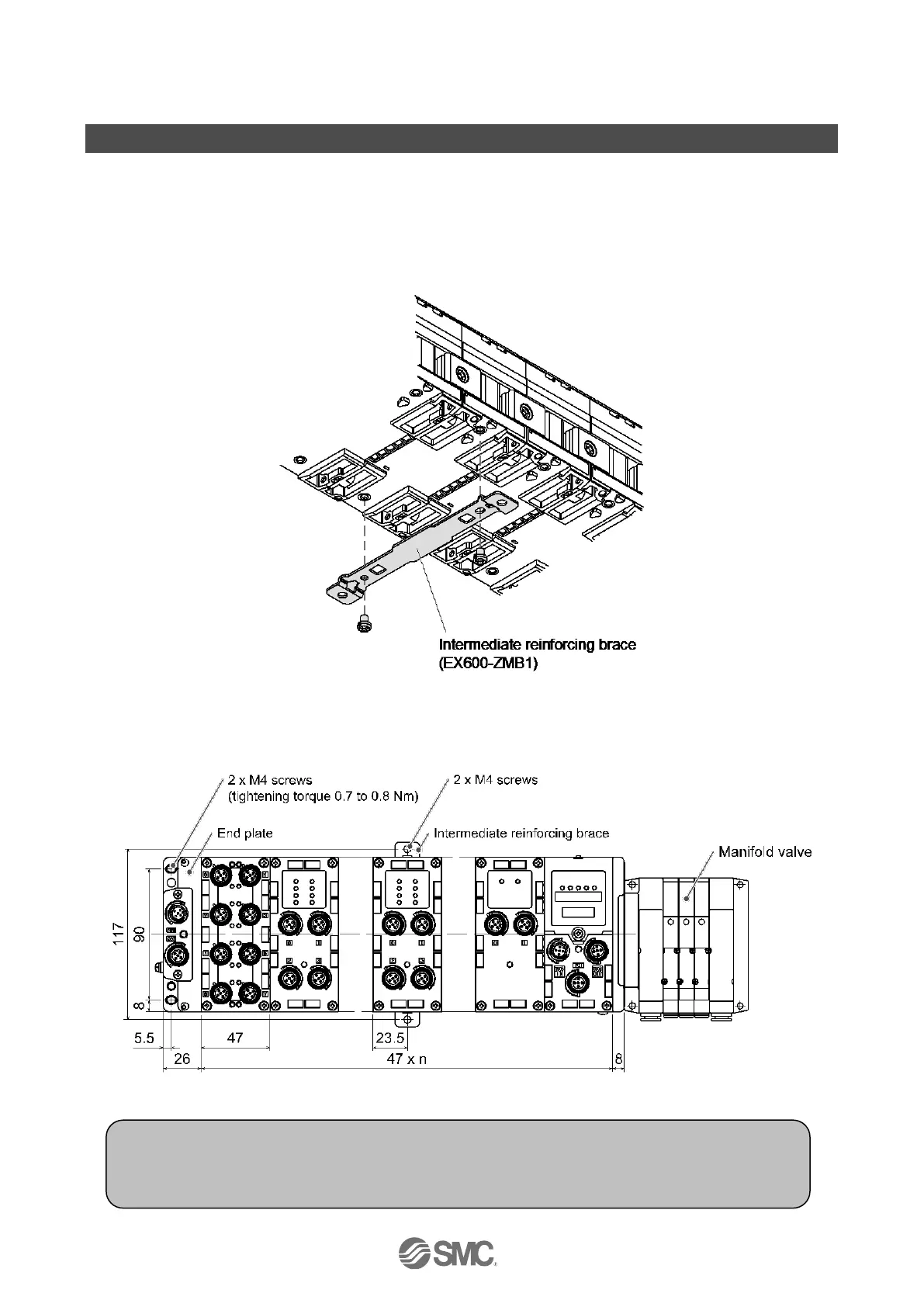

Mounting and Installation
■Installation
•Direct mounting
(1) Direct mounting
When joining six or more units, fix the middle part of the complete EX600 unit with an intermediate
reinforcing brace (EX600-ZMB1) before mounting using 2-M4 x 5 screws.
(Tightening torque: 0.7 to 0.8 Nm)
(2) Fix and tighten the end plates at one end of the unit. (M4)
(Tightening torque: 0.7 to 0.8 Nm)
Fix the end plate at the valve side while referring to the operation manual of the corresponding valve
manifold.
n (Number of connected Units) ≤ 10
●Precautions for handling
•When joining six or more units, fix the middle part of the complete unit with an intermediate
reinforcing brace to prevent incorrect connection between the units due to deflection.
