SMC Networks EX600 Series - Ns-Led; Communication Status

-24-
No.EX※※-OMX1011

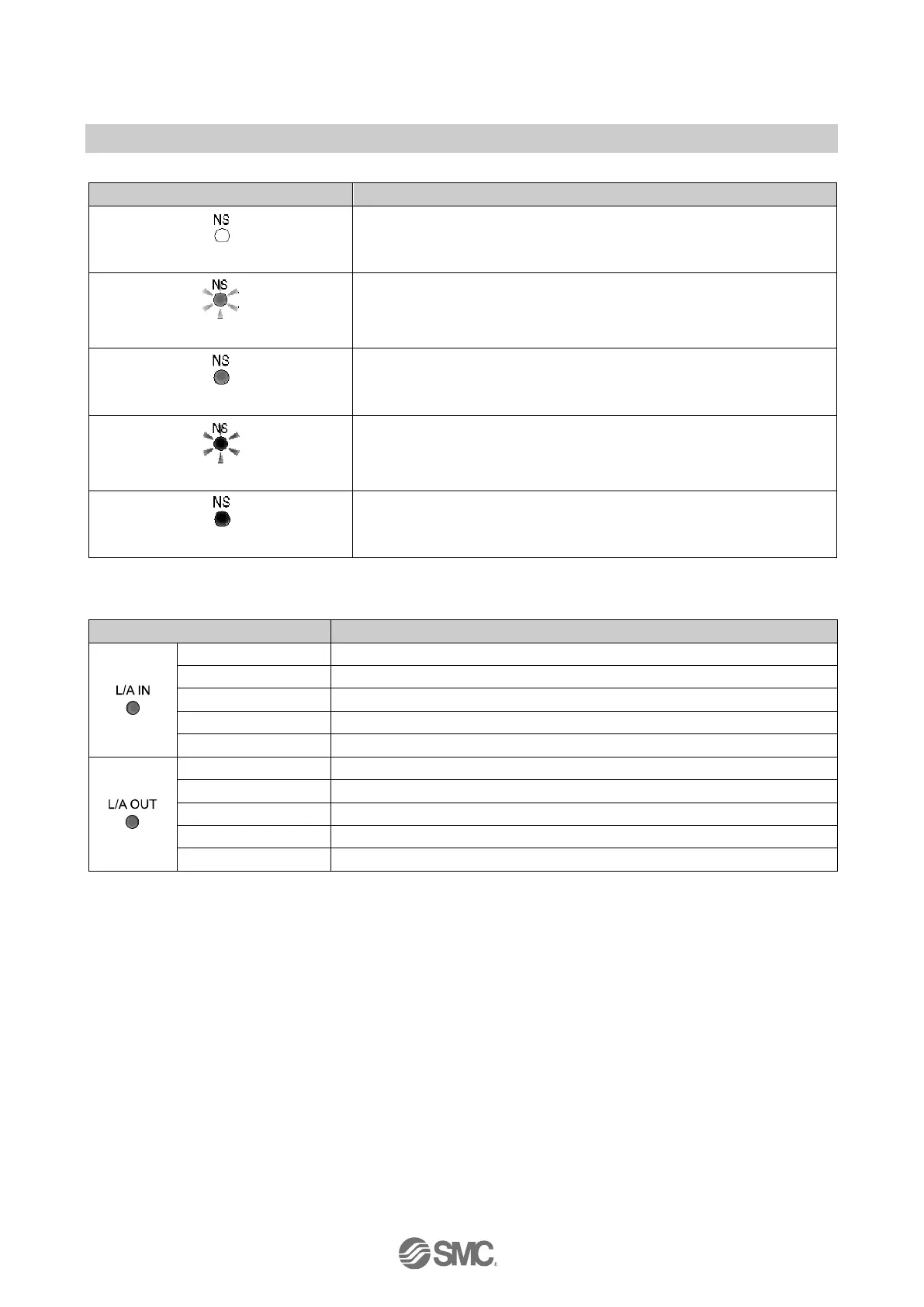

•NS-LED
LED display
Content
OFF
IP address is not set.
Green flashing
EtherNet/IP
TM
communication is not established.
Green ON
EtherNet/IP
TM
communication is established.
Red flashing
EtherNet/IP
TM
communication is time-out.
Red ON
IP address is duplicated.
•Communication status
LED display
Content
OFF
Bus IN side :No Link, No Activity
Green ON
Bus IN side : Link, No Activity (100 Mbps)
Green flashing
Bus IN side : Link, Activity (100 Mbps)
Yellow ON
Bus IN side : Link, No Activity (10 Mbps)
Yellow flashing
Bus IN side : Link, Activity (10 Mbps)
OFF
Bus OUT side :No Link, No Activity
Green ON
Bus OUT side : Link, No Activity (100 Mbps)
Green flashing
Bus OUT side : Link, Activity (100 Mbps)
Yellow ON
Bus OUT side : Link, No Activity (10 Mbps)
Yellow flashing
Bus OUT side : Link, Activity (10 Mbps)
