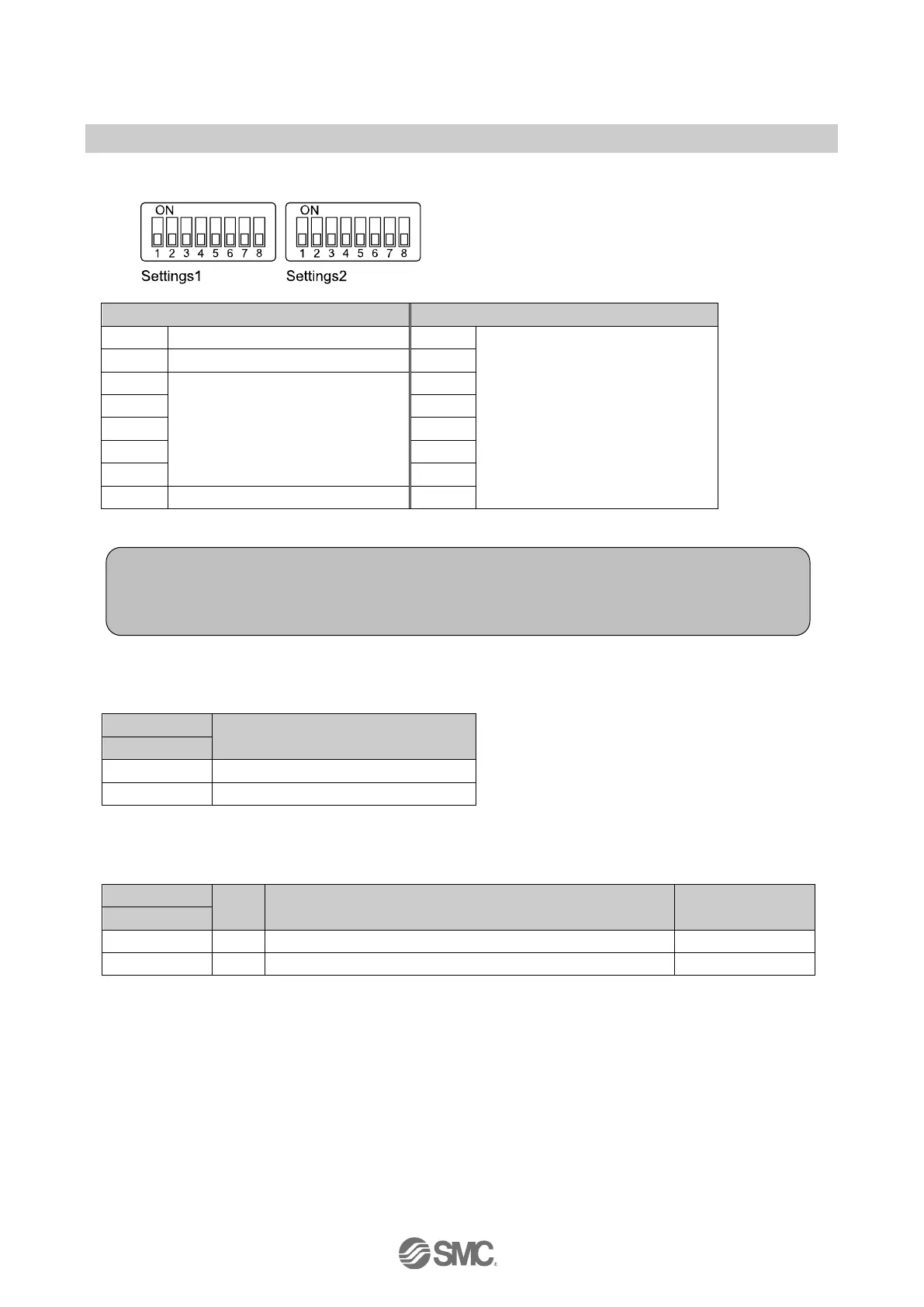

Switch setting
Settings1
Settings2
1
Hold/Clear setting
1
•IP address byte 4 setting
•DHCP mode setting
2
Diagnostics setting
2
3
Reserved
3
4
4
5
5
6
6
7
7
8
IP address byte 3 setting
8
•HOLD/CLEAR switch: Sets the output status when the fieldbus has a communication error or is in idling
state.
Settings1
Content
1
OFF
Output is OFF. (default setting)
ON
Holds the output.
: This switch can be enabled and disabled by parameter.
•Switch for diagnosis: Allocates the diagnostic data to the input data.
Settings1
Mode
Content
Diagnostic size set
for the input
2
OFF
0
Input data only (default setting)
0 byte
ON
1
Input data + System diagnosis + Unit diagnosis
4 bytes
●Precautions for handling
•Handle the switch with care. Excessive force can break the switch.
•3 to 7 of the Settings1 switch are not used. (Never turn it ON.)
