-30-
No.EX※※-OMX1011
Mounting and Installation
Wiring

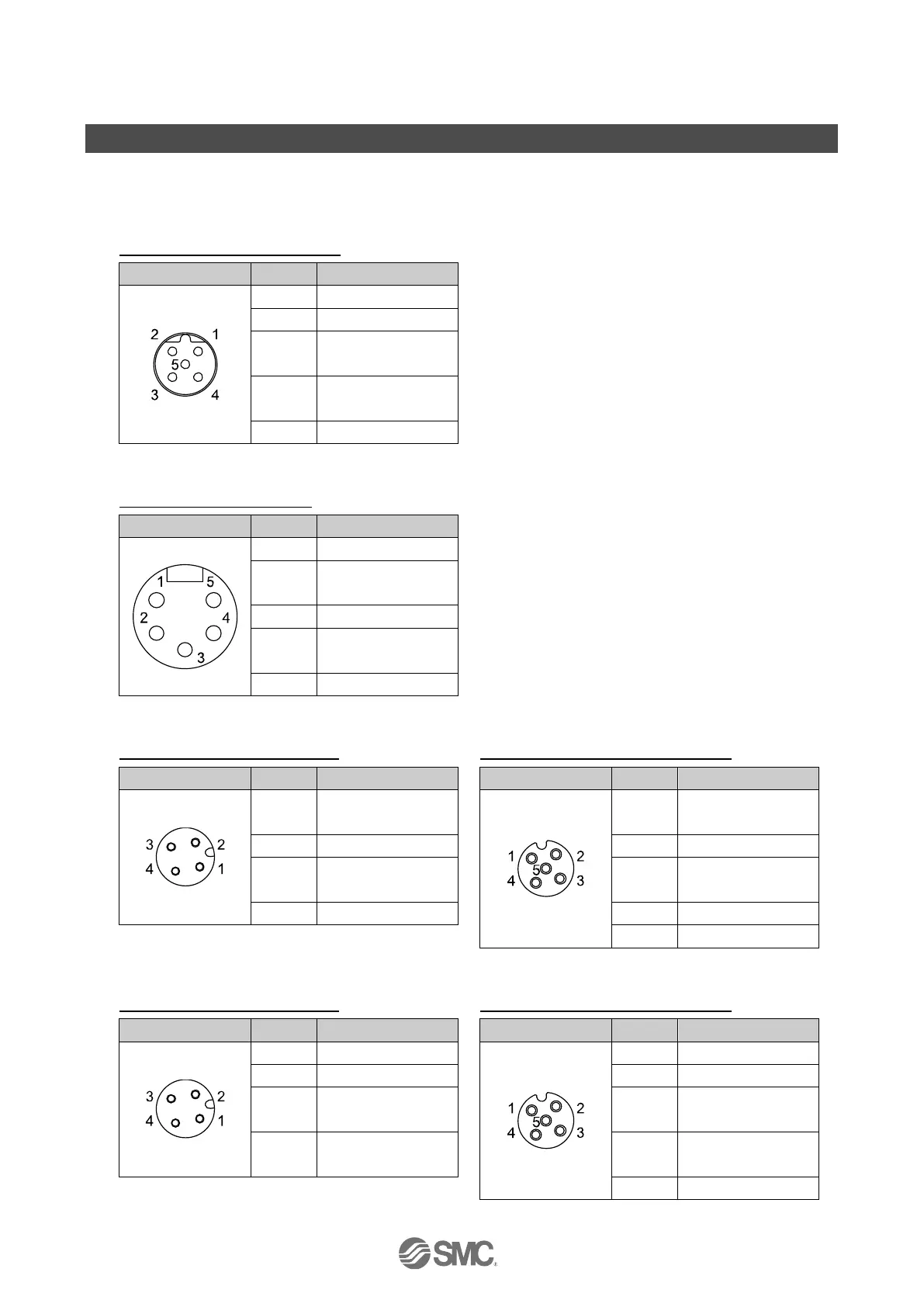

Connector pin assignment
(1) EX600-ED2-
PWR IN: M12 5-pin Plug B code
Configuration
Pin No.
Signal name
1
24 V (Output)
2
0 V (Output)
3
24 V
(Control and input)
4
0 V
(Control and input)
5
F.E.
(2) EX600-ED3-
PWR IN: 7/8 inch 5-pin Plug
Configuration
Pin No.
Signal name
1
0 V (Output)
2
0 V
(Control and input)
3
F.E.
4
24 V
(Control and input)
5
24 V (Output)
(3) EX600-ED4-
PWR IN: M12 4-pin Plug A code
PWR OUT: M12 5-pin Socket A code
Configuration
Pin No.
Signal name
Configuration
Pin No.
Signal name
1
24 V
(Control and input)
1
24 V
(Control and input)
2
24 V (Output)
2
24 V (Output)
3
0 V
(Control and input)
3
0 V
(Control and input)
4
0 V (Output)
4
0 V (Output)
5
Not used
(4) EX600-ED5-
PWR IN: M12 4-pin Plug A code
PWR OUT: M12 5-pin Socket A code
Configuration
Pin No.
Signal name
Configuration
Pin No.
Signal name
1
24 V (Output)
1
24 V (Output)
2
0 V (Output)
2
0 V (Output)
3
24 V
(Control and input)
3
24 V
(Control and input)
4
0 V
(Control and input)
4
0 V
(Control and input)
5
Not used
