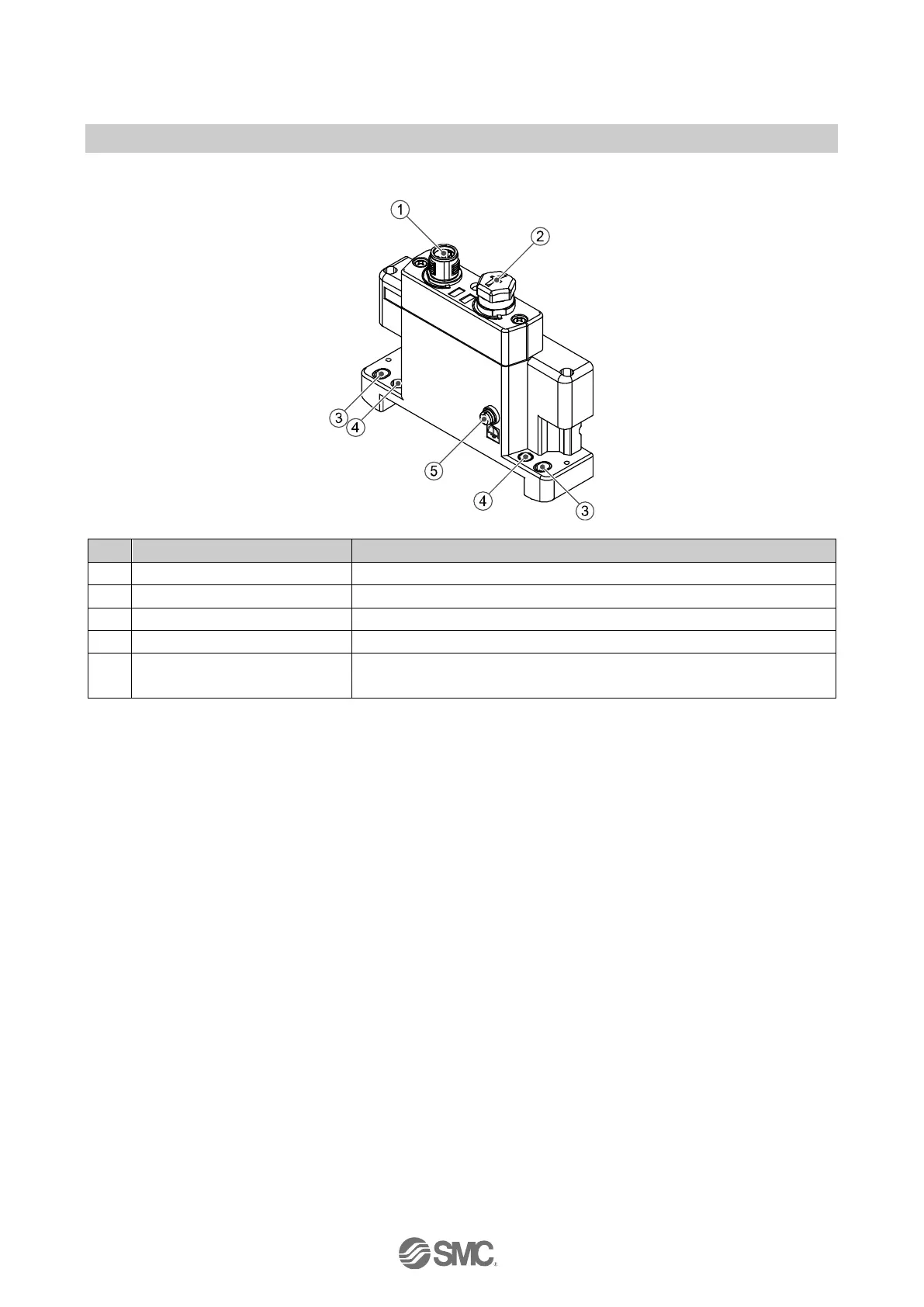

•EX600-ED4/ED5-
No.
Description
Function
1
Power connector (PWR IN)
Supplies power for each unit and input/output devices.
2
Power connector (PWR OUT)
Provides power to downstream equipment.
3
Fixing hole for direct mounting
Holes used for direct mounting.
4
DIN rail fixing hole
Holes used for fix DIN rail.
5
F.E. terminal

Functional Earth terminal - must be connected directly to system earth
(ground).
: Individual grounding should be provided close to the product with a short cable.
