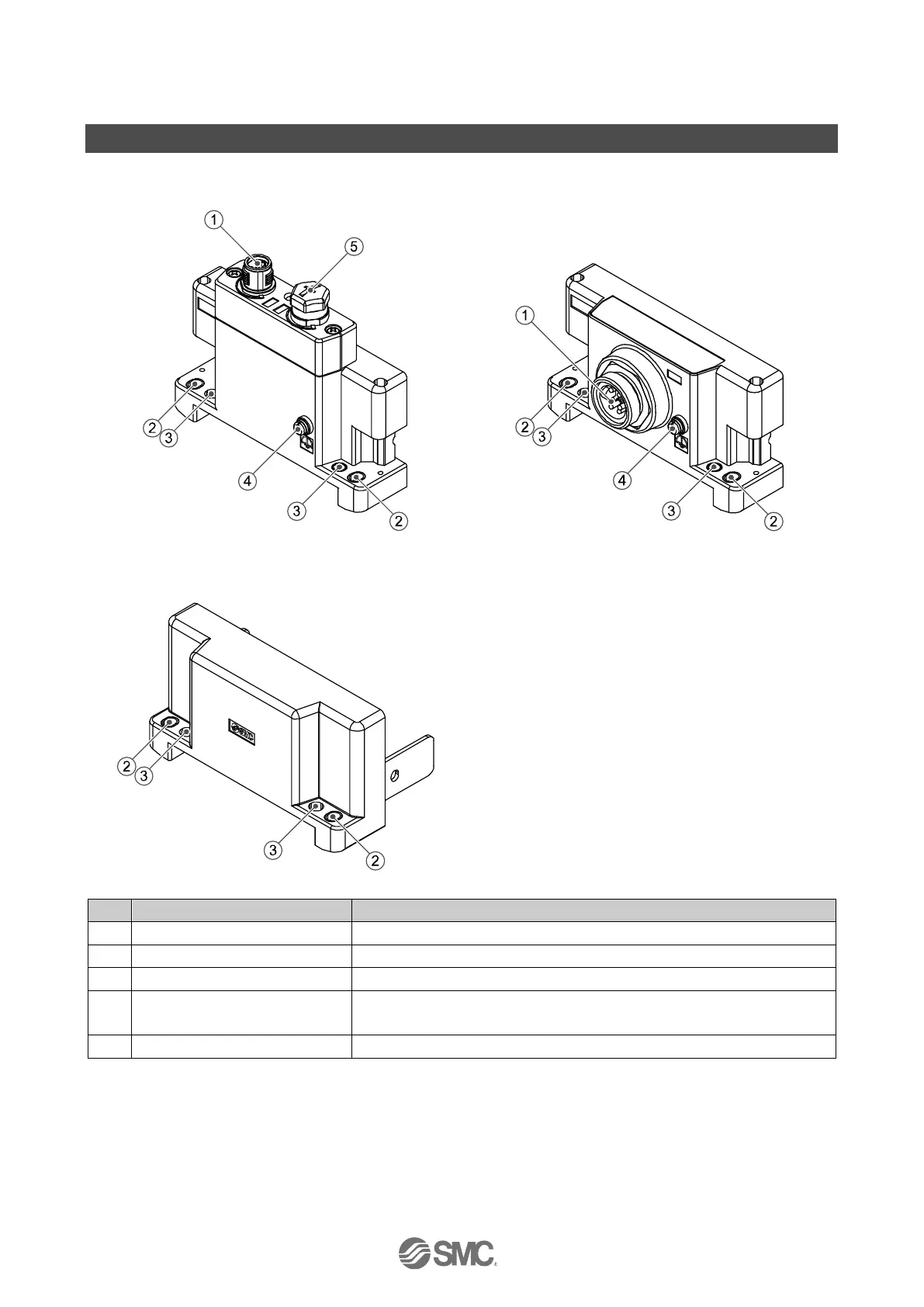

Summary of Product parts
•EX600-ED2-
•EX600-ED3-
•EX600-EU1-
No.
Description
Function
1
Power connector
Connector for power supply to SI unit and I/O unit.
2
Fixing hole for direct mounting
Holes for direct mounting.
3
DIN rail fixing hole
Holes for fix DIN rail mounting.
4
F.E. terminal

Functional Earth terminal - must be connected directly to system earth
(ground).
5
Connector (Not used)
Unused connector. Do not remove seal cap.
: Individual grounding should be provided close to the product with a short cable.
