131
-
No.EX
※※
-OMX
101
1

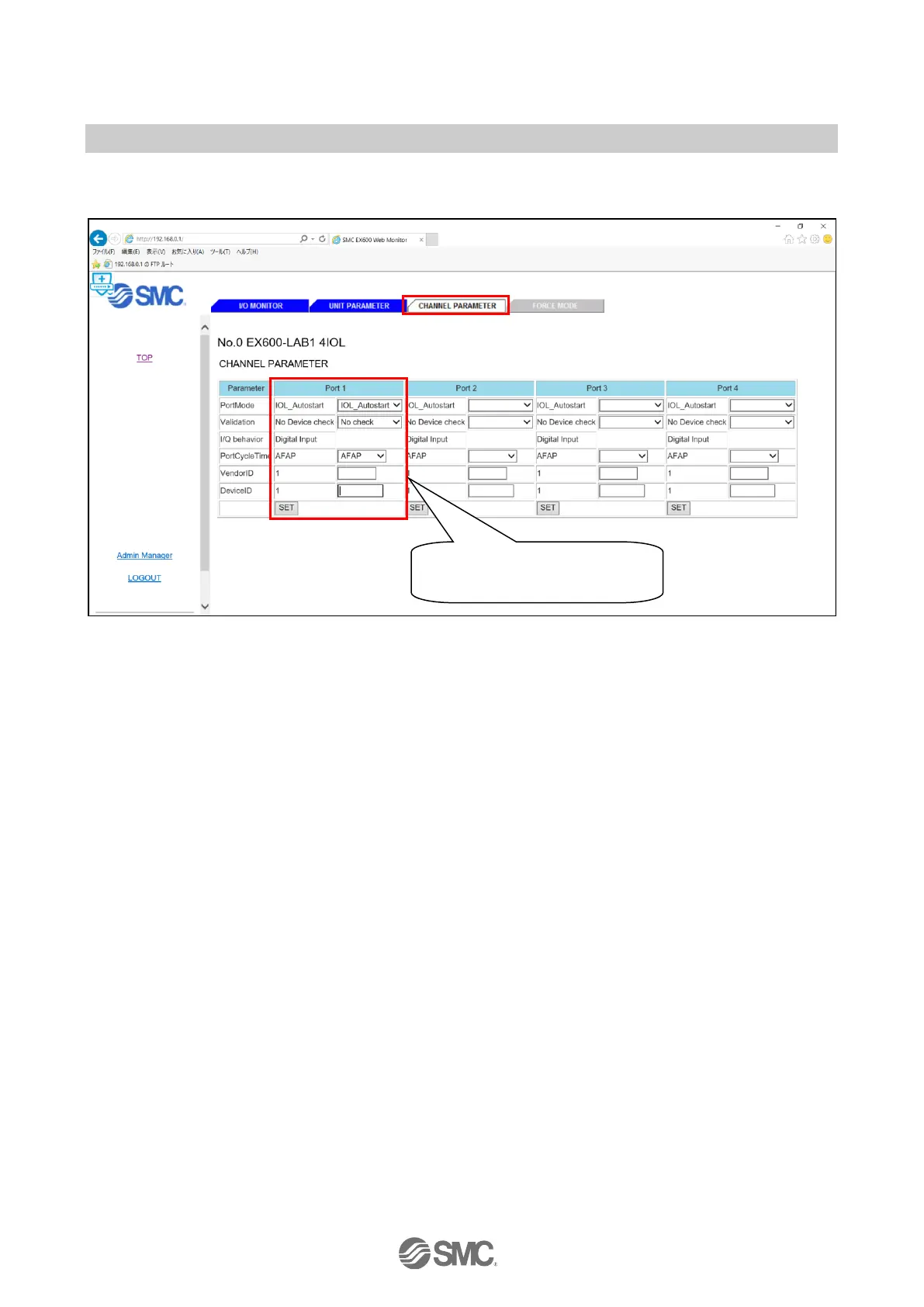

(9) Select the [CH
ANNEL PARAMET
ER] tab to displ
ay the [CHANNEL P
ARAM
ETER] scr
een.
(EX600-LAB1)
W
hen the [SET
] button is selected
after changing the set value, the
parameter will be changed.
131
133
Table of Contents
Table of Contents
2
Safety Instructions
4
Warning
4
Caution
5
Product Handling
8
Environment
8
Adjustment and Operation
9
Maintenance
9
System Outline
10
System Configuration
10
Definition and Terminology
11
Assembly
12
Composing the Unit as a Manifold
12
Mounting the Valve Plate
13
Connect the si Unit and the Valve Manifold
13
Precautions for Handling
13
Installation
14
Direct Mounting
14
DIN Rail Mounting
15
Wiring
16
Connect the M12 or M8 Connector Cable
16
Mounting the Marker
16
SI Unit
17
Model Indication and How to Order
17
Summary of Product Parts
17
Connector Pin Assignment
18
Switch Operation
19
Switch Setting
20
HOLD/CLEAR Switch
20
Switch for Diagnosis
20
IP Address Setting Switch
21
Setting Method of IP Address by BOOTP/DHCP Server
22
LED Display
23
St(M)-Led
23
Pwr-Led
24
Pwr(V)-Led
24
Ms-Led
24
Ns-Led
25
Communication Status
25
Specification
26
Dimensions
27
End Plate
28
Mounting and Installation
31
PWR IN: M12 5-Pin Plug B Code
31
PWR IN: M12 4-Pin Plug a Code
31
PWR OUT: M12 5-Pin Socket a Code
31
Regarding the 2 Types of Power Supply
32
IO-Link Master Unit
41
Cleaning Method
47
How to Reset the Product for Power Cut or Forcible De-Energizing
47
Troubleshooting
48
Trouble Counter Measure Method
50
Parameter Setting
59
Parameter Definition and Setting
59
System Parameters
59
SI Unit Parameters
60
Digital Input Unit Parameters
62
Digital Output Unit Parameters
63
Digital I/O Unit Parameters
64
Analogue Input Unit Parameters
66
Table. Settable Range of User Set Value
67
Correspondence Table for User Set Upper or Lower Limit
67
Analogue Output Unit Parameters
68
Scaled Data Format
70
Example: When the Range Is 1 to 5 V Output
70
Analogue I/O Unit Parameters
71
Port Cycle Time Setting
79
Bit Line
79
Calculation Condition
79
Data Storage Function
80
Outline of Backup or Re-Storage
80
I/O Map
81
Allocated Input and Output Bytes of each Unit Type
81
I/O Map Example
82
When Diagnostic Mode 0 Is Selected
82
When Diagnostic Mode 1 Is Selected
82
Input Data
83
Output Data
83
When Diagnostic Mode 0
84
Details of I/O Map of the IO-Link Master Unit
85
Port Status (PQI) Details
85
Diagnosis
87
Details of Diagnostic Data
88
Diagnosis of IO-Link Master Unit Data
89
Hardware Configuration
90
EDS File and Icon
90
Setting Using Logix Designer
90
Example of Setting Using EDS File
90
Example of Setting Using the Generic Ethernet Module
93
Configuration Assembly
95
Parameter Setting of EX600 with Configuration Assembly
95
Unit ID List
95
Ethernet/Ip Configuration Assembly
96
Configuration Format (EX600-SEN3-X80)
96
Configuration Format (EX600-DX#B/C)
97
Configuration Format (EX600-DX#C1)
97
Configuration Format (EX600-DX#D/E/F)
98
Configuration Format (EX600-DY#B)
99
Configuration Format (EX600-DY#E/F)
100
Configuration Format (EX600-DM#E/F)
101
Configuration Format (EX600-AXA)
102
Configuration Format (EX600-AYA)
103
Configuration Format (EX600-AMB) Byte 0 to 6
104
Configuration Format (EX600-AMB) Byte 7 to 31
105
Configuration Format (EX600-LAB1 / EX600-LBB1) Byte 0 to 5
106
Parameter Setting of IO-Link Device with Configuration Assembly
108
Configuration Format (EX600-LAB1 / EX600-LBB1)
108
Configuration Assembly Setting Method Example
109
Parameter Setting Devices
109
Preparation of Configuration Data
110
Configuration Size Setting
111
Controller Tags
111
Device Level Ring (DLR) Function
112
Quickconnect Function
112
Bus in Port Setting
112
Bus out Port Setting
112
Function Setting
113
System Diagnostic Object (Class: 66H)
114
IO-Link SMI Service
121
Smi_Portconfiglist
122
Smi_Portstatuslist
124
Smi_Deviceread
125
Web Server
126
EX600 Web Server Functional Overview
126
Connecting to a EX600-SEN3 (Ex. Windows 10)
126
Accessories
135
Valve Plate
135
End Plate Bracket
135
Intermediate Support Bracket
135
Seal Cap
136
Marker
136
Assembled Type Connector
136
