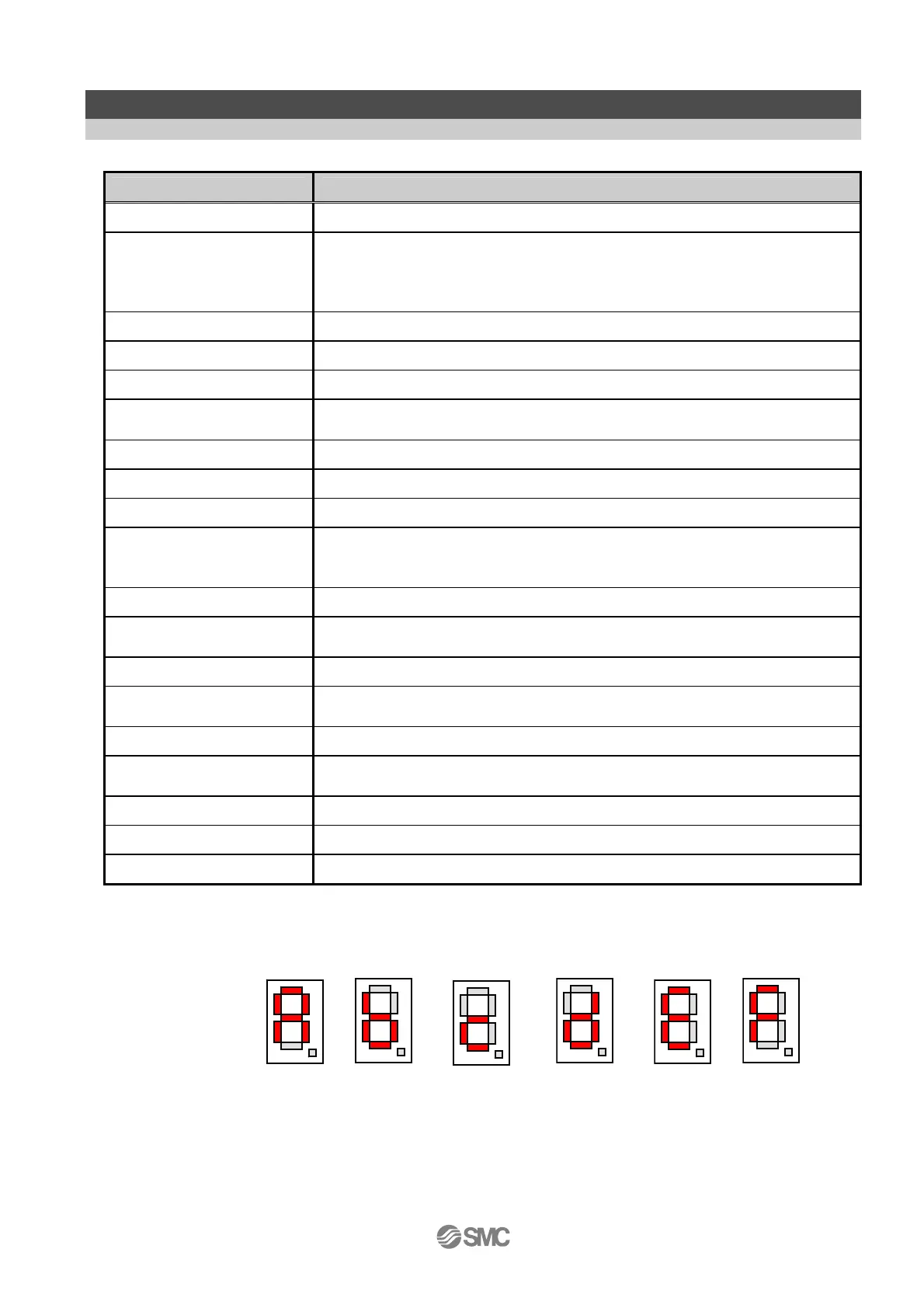

3. Specifications
3.1 Basic specifications
Basic specifications of the product.
Item Specifications
Controlled motor Step motor(servo 24VDC)
Power supply
specification (*1)
Power supply voltage: 24VDC±10%
Max. current consumption: Rated 3.2A (Peak 5A)(*2)
[Includes the motor power supply, control power supply, stop,
unlocking]
Parallel input Input 6 points (Photo coupler insulation)
Parallel output Output 6 points (Photo coupler insulation)
Stop points 14 points(Location number 1 to 14(E))
Controlled encoder
Incremental A/B phase
Pulse number: 800 pulse/rev
Serial communication
RS485 (Complies with Modbus protocol）
Memory EEPROM
LED display LED(Green/Red) 1 for each
7-segment LED display
(*3)
1 digit, 7-segment display (red)
Figures are expressed in hexadecimal (10 to 15 in decimal number are
expressed as A to F)
Locking With unlocking terminal
Cable length
I/O cable: 5m or less
Actuator cable: 20m or less
Cooling method Air-cooling type
Operating temperature
range
0 to 40°C(No condensation, no freezing)
Operating humidity range 90%RH or less (No condensation)
Storage temperature
range
-10 to 60°C(No condensation, no freezing)
Storage humidity range 90%RH or less (No condensation)
Insulation resistance Between the case (Heat Sink) and SG terminal: 50MΩ(500VDC)
Weight 130g
*1) Do not use inrush current suppressor types as the power supply for the controller input.
*2) Power consumption depends on actuator. Please refer to the operation manual of actuators
for details.
*3）"10" to "15" in decimal number are displayed as follows in the 7-segment LED
10
A
11
b
12
c
13
d
14
E
15
F
Decimal display
Hexadecimal display
