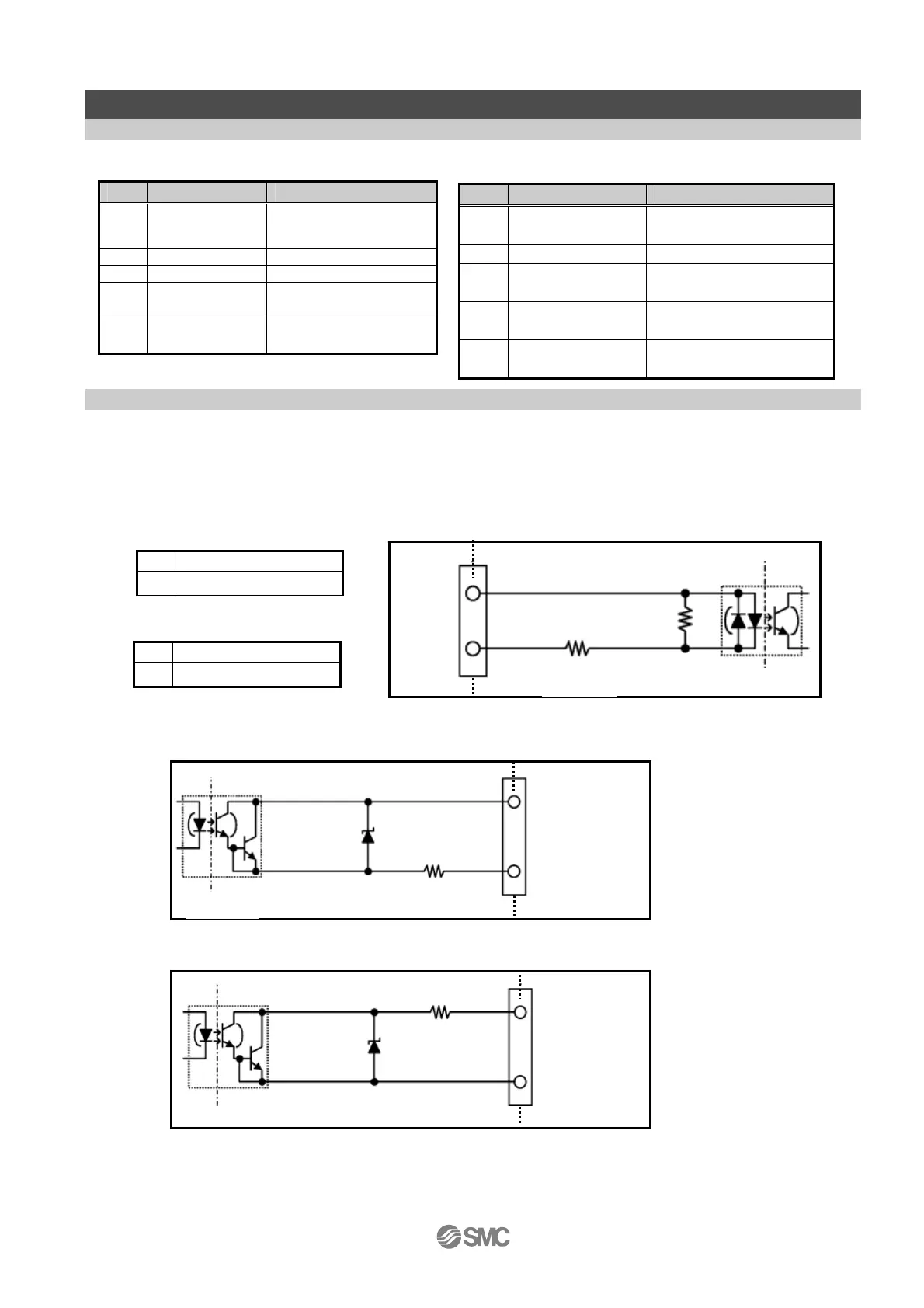

6. CN4: Parallel I/O cable
6.1 Paralles input / output
■Input specifications ■Output specifications
6.2 Parallel input / output circuit (NPN, PNP)
There are two types of parallel input / output types for this controller.
NPN type （LECP1N□□－□）
PNP type （LECP1P□□－□）
(1) Parallel I/O input circuit (NPN, PNP common)
(2) Parallel I/O output circuit
NO. Item Specifications
1
Output circuit
Internal circuit and the
photo coupler insulation
2
No. of output 6 opints
3
Maximum voltage
between terminals
DC30V
4
Maximum output
current
10mA
5
Saturation voltage
between terminals
2.0V (Maximum)
NO. Item Specifications
1 Input circuit
Internal circuit and the
photo coupler insulation
2 No. of inputs 6 points
3 Voltage DC24V±10%
4
Input current
at ON
3.5mA±20%(at DC24V)
5
Input current /
voltage at OFF
1.5mA or less of current
11V or less of voltage
(a)
(b)
Inside of the controller
(a) 「COM+」〈1〉
(b)
IN0〈9〉～STOP〈14〉
 PNP TYPE
(a) 「COM-」〈2〉
(b)
IN0〈9〉～STOP〈14〉
NPN TYPE
PNP TYPE
Outside
OUT0〈3〉
～ALARM〈8〉
OUT0〈3〉
～ALARM〈8〉
「COM-」
〈2〉
「COM+」
〈1〉
Inside of the controller
Outside
Inside of the controller
Outside
 NPN TYPE
