SMC Networks LECP1 Series - 3.3 Outer dimensions

- 12 -
Caution
Use a flat blade watchmaker's screwdriver of the size shown below when changing position
switch
○
h and the set value of the speed/acceleration switch
○
k to
○
n
<Size>
End width L ：2.0 to 2.4 [mm]
End thickness W ：0.5 to 0.6 [mm]
Magnified view of the end of the flat blade screwdriver

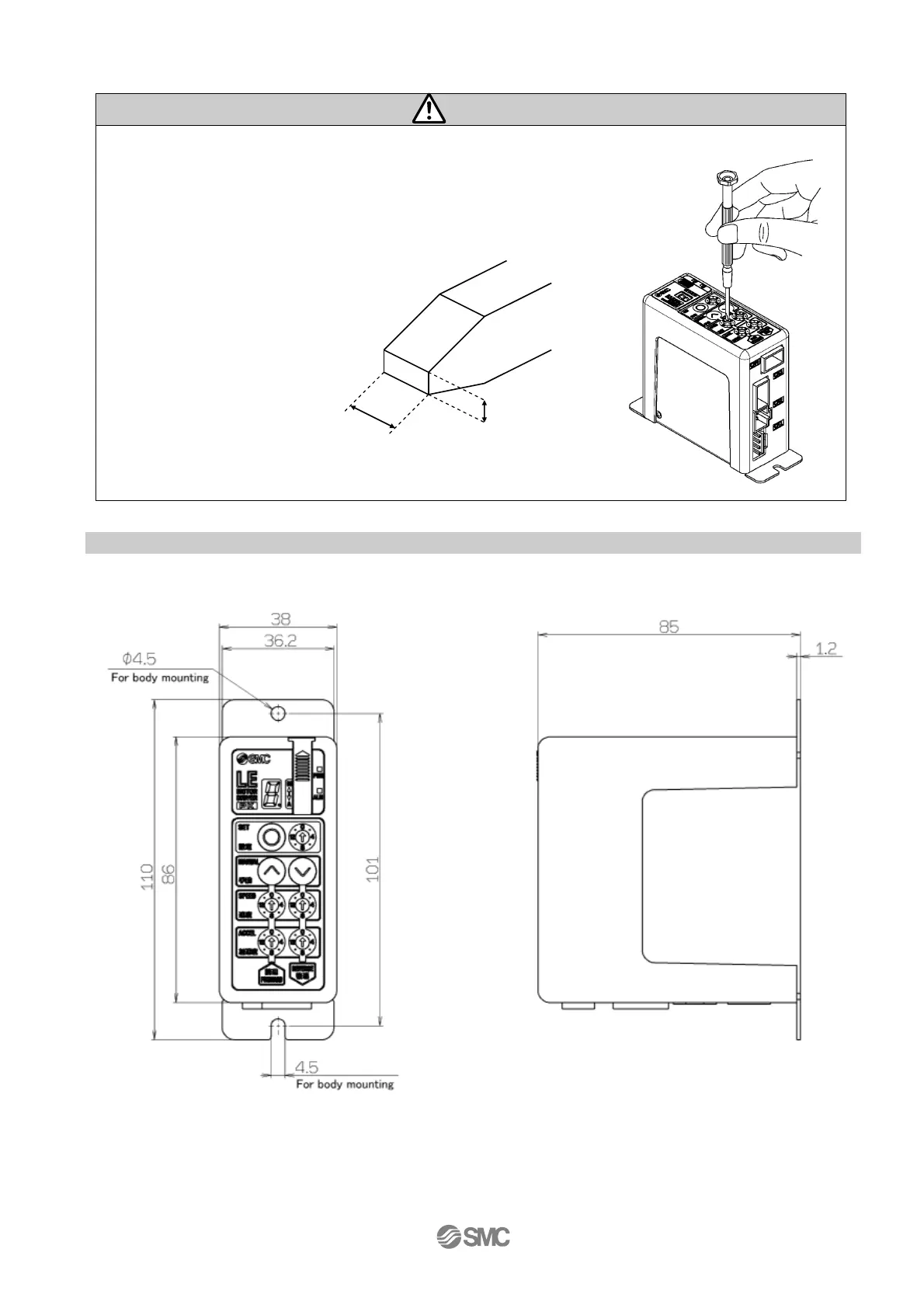

3.3 Outer dimensions
The appearance of the product is shown below.
(1)Mounting screw （LECP1□□－□）
L
W
